LM-802UFE-P
The LM-802UFE-P is a small LANMUS unmanaged PoE switch, intended to provide both data and power over a single cable. It is primarily applied in surveillance systems, small networks, and small IT systems where configuration is not needed. The switch combines several devices (IP cameras or access points) and provides a steady communication state, as well as simplifying installation.
Lanmus Ethernet Managed (LM-802UGP)
Standard Unmanaged 8GE+2GE 1000M POE Switch, 120w inbuilt Power Supply
8 downlink 10/100/1000Base-T PoE Ethernet ports, 2 uplink 10/100/1000Base-T Ethernet uplink ports
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Hightlight Features
- Product Category: Unmanaged PoE Ethernet Switch
- Model: LM-802UFE-P
- Port Configuration: 8 × 10/100/1000Base-T PoE downlink ports + 2 × 10/100/1000Base-T uplink ports
- Total Ports: 10 Ports (8 PoE + 2 Uplink)
- PoE Support: IEEE 802.3af/at compliant
- Maximum PoE Power per Port: Up to 30W
- Total PoE Budget: 120W
- PoE Power Pins: 1/2 (+), 3/6 (-)
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Switching Method: Store-and-Forward
- MAC Address Table: 4K
- Buffer Memory: 1.5M
- Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab
- Protection: 6KV lightning protection with ESD protection
- Operating Temperature: -20°C to 55°C
- Power Supply: DC 52V / 1.25A
- Power Consumption: <5W (excluding PoE load)
- Dimensions: 195mm × 130mm × 40mm
- Installation Type: Desktop / Compact deployment
- Warranty: 3 Years
Key Specification
Key Specifications
Product Information
| Product Category | Unmanaged PoE Switch |
| Hardware Specifications | 8GE+2GE |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 0 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 10 (8 PoE + 2 Uplink) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply and Consumption
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 (IEEE 802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | 120W |
| PoE power pins | 1/2(+), 3/6(-) End-span |
System Specifications
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps |
Environment and Reliability
| MTBF | >50,000 hours |
| Operating temperature | -20°C to 50°C |
| Altitude | Up to 5000m |
| Surge protection | 6KV (Lightning), 8KV (Air ESD) |
Software Specifications
| PoE watchdog | Supported |
| Jumbo frame length (MTU) | 10K |
Security
| Port isolation | Supported (One-key VLAN) |
| Broadcast storm control | Supported |

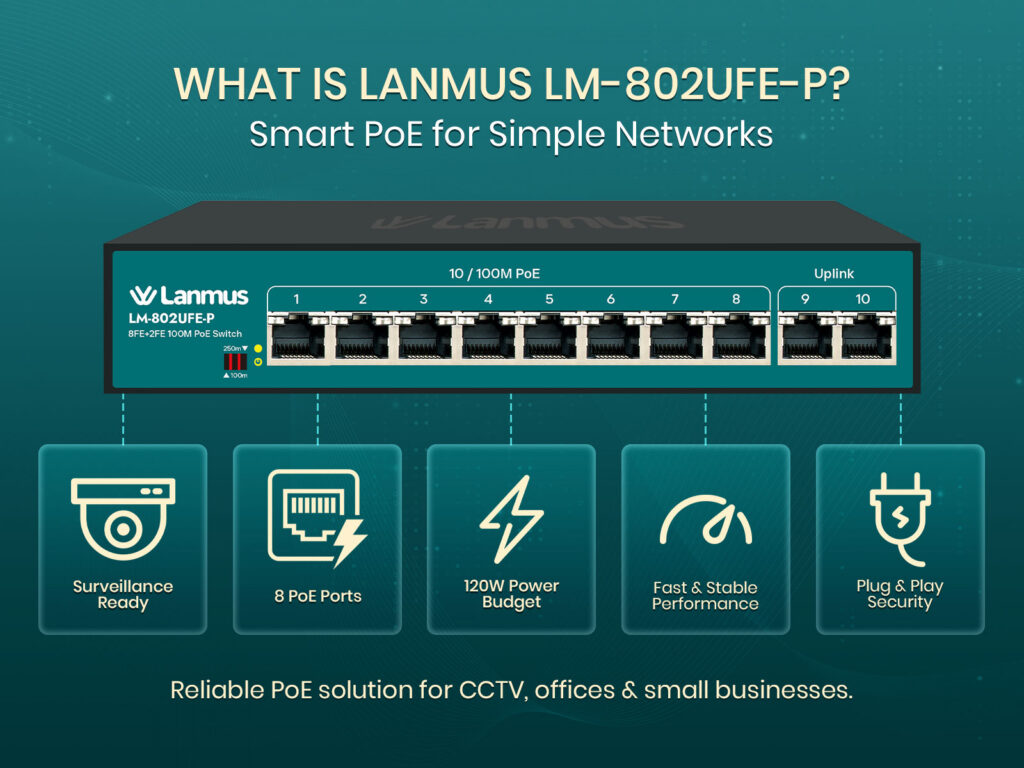

What is LANMUS LM-802UFE-P?
The LM-802UFE-P is a small LANMUS unmanaged PoE switch, intended to provide both data and power over a single cable. It is primarily applied in surveillance systems, small networks, and small IT systems where configuration is not needed. The switch combines several devices (IP cameras or access points) and provides a steady communication state, as well as simplifying installation.
Key Features
Built for CCTV and Surveillance Networks
The LANMUS LM-802UFE-P switch is specially created to meet the high-definition surveillance systems. It provides a hassle-free video transfer and constant connectivity, which is paramount when there are multiple cameras transmitting simultaneously.
8 PoE Ports with Centralized Power Delivery
The switch has 8 PoE-enabled ports to power devices such as IP cameras and wireless access points directly through Ethernet cables. This removes the need for separate power supplies and reduces installation complexity.
Reliable 120W PoE Power Budget
The overall PoE budget of 120W enables the use of multiple devices simultaneously without a lack of power. The port also has the potential to provide up to 30W, allowing it to work with most standard PoE equipment.
Stable Data Transmission Performance
The switch has a switching capacity of 20Gbps and a forwarding rate of 14.88 Mpps, thereby guaranteeing the smooth flow of data. This helps maintain the video streaming with a clear and stable network performance.
Protection Against Electrical Issues
The switch has 6KV lightning protection and ESD protection. This aids in shielding the network against power bursts and unreliable electrical situations, particularly in outside or industrial installations.
One-Key CCTV Mode and VLAN Function
The built-in CCTV mode and VLAN feature help to minimize the network overload and enhance security. It separates traffic and eliminates broadcast storms, which is beneficial in surveillance settings.
Plug-and-Play Deployment
This switch model does not require any configuration. The switch is connected and starts working immediately, which makes it suitable to use when quick installations are to be made, and the technical setup must be minimal.
Real Client Scenario of a Retail Surveillance Setup in Kenya
A Kenyan retail chain was required to have CCTV installed in several outlets. Their primary worry was fast implementation and lowering installation expenses. It was not viable to have separate power lines per camera.
Our team has installed LANMUS LM-802UFE-P in all their locations. The PoE ports were used to directly power all IP cameras, and the uplink ports were used to directly connect each store to the main network. The installation was done at a faster rate, wiring was made easier, and video monitoring was made stable in all outlets. The client could scale up their surveillance system without having to complicate it.
Why Choose LANMUS LM-802UFE-P from SPOLLEX
SPOLLEX will be with you throughout the process, whether you are setting up a surveillance system, small office networks, or remote site deployments. We assist you in choosing the appropriate switch depending on your needs, install it, and make it work smoothly. Our group offers authentic LANMUS products, deployment services, and AMC services. Having availability in the UAE, the Middle East, Africa, Kenya, and Nepal, we promise fast delivery and good service whenever you need it.

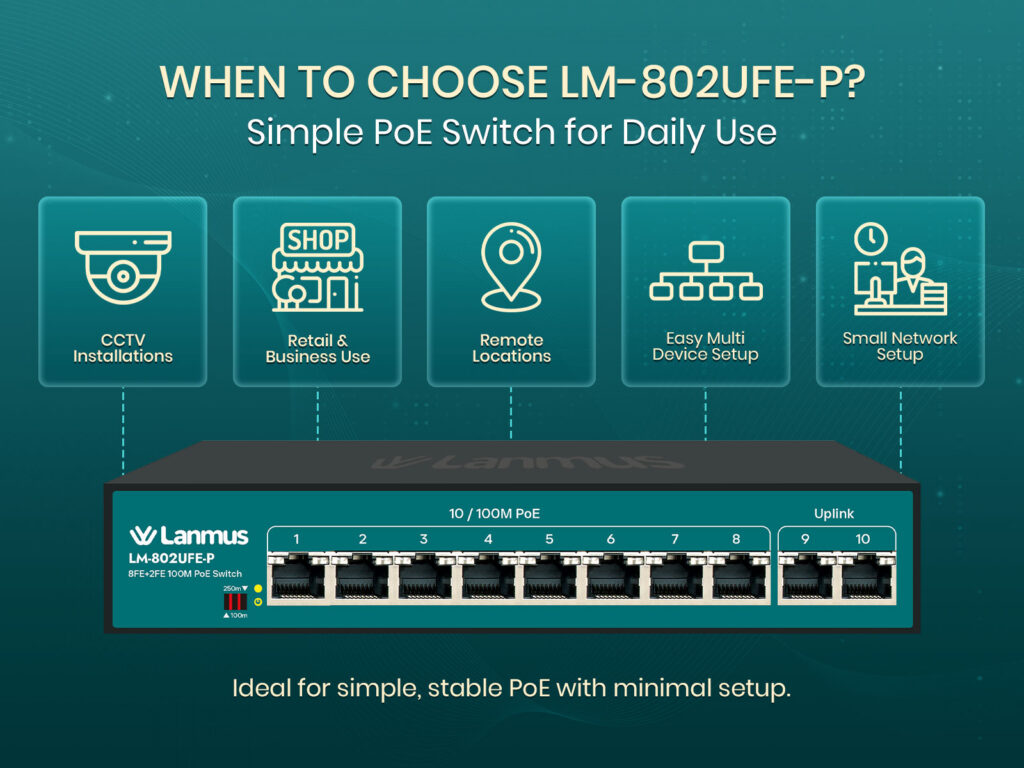

When Should You Choose This Model?
This switch is a decent alternative when you would like to have a simple and reliable PoE solution to serve a small to medium network. It is utilized in CCTV systems, retail outlets, small offices, and distant sites where portability is a factor. It can also be used when you wish to have more than one device connected to a single switch without having to deal with the complex configuration or network administration.
Frequently Asked Question (FAQ)
This switch is mainly designed for small networks and surveillance systems. It is useful in situations that require power and connectivity of multiple IP cameras, access points, or VoIP devices. It is usually found in retail outlets, offices, and security installations.
No, it is an unmanaged switch with a plug-and-play feature. However, it will start functioning as soon as it is connected without any setup, which makes it ideal for quick deployments and non-technical users.
The switch has a total of 8 PoE ports, which means that it is capable of powering up to 8 devices at once. It has a total power budget of 120W and can handle standard PoE devices like IP cameras and access points efficiently.
Yes, the switch is capable of high-definition video transmission. Its stable forwarding performance ensures smooth video streaming without interruptions or lag.
It has 6KV lightning protection and ESD protection. These characteristics assist in protecting the switch and other connected devices against electrical surges and unstable conditions.
A PoE port is capable of supplying 30W of power. Most IP cameras, wireless access points, and VoIP devices in typical deployments are adequately supported by this.
Yes, it can comfortably work in other environmental conditions with its protection features and range of operating temperature of -20°C to 55° C.
Yes, SPOLLEX offers all the support, such as product choice, installation instructions, and after-maintenance services. We make sure that the switch works properly within your network to use in the long term.
