52-Port Managed Switch
High-density fiber aggregation, failover in sub-seconds, and wire-speed Layer 3 routing are required for modern enterprise backbone networks, metro surveillance hubs, and industrial automation facilities. Standard copper-based or Layer 2 access switches can find it difficult when applying complex multi-VLAN distribution, long-distance optical links, and dynamic routing protocols such as RIP and OSPF on campus networks. The LANMUS LM-4804XS-SFP+L3 overcomes these enterprise networking challenges by combining 48 Gigabit SFP optical slots, 4 ultra-fast 10G SFP+ fiber uplinks, Layer 3 dynamic routing, sub-20ms ERPS ring self-healing support, and AC+DC dual power redundancy into a tight, 1U rackmount chassis.
managed Switch
LM-4804XS-SFP+L3

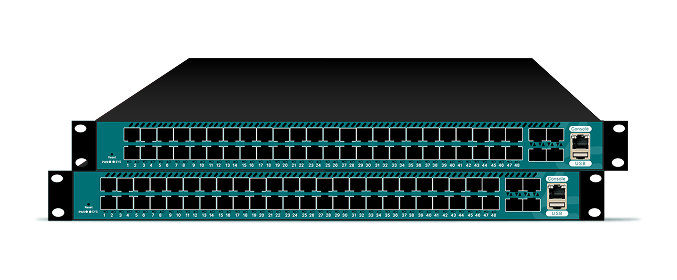

Manufactured by LANMUS and available worldwide through SPOLLEX, the LM-4804XS-SFP+L3 is an industrial-grade, high-performance optical aggregation engine for network engineers, IT directors, and system integrators in Dubai, the Middle East, Africa, Kenya, Nepal, and worldwide.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Core Specifications
- Product Category: L3 Managed Industrial Ethernet Fiber Switch
- Model: LM-4804XS-SFP+L3
- Fixed Fiber Ports: 48 × 100/1000 Base-X SFP Optical Slots
- High-Speed Uplink Slots: 4 × 1/10G Base-X SFP+ Fiber Slots
- Console Port: 1 × RS232 Console Port
- Switching Capacity: 176 Gbps
Key Specifications
Product Information
| Product Category | Unmanaged Gigabit PoE Switch |
| Hardware Specifications | 16GE PoE + 2GE RJ45 Uplink + 2GE SFP Uplink |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 2 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 2 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 18 (16 PoE + 2 RJ45 Uplink) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply and Consumption
| Power Supply and Consumption | 52V/3.8A External Power; <15W |
| Number of PoE Out ports | 16 |
| Number of PoE/PoE+ Out ports | 16 (IEEE 802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | 260W |
| PoE power pins | 1/2 (+), 3/6 (-) End-span |
System Specifications
| Forwarding rate | 28 Mpps |
| Switching capacity | 40 Gbps |
Environment and Reliability
| MTBF | Not Specified |
| Operating temperature | -20°C to 55°C |
| Altitude | Not Specified |
| Surge protection | 6KV Lightning Protection, Advanced ESD Surge Resilience |
Software Specifications
| PoE watchdog | Supported |
| Jumbo frame length (MTU) | 10K |
Security
| Port isolation | Supported (One-key VLAN) |
| Broadcast storm control | Supported |
Product Comparison
Downstream
Ports
4*10/100/1000Base-T (PoE)
8*10/100/1000Base-T (PoE)
16*10/100/1000Base-T (PoE)
24*10/100/1000Base-T (PoE)
Uplink Ports
2*10/100/1000Base-T
2*10/100/1000Base-T
2*10/100/1000 Base-T RJ-45；1*1000 Base-X SFP
2*10/100/1000 Base-T RJ-45；1*1000 Base-X SFP
Network
Standard
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
Switch Capacity
12Gbps
20Gbps
38Gbps
54Gbps
Throughput
8.93Mpps
14.88Mpps
28Mpps
40.176Mpps
Switch
Processing
Scheme
Store and Forward
Store and Forward
Store and Forward
Store and Forward
Memory Buffer
1M
1.5M
4M
4M
MAC Table
2K
4K
8K
8K
PoE Standard
802.3af/at(PSE)
802.3af/at(PSE)
802.3af/at(PSE)
802.3af/at(PSE)
PsE Type
End-span
End-span
End-span
End-span
Power Pin
Assignment
1/2( +)，3/6(-)
1/2( +)，3/6(-)
1/2( +)，3/6(-)
1/2( +)，3/6(-)
PoE Power
Output
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
PoE Total Power
65w
120w
260w
360W
Lightning
protection
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
ESD
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
Power Supply
DC:52V1.25A
DC 52V2.3A
52V/3.8A
52V/5.76A
Power
Dissipation
＜5w
＜5w
＜15w
＜20W
Work
temperature
-20℃~55℃
-20℃~55℃
-20℃~55℃
-20℃~55℃
Storage
temperature
-20℃~75℃
-20℃~75℃
-20℃~75℃
-20℃~75℃
Humidity(Noncondensin)
5%-95%
5%-95%
5%-95%
5%-95%
Dimension（ L
×W × H ）
195mm×130mm×40mm
195mm×130mm×40mm
310mm*210mm*44mm
310mm*210mm*44mm
Regulator
CE, FCC, ROHS
CE, FCC, ROHS
CE, FCC, ROHS
CE, FCC, ROHS
6-port 10/100/1000M PoE Ethernet switch
1 unit
1 unit
1 unit
1 unit
power line
1 article
1 article
1 article
1 article
User Guide
1 book
1 book
1 book
1 book
Warranty Card
1 Sheet
1 Sheet
1 Sheet
1 Sheet
What is the LANMUS LM-4804XS-SFP+L3?
The LANMUS LM-4804XS-SFP+L3 is a 52-port, Layer 3 managed industrial Ethernet fiber switch designed for high-density optical access and core aggregation. It features 48 dedicated Gigabit SFP fiber modules and 4 ultra-fast 10G SFP+ optical uplink modules that enable service providers and system integrators to combine multiple optical links from remote edge switches, IP cameras, or industrial nodes into a single 10-Gigabit core.
The switch offers non-blocking full wire-speed traffic handling with a powerful switching architecture of 176 Gbps and a forwarding rate of 131 Mpps. The LM-4804XS-SFP+L3 supports full L3 routing functions, such as dynamic RIPv1/v2 protocol support and OSPFv2 protocol support in addition to IPv4/IPv6 static routing. The switch is designed to withstand the rigors of some of the toughest environments, such as intelligent transportation, rail transport, green energy, mining, and smart cities, with AC+DC dual redundant power inputs and an IP40-rated aluminum alloy chassis.
Key Features
1. Ultra-High Density Fiber Aggregation with 10G Uplinks
The LM-4804XS-SFP+L3 is a large concentration point that provides 48 Gigabit SFP slots and 4 dedicated 1/10G SFP+ uplink ports. Network architects can now link field nodes that are separated by as much as 120km with a single-mode (up to 120km) or multi-mode fiber transceiver with no need for an extra copper-to-fiber media converter.
2. Full Layer 3 Routing Engine (RIPv1/v2 & OSPFv2)
The switch offers high-speed hardware-based Layer 3 packet forwarding. By supporting dynamic RIP and OSPFv2 routing protocols as well as 128 IPv4/IPv6 static route entries, inter-VLAN routing and subnet traffic management occur locally on the switch. This minimizes unnecessary backhaul traffic to core routers and optimizes network latency.
3. Industrial ERPS Sub-20ms Ring Self-Healing
The LM-4804XS-SFP+L3 supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) for lines that are critical for communication. All ports can be in chain, ring or star topologies. It takes less than 20 milliseconds for the network to reconnect if a fiber cable is cut. STP/RSTP/MSTP spanning tree protocols are also supported.
4. AC+DC Dual Redundant Power Inputs
It has a redundant power system to ensure uninterrupted operation in industrial & utility applications, with both AC (100-240V) and DC (36V~72V) power feeds. The secondary source power will take over the load of the primary power source if the primary power source fails or if an outage occurs.
5. Multi-Layer Security & Traffic Shielding
The LM-4804XS-SFP+L3 delivers powerful protection against unauthorized access to the network and attacks. Security features include 802.1X port authentication, 802.1X MAC authentication, 256 time-based ACL policies, Denial of Service (DoS) attack protection, TACACS/TACACS+ and DHCP Snooping with Option 82 binding.
6. Industrial-Grade Reliability & Fanless Design
Built inside an aluminum alloy shell for optimal thermal dissipation, the fanless design reduces mechanical wear and noise while preventing dust accumulation. Reinforced with 6KV lightning protection, ±15kV air ESD immunity, and anti-vibration/shock compliance (IEC60000-2 series), the switch operates dependably between -20°C and +55°C.
Performance & Real-World Behavior
Project: The Regional Expressway Traffic Monitoring & Toll Trunk Network (RETTN) in East Africa project was for the Regional Expressway Traffic Monitoring & Toll Trunk Network (RETTN) in East Africa.
Challenge: A highway authority needed an optical backbone that spanned 80 kilometers of highway to link roadside emergency phone stations, toll stations, and variable message signs. The requirements were for a high port-density optical aggregation switch with dynamic routing, high-level ESD/surge protection, and sub-20ms ring redundancy over long-haul fibre links.
Solution: Our engineering team deployed the LANMUS LM-4804XS-SFP+L3 at main highway control centers.
- Optical Aggregation: Using 48 SFP optical ports fitted with 40km single-mode transceivers, the switch concentrated all roadside fiber nodes into a single central hub.
- Dynamic Routing & Redundancy: OSPF routing managed traffic paths across toll plazas, while G.8032 ERPS provided ring recovery in under 20ms during unexpected line breaks.
- Industrial Hardening: The IP40 aluminum alloy shell, 6KV lightning protection, and AC+DC dual power supplies ensured reliable operation during severe equatorial thunderstorms and grid fluctuations.
Typical Deployment Scenarios
Substation & Power Utility Optical Backbone
The communications network in a power transmission system must be able to be immune to high electromagnetic interference (EMI), and long distances must be optical. The LM-4804XS-SFP+L3 is an aggregation core that receives fiber feeds from up to 48 local field switches via single-mode SFP modules from high-voltage yards. It is equipped with dynamic path routes, using OSPF routing, and has dual power inputs with AC+DC, providing power station switchover integrity.
Citywide Fiber IP Surveillance Trunk
Municipal surveillance systems aggregate thousands of high-definition camera feeds over optical lines. With 48 SFP slots and 4 10G SFP+ uplinks, the LM-4804XS-SFP+L3 consolidates optical feeds from multiple regional ring switches. IGMP v1/v2/v3 Snooping and Multicast VLAN features ensure smooth video streams without broadcast flooding, while 10G SFP+ ports forward combined video streams directly to central NVR storage arrays.
When Should You Use the LANMUS LM-4804XS-SFP+L3?
The LANMUS LM-4804XS-SFP+L3 is a model for high-performance enterprise and industrial network solutions. This model is suitable for use in a design where the following features are required:
- High-density optical fiber aggregation (up to 48 SFP fiber channels in 1U).
- High-speed 10G SFP+ optical trunk links to main core networks or data centers.
- Layer 3 dynamic routing (OSPF, RIP) directly at the aggregation layer.
- Long-distance optical loop ring failover recovery under 20ms.
- Mission-critical power backup with dual AC and DC power input.
It is used worldwide in smart city surveillance, highway toll/traffic control, electrical substations, mining, oil & gas fields, and high-density enterprise campuses in Dubai, GCC Countries, Africa, Kenya, and Nepal.
Why Choose LANMUS LM-4804XS-SFP+L3 from SPOLLEX?
Deploying high-density Layer 3 optical networks requires quality control and mastery of the technology. SPOLLEX is the official global distributor of LANMUS equipment and provides end-to-end networking solutions in Dubai, the GCC, Africa, Kenya, Nepal, and beyond.
There are certain benefits to working with SPOLLEX:
- Genuine Certified Hardware: 100% genuine LANMUS industrial switches certified by a 3-year factory warranty, CE mark, LVD EN62368-1 & RoHS.
- Dedicated Optical Design Assistance: Engineering advice on the selection of SFP/SFP+ optical modules (single-mode/multi-mode, dual/single-fiber WDM), configuration of OSPF/RIP routing, and the setting up of ERPS rings.
- Global Inventory & Rapid Delivery: Express delivery from Middle East and Africa logistics hubs to ensure your major infrastructure projects are on time.
- Complete Technical Support: Full network architecture planning, remote CLI / Web configuration assistance and warranty processing.
Frequently Asked Question (FAQ)
It has 48 Gigabit 100/1000 Base-X SFP optical slots, 4 1/10G SFP+ uplink fiber slots, and 1 RS232 Console port.
Yes. Offers L3 dynamic routing using RIPv1/v2 protocols and OSPFv2 protocols, as well as IPv4/IPv6 static routing and default routing (up to 128 entries each).
The LM-4804XS-SFP+L3 is capable of G.8032 ERPS ring redundancy with a convergence time of less than 20 milliseconds (<20ms). Also has support for standard STP, RSTP, and MSTP
The switch offers a total of 176 Gbps of backplane switching and 131 Mpps of packet forwarding.
Yes. It has AC+DC dual redundant power inputs, AC 100-240V (50/60Hz) and DC 36V~72V, to guarantee the network's continued operation.
It is fanless with low power consumption and is packaged in an aluminum alloy body to achieve the best passive heat dissipation and dust-free running.
The LM-4804XS-SFP+L3 features an IP40-rated aluminum housing, ±15kV air ESD protection, shock/vibration compliant (IEC60068-2 series), and 6KV lightning protection.
Genuine LANMUS switches (such as the LM-4804XS-SFP+L3) are available for immediate ordering from SPOLLEX, the official global distributor in Dubai, the Middle East, Africa, Kenya, Nepal, and international markets.
