LM-802FMGP-IL2
The LM-802FMGP-IL2 is a tough Layer 2 managed switch. It is built for challenging industrial settings. This model is different from easy-managed or office switches. It can run nonstop in extreme heat, dust, vibration, and unstable power conditions.
This switch offers complete Layer 2 management. Engineers and system integrators can easily track traffic, manage ports, and protect industrial networks. It is perfect for industrial CCTV poles, factories, warehouses, outdoor enclosures, and control cabinets in the UAE.
The LM-802FMGP-IL2 is often used in places where network reliability matters. Downtime is not an option. It supports industrial projects that require long-term stability rather than basic plug-and-play networking.
Lanmus Ethernet Managed (LM-802FMGP-IL2)
8 Port 10/100/1000 Base-T PoE ports, 8GE+2SFP Uplink Ports
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Hightlight Features
- Hardware Type: Industrial Layer 2 Managed Switch
- Port Type: 8 × Gigabit Ethernet RJ45 (PoE-supported)
- Layer: Full Layer 2 Management
- PoE Budget: 65W (model-dependent)
- VLAN Support: Advanced VLAN for traffic segmentation
- QoS: Traffic prioritization for CCTV, control systems, and critical data
- Management: Web GUI, SNMP, Industrial monitoring tools
- Security: Port security, traffic control, access filtering
- Mounting Type: DIN-rail / Wall mount
- Operating Temperature: -40°C to +75°C
- Build: Industrial-grade metal housing
- Power Input: Redundant DC power support
- Warranty: 1 to 3 years
Key Specification
Key Specifications
Product Information
| Product Category | Industrial Layer 3 Managed PoE Switch |
Hardware Specifications
| Warranty | 3 years (Standard for all products) |
Port Specifications
| Total number of RJ45 ports | 8 |
| Total number of optical ports | 2 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 (Switch uses 10G SFP+ ports) |
| Number of 10GE SFP+ ports | 2 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 8 |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 (IEEE802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 (PoE++ not supported) |
| PoE budget | 120W |
| PoE power pins | 1/2 (+), 3/6 (-) |
System Specifications
| Forwarding rate | 41.6 Mpps |
| Switching capacity | 56 Gbps |
Environment and Reliability
| MTBF | Not specified in datasheet |
| Operating temperature | -40°C to +80°C |
| Altitude | Not specified in datasheet |
| Surge protection | 6KV |
Software Specifications
| PoE watchdog | Not explicitly listed (Features intelligent PoE detection) |
| Jumbo frame length (MTU) | Not specified in datasheet |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |

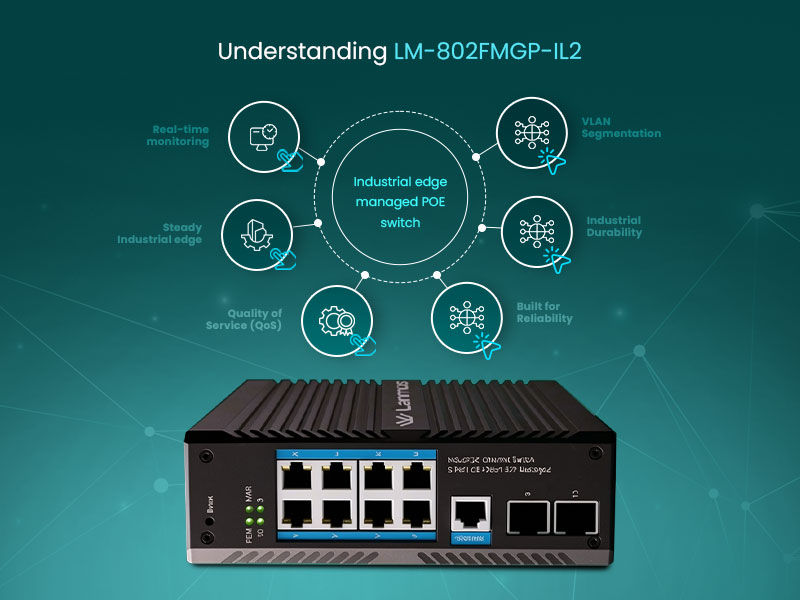

Understanding LM-802FMGP-IL2
The LM-802FMGP-IL2 works as a central control point for small industrial networks. It lets technicians watch ports in real time. They can segment traffic with VLANs. This way, critical systems always get priority bandwidth.
Unlike easy-managed switches, this model is designed for 24/7 industrial operation. It does not focus on simplicity alone. Instead, it focuses on reliability, control, and environmental durability.
Think of it as an industrial edge switch. It stays near machines, cameras, or outdoor devices. This ensures steady communication with the core network.
This model is suitable for:
- Industrial CCTV poles and outdoor cameras
- Small factories and production lines
- Control cabinets and automation panels
- Warehouses and logistics hubs
- Remote industrial sites with heat and dust
- System integrators handling industrial deployments
Key Features
8 Gigabit Industrial Ethernet Ports
Provides stable, high-speed connectivity for industrial cameras, sensors, controllers, and access points.
Industrial-Grade Design
This device has a strong metal case. It can resist heat, dust, vibration, and electrical noise.
Layer 2 VLAN Management
Separates CCTV, machine data, and monitoring systems clearly. This boosts security and performance.
Quality of Service (QoS)
Ensures time-sensitive traffic, such as CCTV streams or control data, always gets priority.
PoE Support for Edge Devices
Sends power and data through one cable. This cuts down on wiring for outdoor cameras and industrial devices.
Redundant Power Input
Keeps the switch active if one power source fails. This is crucial for remote or unmanned sites.
Performance & Real-World Behavior
The LM-802FMGP-IL2 is designed for mission-critical edge deployments rather than office networking. It maintains stable performance even in unstable power and temperature conditions.
Its VLAN and QoS features cut down on extra broadcast traffic. They also help keep industrial systems safe from congestion. This ensures smooth video streaming, reliable machine communication, and continuous network availability.
For system integrators in the UAE, this cuts down service visits. It also boosts long-term project reliability.
Applications & Use Cases
- Industrial CCTV Installations: Outdoor cameras, roadside poles, perimeter security
- Factories & Production Lines: Machine communication and monitoring systems
- Warehouses & Logistics: Cameras, scanners, and access control devices
- Control Cabinets: Compact DIN-rail mounting inside panels
- Remote Industrial Sites: Locations with heat, dust, and limited maintenance access
- System Integrators & EPC Projects: Small industrial edge deployments

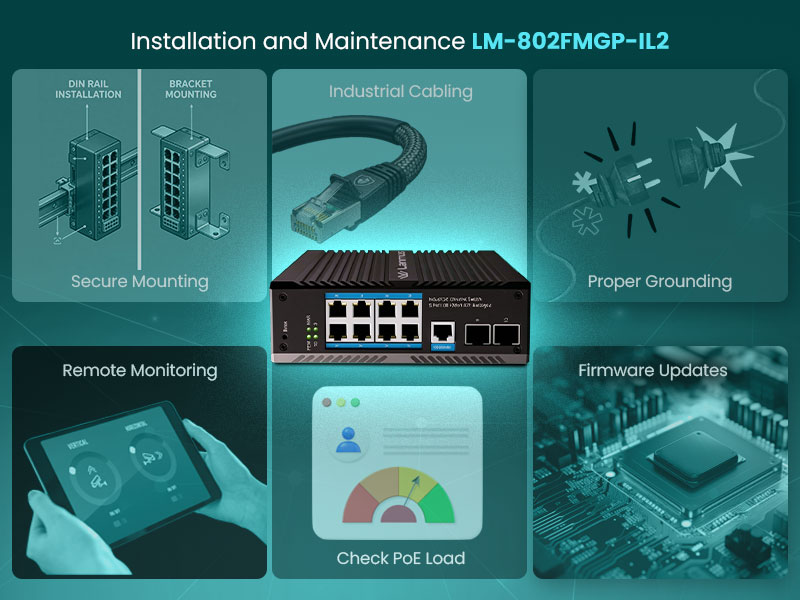

Installation & Maintenance Tips
- Mount securely using DIN-rail or wall brackets
- Use industrial-grade Ethernet cables
- Ensure proper grounding to avoid electrical interference
- Monitor port status and temperature remotely
- Check PoE load before connecting multiple devices
- Keep firmware updated for long-term stability

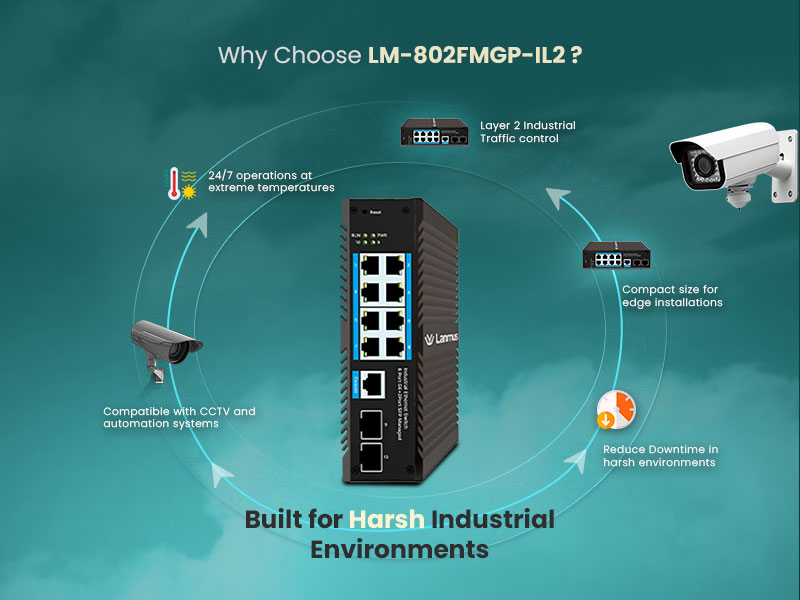

Why Choose LM-802FMGP-IL2
- Designed specifically for harsh industrial environments
- Reliable 24/7 operation at extreme temperatures
- Full Layer 2 control for industrial traffic management
- Compact size for edge and cabinet installations
- Reduces downtime in outdoor and factory networks
- Fully compatible with industrial CCTV and automation systems
- Trusted LANMUS build quality and UAE support
Availability in UAE – Order LM-802FMGP-IL2 from LANMUS
The LM-802FMGP-IL2 Industrial Managed Switch is available at LANMUS. It’s ideal for industrial projects in Dubai and the UAE. LANMUS offers reliable stock and support. Whether you need one outdoor CCTV pole or many for a factory, we’ve got you covered.
Contact: [email protected],
Support: Project guidance, bulk pricing, and system integrator assistance
Features
Product Comparision
24 *10/100/1000 PoE BaseT
4*100/1000Base-X
PoE ports
Max. PoE budget
Switching capacity
Forwarding rate
MAC address table
VLAN
Dimensions (W x D x H)
Weight (With package)
Loop prevention
Flow control
Port isolation
Broadcast storm suppression
Cloud management
Power consumption
Power supply
Fan
Port surge
Operating temperature
Operating humidity
MTBF
Warranty
LM-2404FMGP-L2
24
4
4
--
56Gbps
8K
--
440mm* 300mm*44mm
--
--
AC:100-240V50/60Hz)
--
-20~+55°C
5%~90% RH
--
3 years
LM-4804XFMGP-L3
48
4
4
--
176Gbps
32K
--
440mm* 300mm*44mm
--
--
AC100-240V 50/60Hz
--
-20~+55°C
5%~90% RH
--
3 years
Product Comparison
LM-802FMGP-IL2
LM-1608C4XMGP-IL3
LM-2404XMGP-IL3
Interface Characteristics
Fixed Port
8 Port 10/100/1000 Base-T PoE ports, 8GE+2SFP Uplink Ports
16 Port 10/100/1000 Base-T, 16GE + 8Combo + 4 10G SFP+
24 Port 10/100/1000 Base-T, 24GE + 4 10G SFP+
Ethernet Port
Port 1-8 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Port 1-16 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Port 1-24 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
Optical Fiber Port
1G SFP optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Fiber Port Expansion
Support Turbo overclocking 2.5G optical module expansion and ring network
Support Turbo overclocking 2.5G optical module expansion and ring network
Support Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance
Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G); Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.
Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G); Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.
Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G); Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.
Chip Parameter
Network Management Type
L2
L3
L3
Ring network
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100BaseTX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100BaseTX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100BaseTX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Store and Forward(Full Wire Speed)
Store and Forward(Full Wire Speed)
Switching Capacity
56Gbps
128Gbps
128Gbps
Buffer Memory
41.6Mpps
96Mpps
96Mpps
MAC
16K
32K
32K
Reset Switch
Yes, Press and hold the reset switch for 5s and release it to restore the factory settings
Yes, Press and hold the reset switch for 5s and release it to restore the factory settings
Yes, Press and hold the reset switch for 5s and release it to restore the factory settings
Power
Power Supply Pin
Default 1/2 (+), 3/6 (-)
Default 1/2 (+), 3/6 (-)
Default 1/2 (+), 3/6 (-)
Max Power Per Port
15.4w per port, with a maximum power of 30w per port
15.4w per port, with a maximum power of 30w per port
15.4w per port, with a maximum power of 30w per port
Total PWR
12W
450w
450w
Power Supply
DC 52V/2.3A
AC100-240V 50/60Hz
AC100-240V 50/60Hz
Certification & Warranty
Lightning Protection
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard)
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard)
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard)
Mechanical Properties
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
Certification
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
Physical Parameter
Operation TEMP /Humidity
-40~+80°C, 5%~90% RH Non condensing
-40~+80°C, 5%~90% RH Non condensing
-40~+80°C, 5%~90% RH Non condensing
Storage TEMP /Humidity
-40~+85°C, 5%~95% RH Non condensing
-40~+85°C, 5%~95% RH Non condensing
-40~+85°C, 5%~95% RH Non condensing
Dimension (L*W*H)
172mm* 145mm*55mm
440mm* 300mm*44mm
440mm* 300mm*44mm
Installation
Desktop, DIN rail
Desktop, 19 inch 1U cabinet installation
Desktop, 19 inch 1U cabinet installation
Network Management Features
L3 Function
Support L2 network management function Supports IPV4 dynamic routing RIPv1/v2、0SPFv2 Supports IPV4/IPV6 static routing/default routing, each supporting a maximum of 128 entries Supports three-layer routing forwarding, supports communication between different network segments and VLANs
Support L3 network management function Supports IPV4 dynamic routing RIPv1/v2、0SPFv2 Supports IPV4/IPV6 static routing/default routing, each supporting a maximum of 128 entries Supports three-layer routing forwarding, supports communication between different network segments and VLANs
Support L3 network management function Supports IPV4 dynamic routing RIPv1/v2、0SPFv2 Supports IPV4/IPV6 static routing/default routing, each supporting a maximum of 128 entries Supports three-layer routing forwarding, supports communication between different network segments and VLANs
Port configuration
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Link Aggregation
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
MAC Table
Aging Time Static MAC address Dynamic MAC address management
Aging Time Static MAC address Dynamic MAC address management
Aging Time Static MAC address Dynamic MAC address management
VLAN
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
ACL
256ACLs L2, L3 e L4 Time-based ACL
256ACLs L2, L3 e L4 Time-based ACL
256ACLs L2, L3 e L4 Time-based ACL
Spanning tree
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
Ring Protection
<20ms G.8032 ERPS Ring
<20ms G.8032 ERPS Ring
<20ms G.8032 ERPS Ring
Multicast
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
QOS
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
DHCP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
Security Features
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port IsolationLoopback detection
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port IsolationLoopback detection
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port Isolation Loopback detection
Other Features
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
Maintenance
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Product Resources
- Download Product Datasheet
Order Informations
Device

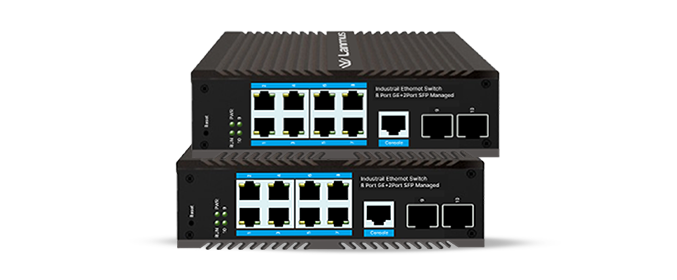

LM-802FMGP-IL2
Power Supply
DC 52V/2.3A
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
172mm* 145mm*55mm
Frequently Asked Question (FAQ)
The LM-802FMGP-IL2 is built for industrial environments, not offices. It supports extreme temperatures, industrial power inputs, and continuous operation. Easy-managed switches prioritize simplicity. In contrast, this model emphasizes durability, reliability, and long-term control.
Yes. It’s made for outdoor and semi-outdoor setups like CCTV poles and roadside cabinets. Its temperature range and PoE support make it ideal for powering and managing IP cameras in harsh conditions.
Yes. The switch is designed for 24/7 operation using industrial-grade components. It offers redundant power and a high MTBF. This makes it ideal for remote or unmanned sites.
No. While it offers full Layer 2 features, it uses a clear web-based interface and SNMP tools. Industrial technicians and system integrators can manage it without complex enterprise configurations.
This model is perfect for system integrators, industrial vendors, and businesses. It’s a small, rugged managed switch. Use it for edge deployments, outdoor CCTV, or factory settings.
