LM-S7054-48X6H
The LANMUS LM-S7054-48X6H extreme switch is a high-performance L3 managed switch that is designed to support enterprise and data center networks. It supports 48 SFP+ ports for 1G/10G connections and 6 QSFP28 ports for 40G/100G uplinks. Furthermore, it can operate continuously with the full L2/L3 wire-speed forwarding, IPv6 support, and hot-swappable dual power supplies. Moreover, this switch is the best one to link up various high-speed servers, storage facilities, and uplinks in a place that requires reliability and low latency.
Lanmus Ethernet Managed
(LM-S7054-48X6H)
L3 Managed Ethernet Switch

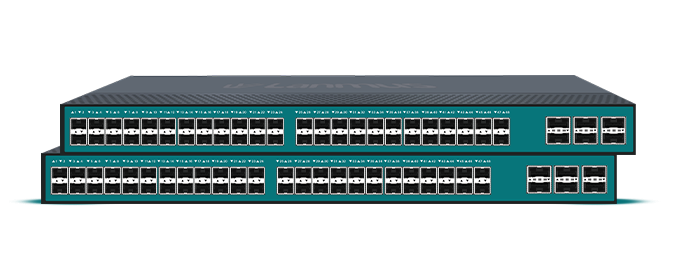

The LM-S7054-48X6H switch is a high-performance 10G fiber switch developed by our company. It features advanced hardware design and a hot-swappable power supply for redundancy. This switch supports up to 48×1G/10G SFP+ ports, along with 6×40GE/100GE QSFP 28 uplink ports. It offers full-port L2/L3 wire speed forwarding, IPv6 support, and a range of business features, including ACL policies and network security. The LM-S7054-48X6H provides the highest 10 Gigabit port density and maximum switching capacity in its class, supporting wire speed forwarding on all ports. It also accommodates flexible access for both 10GE and 100GE connections and automatically recognizes the type of optical module installed, maximizing user investment protection and ensuring flexibility.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Hightlight Features
- Product Category: L3 Managed Ethernet Switch
- Model: LM-S7054-48X6H
- Hardware Specification: 48 × 1G/10G SFP+ + 6 × 40G/100G QSFP28
- Switching Layer: L2/L3 Managed Switch with IPv6 support
- Port Configuration: 48 × 1G/10G SFP+ optical ports + 6 × 40G/100G QSFP28 uplink ports + 1 × 10/100/1000BASE-T management port
- Console & USB Ports: 1 × Console port + 1 × USB port
- Forwarding Rate: 1607 Mpps
- Switching Capacity: 2.16 Tbps
- Port Features: Ports 1-48 auto-sensing 1G/10G, full-duplex support
- Jumbo Frame Length (MTU): 12K
- Hot-Swappable Power Supply: Dual redundant power
- Security Features: Port isolation supported, Broadcast storm control supported.
- Surge Protection: 6KV
- Operating Temperature: 0°C to 45°C
- Altitude Support: Up to 5000 meters
- Warranty: 3 Years
- Performance Feature: Full L2/L3 wire-speed forwarding.
Key Specification
Key Specifications
Product Information
| Product Category | L3 Managed Ethernet Switch |
| Hardware Specifications | 4810GE SFP+ and 6100GE QSFP28 |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 54 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 48 (Compatible with SFP+) |
| Number of 10GE SFP+ ports | 48 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 1 (Management port) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE Out ports | 0 |
| Number of PoE/PoE+ Out ports | 0 |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | N/A |
| PoE power pins | N/A |
System Specs
| Forwarding rate | 1607 Mpps |
| Switching capacity | 2.16 Tbps |
Environment
| Operating temperature | $-20^{\circ}C$ to $+55^{\circ}C$ |
| Surge protection | 6KV |
| Humidity | 5% – 95% |
Software Specifications
| PoE watchdog | N/A |
| Jumbo frame length (MTU) | 12K |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |

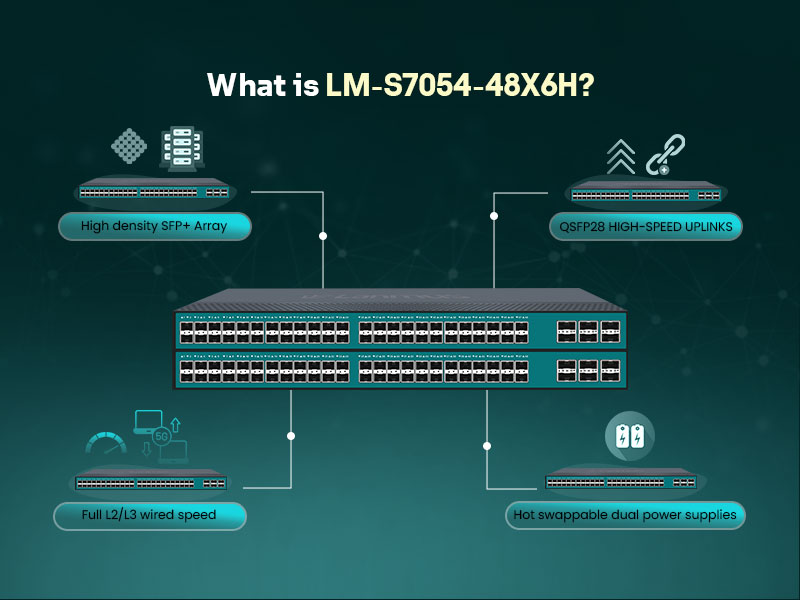

What is LANMUS LM-S7054-48X6H?
The LANMUS LM-S7054-48X6H extreme switch is a high-performance L3 managed switch that is designed to support enterprise and data center networks. It supports 48 SFP+ ports for 1G/10G connections and 6 QSFP28 ports for 40G/100G uplinks. Furthermore, it can operate continuously with the full L2/L3 wire-speed forwarding, IPv6 support, and hot-swappable dual power supplies. Moreover, this switch is the best one to link up various high-speed servers, storage facilities, and uplinks in a place that requires reliability and low latency.
Key Features
High-Density Optical Connectivity
With 48 SFP+ ports, the LM-S7054-48X6H can connect dozens of servers and storage devices without additional hardware. This simplifies cabling, reduces hardware costs, and makes network management easier in enterprise and data center environments.
High-Capacity Uplink Ports
The 6 QSGP28 uplinks offer 40G/100G connectivity to support the aggregation or core layers. This guarantees a rapid and reliable connection among switches that reduces congestion and sustains large traffic volumes.
Dual Redundant Power Supply
Hot-swappable dual power supplies provide continuous operation even during maintenance or in case of a power failure. This feature is essential for mission-critical environments where data failure can affects a organization’s operations.
Advanced L2/L3 Management
The advanced L2/L3 of LANMUS LM-S7054-48X6H supports VLANs, routing, IPv6, and traffic management. The features assist in separating traffic, enhancing performance, and ensuring security throughout the network.
Industrial-Grade Reliability
Built to operate reliably in data centers and enterprise environments, this switch supports 6KV surge protection with full-duplex auto-sensing ports capabilities and high MTBF (>100,000 hours), which ensures stability and durability under heavy traffic loads.
Real Business Use Case (Field Experience)
MYISP Limited is a large ISP provider based in Nairobi, Kenya, which experienced slow inter-department data transfer and constant congestion between its servers and storage arrays. Our SPOLLEX engineering unit assessed the network and implemented the LM-S7054-48X6H in the center. The outcome was as instant as the uplinks to data storage were to be stable, and the network management with VLAN segmentation was made easier. The availability of two redundant power supplies and hot-swappable modules ensured continuous operation even during maintenance, which demonstrated the reliability of the switch in a practical high-demand setting.
Why Choose the LM-S7054-48X6H from SPOLLEX
Being a certified distributor of LANMUS, SPOLLEX provides real products along with support services. LM-S7048V-48X6H, which is best suited to organizations, needs to be fast, reliable, and scalable L3 connectivity. Our team offers pre-sales advice, onsite deployment, configuration, and training of the IT staff. Moreover, our support contracts, as well as AMC, ensure your network works as well as possible in the long run. The UAE, the Middle East, and Africa have a ready stock that can be delivered immediately when there is a need to deploy networking urgently. With SPOLLEX, your enterprise or data center network is guaranteed to be stable, high-performing, and simple to manage initially.
Features
Order Informations
Device
LM-S7054-48X6H
Power Supply
AC: 100~240V; 47/63Hz
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
440×410×44mm 19” Rackmount
Frequently Asked Question (FAQ)
LM-S7054-48X6H is used in high-speed enterprise and data center networks where reliability and speed are important. It is best suited to the connection of servers, storage devices, and aggregation or core layers. Its L3 management services, coupled with high-capacity optical ports, ensure that it is ideal for organizations that require scalable, high-throughput networks.
The switch has SFP+ ports, which provide 48 direct connection points at 1G or 10G. The 6 QSFP28 uplink ports can also be connected to other switches or the network core, and hence it is simple to expand as your network expands. This provides the flexibility for the present and future growth.
No, the LM-S7054-48X6H is oriented in high-speed L3 routing and optical connectivity and not PoE. It is intended to be used in an environment where powering of devices is managed independently, for example, in data center environments or enterprise cores that have dedicated PoE switches as endpoints.
This switch is constructed to support heavy traffic loads with a switching capacity of 2.16 Tbps and a forwarding rate of 1607 Mpps. It guarantees the consistent flow of data even in a large enterprise and a data center environment where there are numerous servers and high-speed storage systems running concurrently.
The LM-S7054-48X6H has 2 hot-swappable power supplies, which also means that the appliance can still operate in the event of maintenance or unforeseen power outages. This redundancy provides for little downtime and helps to serve important business applications that cannot withstand network outages.
Yes, this switch supports IPv6 and has full L2/L3 wire-speed forwarding. It is capable of supporting the complex routing operations of modern enterprise networks at high-speed operations, which makes it applicable to current network standards and future-proof deployments.
The switch is capable of functioning reliably in temperatures ranging between 0°C and 45°C and at an altitude of up to 5000 meters. This renders it appropriate in data centers that are situated in different climatic conditions and elevations, which makes it remain stable despite the extreme conditions.
SPOLLEX provides support for hardware supply in full. Our team offers pre-sales consultancy, network design, on-site deployment, configuration, training of IT staff, and AMC/support contract. This will make sure that your LM-S7054-48X6H switch is efficient and reliable in the long run, and guidance is provided by experts whenever required.
