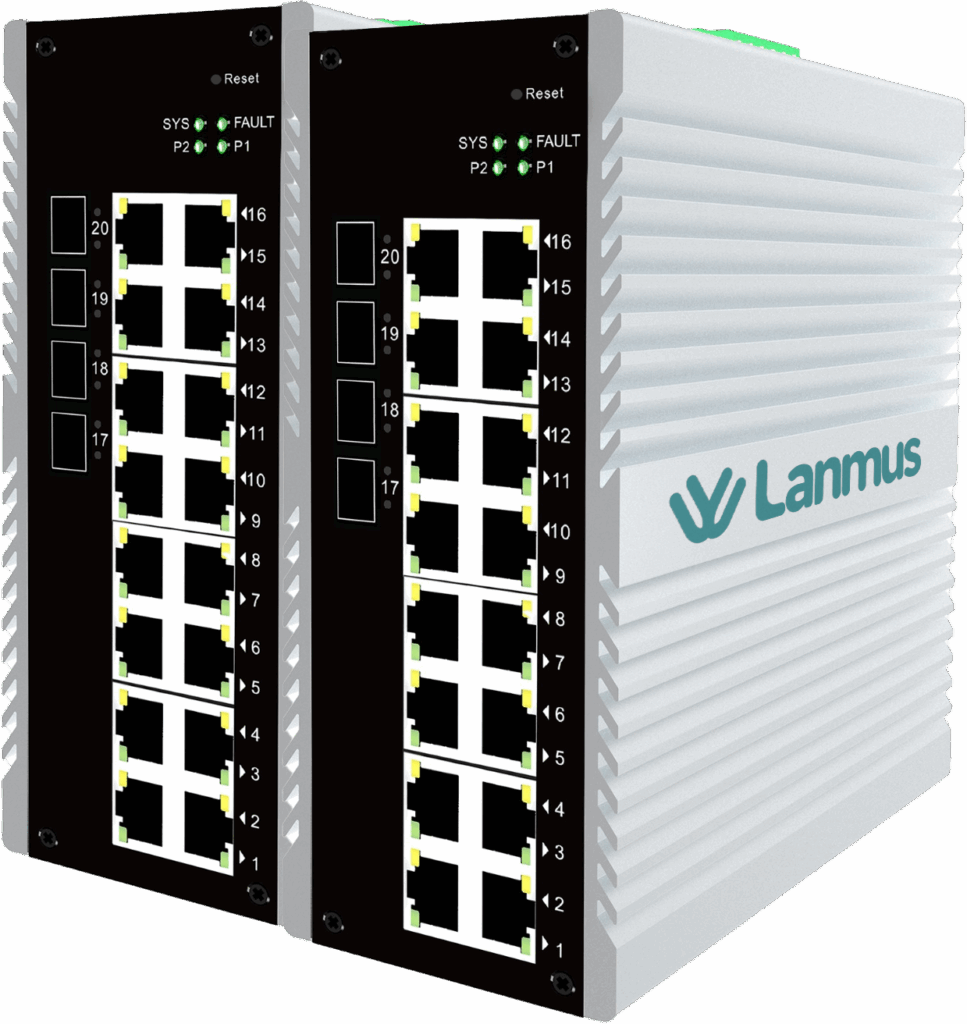

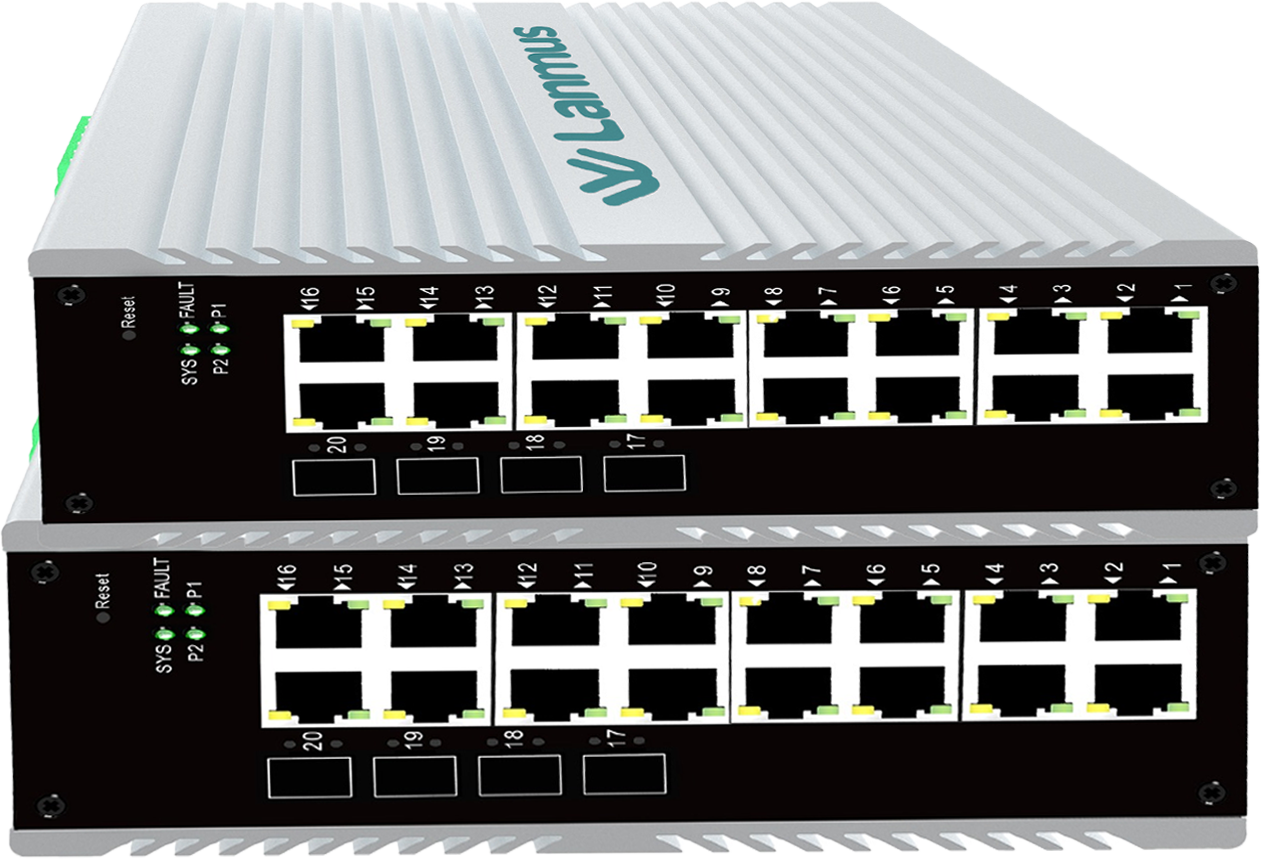

LM1604FMGP-IL2+
The LM-1604FMGP-IL2+ is a managed PoE switch that offers both network connectivity and power from a single device. It also supports data transmission, PoE power delivery, and Layer 2+ network control, making it applicable to structured network environments. This type of switch is commonly placed in the access or aggregation layer, where it connects devices such as IP cameras, wireless access points, and other office systems to the main network, ensuring smooth communication and a stable power supply.
Industrial Ethernet Switch 20-port 10/ 100M / 1000M
Industrial Ethernet Switch 20-port 10/ 100M / 1000M
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Hightlight Features
- Product Category: Full Gigabit L2+ Managed Industrial PoE Ethernet Fiber Switch.
- Model: LM-1604FMGP-IL2+
- Switching Layer: L2+ Managed Switch with IPv4 Static Routing
- Port Configuration: 16 × 10/100/1000Base-T PoE RJ45 ports + 4 × 100/1000Base-X SFP uplink ports
- Optical Ports: 4 × 1GE SFP ports
- Console Port: 1 × RS232 Console port
- PoE Support: 16 × PoE/PoE+ ports, IEEE 802.3af/at
- Total PoE Budget: 240W
- PoE Power Pins: 1/2 (+), 3/6 (-)
- Switching Capacity: 40 Gbps
- Forwarding Rate: 29.7 Mpps
- Network Features: ERPS ring network support with <20ms convergence time.
- Security Features: Port isolation supported, Broadcast storm control supported.
- Surge Protection: 6KV (8/20us)
- Operating Temperature: -40°C to +75°C
- Warranty: 3 Years
- Performance Feature: Stable wire-speed data forwarding with support for industrial environments.
Key Specifications
Product Information
| Product Category | Full Gigabit L2+ managed industrial PoE Ethernet fiber switch |
| Hardware Specifications | |
| Warranty | 3 years |
Port Specifications
| Total number of optical ports | 4 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 4 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 16 |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE Out ports | 16 |
| Number of PoE/PoE+ Out ports | 16 (IEEE802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | 240W |
| PoE power pins | 1/2 (+), 3/6 (-) |
System Specs
| Forwarding rate | 29.7 MPPS |
| Switching capacity | 40 Gbps |
Environment
| MTBF | Not specified in datasheet |
| Operating temperature | $-40^{\circ}C$ to $+75^{\circ}C$ |
| Altitude | Not specified in datasheet |
| Surge protection | 6KV 8/20us |
System Specifications
| PoE watchdog | Not explicitly listed |
| Jumbo frame length (MTU) | Not specified in datasheet |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |

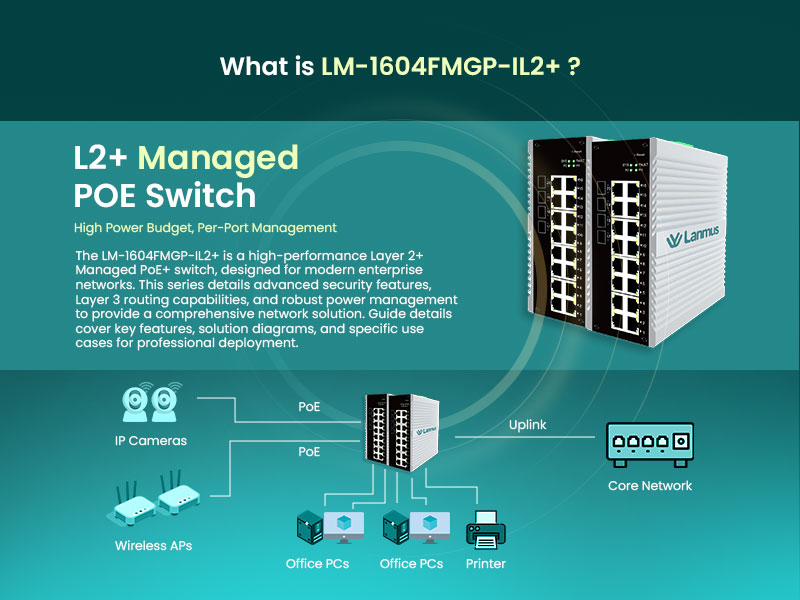

What is LM-1604FMGP-IL2+?
The LM-1604FMGP-IL2+ is a managed PoE switch that offers both network connectivity and power from a single device. It also supports data transmission, PoE power delivery, and Layer 2+ network control, making it applicable to structured network environments. This type of switch is commonly placed in the access or aggregation layer, where it connects devices such as IP cameras, wireless access points, and other office systems to the main network, ensuring smooth communication and a stable power supply.
Key Features
Availability of High Port for Structured Networks
The Lanmus LM-1604FMGP-IL2+ switch has 16 Gigabit PoE ports and 4 SFP uplink ports, which are sufficient in terms of connectivity to medium to large deployments. It assists in linking numerous devices of one unit without any additional switches. This simplifies the network design process and is more manageable, particularly in office floors, surveillance installations, and organized setups.
Reliable PoE Power for Network Devices
With 16 PoE/PoE+ ports and a total power budget of 240W, the Lanmus LM-1604FMGP-IL2+ switch can run several devices at the same time without external power. It supports standard devices such as IP cameras, wireless access points, and VoIP phones. The power delivery remains stable, which is important for continuous functioning in business and security networks of the organization.
Fiber Uplink for Strong Network Backbone
The switch can be connected to the core network by fiber links through the 4 SFP uplink ports. This assists in the sustenance of constant communication over extended distances with increased bandwidth and reduced signal loss. Moreover, it also enhances overall network reliability when connected to aggregation or core switches.
Enhanced control through Layer 2+ Features
This model supports Layer 2+ management features, including VLAN configuration, traffic handling, and simple routing support. Such features help organize the network, control data flow, and enhance security by separating various kinds of traffic within the same infrastructure.
Built for Stable Operation in Tough Conditions
The Lanmus LM-1604FMGP-IL2+ switch supports wide operating temperatures from -40°C to +75°C and includes 6KV surge protection to handle power fluctuations. Moreover, these are designed for real-world environments where stability is important. Furthermore, this allows it to fit well in industrial locations, outdoor applications, and places such as the UAE and the Middle East, where network devices need to operate well without failure.
Real Client Scenario Handled by Our Engineers
A corporate office in Qatar contacted our engineering team after facing network issues with multiple departments and IP cameras. The existing setup could not handle both connectivity and power properly, which caused instability and complex cabling. After reviewing the network, our team deployed the LM-1604FMGP-IL2+ at the access layer to simplify the design. Once implemented, all IP cameras were powered directly through PoE without separate adapters, and office systems started working with stable connectivity. We also configured VLANs to separate department traffic, making the network easier to control and manage. This reduced installation time, cleaned up the cabling, and improved overall network performance.
Why Choose the LM-1604FMGP-IL2+ from SPOLLEX
Spollex is an authorized distributor of LANMUS switches, which ensures you get genuine products along with the right technical support. The LM-1604FMGP-IL2+ extreme switch is a practical choice for environments where multiple devices need to be connected and powered, along with proper network control and fiber uplink support. Our team works closely with you to understand your requirements and design a setup that is simple, scalable, and reliable. From pre-sales planning to on-site installation, configuration, and staff training, we support both project-based and contract-based deployments. With ready stock in Dubai, branch warehouses in the UAE, the Middle East, Nepal, and Kenya, SPOLLEX helps you build a network that works smoothly from day one and continues to perform as your business grows.
Frequently Asked Question (FAQ)
The LM-1604FMGP-IL2+ extreme switch is designed to be used in an organized business network where data and power are needed at the same switch. It is suitable in offices, CCTV surveillance systems, warehouses, and in small to medium enterprises. As it accommodates PoE and fiber uplinks, it is an option to consider when you require the stability of connectivity among several devices without necessarily installing additional hardware.The LM-1604FMGP-IL2+ extreme switch is designed to be used in an organized business network where data and power are needed at the same switch. It is suitable in offices, CCTV surveillance systems, warehouses, and in small to medium enterprises. As it accommodates PoE and fiber uplinks, it is an option to consider when you require the stability of connectivity among several devices without necessarily installing additional hardware.
This switch provides 16 Gigabit PoE ports, which means you can directly connect up to 16 powered devices such as IP cameras, access points, or VoIP phones. Moreover, the SFP uplink ports allow connection to other switches or the core network, making it easy to expand the network when necessary.
Yes, all 16 RJ45 ports support PoE/PoE+ based on IEEE 802.3af/at standards. The total PoE budget is 240W enables multiple devices to operate at the same time. This eliminates the need for separate power adapters and keeps the installation clean and simple.
This model is popular in CCTV applications. It is capable of direct powering of IP cameras and is able to process video data continuously. With stable PoE delivery and consistent data flow, it helps maintain reliable monitoring in security environments.
Fiber connections to the core or aggregation layer go to the 4 SFP ports. They assist in maintaining stable communication over longer distances and support higher bandwidth. This is useful when connecting different floors, buildings, and network segments.
Yes, it also supports Layer 2+ features, including VLAN configuration, traffic management, and basic routing. Furthermore, network control features help organize the network, reduce congestion, and improve security by separating different types of traffic inside the same system.
This switch is designed to operate in a wide temperature range from -40°C to +75°C. It also includes surge protection, which helps protect the device from power fluctuations. This renders it applicable in industrial sites and harsh conditions where stability is needed.
SPOLLEX provides complete support beyond just supplying the switch, which includes helping with network design, installation, configuration, and training. Depending on your requirement, support can be provided on a project basis or through ongoing service contracts, ensuring your network runs smoothly in the long term.
