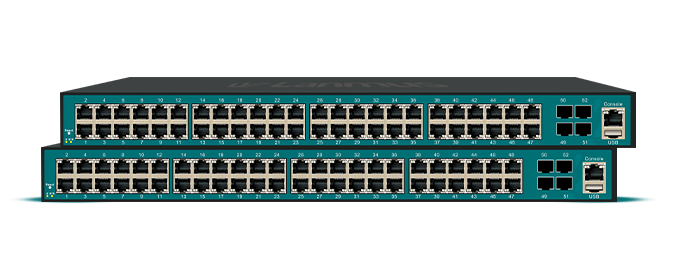

LM-4804FMGP-L2+
The LM-4804FMGP-L2+ is a high-density PoE switch designed to connect and power multiple network devices from a single system. It delivers both data and power through Ethernet ports while providing Layer 2+ management features for traffic control, security, and monitoring. In practical deployments, it is used as an access or distribution switch where many PoE devices need stable connectivity and centralized management.
Lanmus Ethernet Managed (LM-4804FMGP-L2+)
48x1G PoE+ 450W 4x1G and 4xSFP Managed Switch.
Managed PoE Ethernet Switch 48-port 10 / 100M / 1000M (4*SFP) Layer 2+
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Hightlight Features
- Product Category: L2+ Managed PoE Ethernet Fiber Switch
- Model: LM-4804FMGP-L2+
- Hardware Specification: 48 × 10/100/1000Base-T PoE + 4 × SFP uplinks
- Switching Layer: Layer 2+ Managed Switch with powerful network control capabilities
- Port Configuration: 48 × Gigabit PoE RJ45 ports + 4 × 1GE SFP fiber uplink ports
- Optical Ports: 4 × 100/1000Base-X SFP ports
- Console Port: 1 × RS232 Console port
- Switching Capacity: 104 Gbps
- Forwarding Mode: Store-and-forward with full wire-speed performance
- MAC Address Table: 8K
- PoE Support: IEEE 802.3af/at (up to 30W per port)
- Total PoE Budget: 450W
- PoE Management: PD alive check, scheduling, per-port control
- Jumbo Frame Support: Up to 9.6K
- VLAN Support: 4094 VLANs with advanced segmentation
- Routing Support: Static routing of IPv4 and inter-VLAN
- Redundancy Protocols: STP, RSTP, MSTP, ERPS (less than 20 ms convergence)
- Security Features: ACL, 802.1X authentication, IP-MAC binding, port isolation
- QoS Features: 802.1p, DSCP, SP/WRR scheduling
- Management Options: Web, CLI, SNMP, Telnet, SSH
- Surge Protection: 6KV
- Operating Temperature: -20°C to 55°C
- Build: Fanless design with long-lasting enclosure made of durable metal
- Installation: Rackmount (1U) or desktop
- Warranty: 3 Years
- Performance Feature: Stable wire-speed performance at high-density PoE deployments
Application
Absolute Maximum Ratings
Operation Environment
Optical Characteristics
Electrical Characteristics
EEPROM INFORMATION（A0）
Diagnostics
Pin Description
Recommended Application Circuit
Application
- 1.25 Gb/s 1000Base-SX Ethernet
- Dual Rate 1.063/2.125 Gb/s Fibre Channel
- Wireless – CPRI, OBSAI, LTE
Absolute Maximum Ratings
Parameter | Symbol | Minimum | Maximum | Units |
Storage Temperature | Tst | -40 | +85 | °C |
Supply Voltage | Vcc | 0 | +3.6 | V |
Operating Relative Humidity | RH | 5 | 95 | % |
Operation Environment
Parameter | Symbol | Min | Typical | Max | Units |
Supply Voltage | Vcc | 3.15 | 3.45 | V | |
Operating Case Temperature | Tc | -40 | +85 | °C | |
Power Dissipation | 1 | W |
Optical Characteristics
Tab Content
Electrical Characteristics
Tab Content
EEPROM INFORMATION（A0）
Tab Content
Diagnostics
Tab Content
Pin Description
Tab Content
Recommended Application Circuit
Tab Content
Key Specification
Key Specifications
Product Information
| Product Category | Unmanaged PoE Switch |
| Hardware Specifications | Compact, sturdy design with 6KV lightning and ESD protection |
| Warranty | 3 years |
Port Specifications
| Total number of optical ports | 0 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 10 (8 downlink + 2 uplink) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE/PoE+ Out ports | 8 |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | 120W |
| PoE power pins | $1/2(+)$, $3/6(-)$ |
System Specs
| Forwarding rate | 14.88Mpps |
| Switching capacity | 20Gbps |
Environment
| Operating temperature | $-20^{\circ}C$ to $+55^{\circ}C$ |
| Surge protection | 6KV |
| Humidity | 5% – 95% |
Security
| Port isolation | Supported via VLAN function |
| Broadcast storm control | Supported via VLAN function |
Product Comparision
24 *10/100/1000 PoE BaseT
4*100/1000Base-X
PoE ports
Max. PoE budget
Switching capacity
Forwarding rate
MAC address table
VLAN
Dimensions (W x D x H)
Weight (With package)
Loop prevention
Flow control
Port isolation
Broadcast storm suppression
Cloud management
Power consumption
Power supply
Fan
Port surge
Operating temperature
Operating humidity
MTBF
Warranty
LM-2404FMGP-L2
24
4
4
--
56Gbps
8K
--
440mm* 300mm*44mm
--
--
AC:100-240V50/60Hz)
--
-20~+55°C
5%~90% RH
--
3 years
LM-4804XFMGP-L3
48
4
4
--
176Gbps
32K
--
440mm* 300mm*44mm
--
--
AC100-240V 50/60Hz
--
-20~+55°C
5%~90% RH
--
3 years
Product Comparison
LM-2404FMGP-L2
LM-4804XFMGP-L3
Interface Characteristics
Fixed Port
24* 10/ 100/ 1000Base-T PoE ports 4* 10/ 100/ 1000Base-Tuplink Combo RJ45 ports 4*100/1000Base-X uplink Combo SFP ports 1*RS232 console ports
4* 1/ 10G uplink SFP+ ports 48* 10/ 100/ 1000Base-T PoE RJ45 ports 1*Console port 1*USB port
Ethernet Port
Port 1-24 support 10/ 100/ 1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Port 1-48 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
SFP Slot Port
Gigabit SFP optical fiber interface, default no include optical modules (Only supports single-mode single fiber optical module. LC)
Gigabit SFP optical fiber port and 10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Wavelength/Distance
multimode: 850nm 0~550M,1310nm 0~2KM single mode: 1310nm 0~40KM ，1550nm 0~120KM
Multi-mode: 850nm / 0-550M( 1G), 850nm /0-300M( 10G), Single-mode: 1310nm / 0-40KM, 1550nm / 0- 120KM.
Chip Parameter
Network Management Type
L2+
L3
Ring network
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-X, IEEE802.3z 1000Base-X, IEEE802.3x
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae10GBase-LR/SR, IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Store and Forward(Full Wire Speed)
Switching Capacity
56Gbps
176Gbps
Buffer Memory
41.66Mpps
131Mpps
MAC
8K
32K
Reset Switch
Yes, Press and hold the reset switch for 5s and release it to restore the factory settings
Yes, Press and hold the reset switch for 10s and release it to restore the factory settings
PoE characteristics
power supply
AC:100-240V50/60Hz
AC100-240V 50/60Hz
PoE power supply method
Supports 1,2+, 3,6-power supply
Default 1/2 (+), 3/6 (-)
PoE output power
IEEE802.3af/at， with a maximum power of 30w per port and a total power of 450w
15.4W per port, with a maximum power of 30W per port
Certification & Warranty
Lightning Protection
Lightning protection: 6KV 8/20us, Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Standard)
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard)
Mechanical Properties
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
Certification
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
Physical Parameter
Operation TEMP /Humidity
-20~+55°C;5%~90% RH Non condensing
-20~+55°C;5%~90% RH Non condensing
Storage TEMP /Humidity
-20~+75°C;5%~95% RH Non condensing
-20~+75°C;5%~95% RH Non condensing
Dimension (L*W*H)
440mm* 300mm*44mm
440mm* 300mm*44mm
Installation
Desktop, DIN rail
Desktop, 19 inch 1U cabinet installation
Network Management Features
Port configuration
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Link Aggregation
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
MAC Table
Aging Time Static MAC address Dynamic MAC address management
Aging Time Static MAC address Dynamic MAC address management
VLAN
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
ACL
256ACLs L2+, L2+ e L4 Time-based ACL
256ACLs L2, L3 e L4 Time-based ACL
Spanning tree
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
Ring Protection
<20ms G.8032 ERPS Ring
<20ms G.8032 ERPS Ring
Multicast
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
QOS
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
DHCP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
Security Features
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port Isolation Loopback detection
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port Isolation Loopback detection
Other Features
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
Maintenance
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Product Resources
- Download Product Datasheet
What is LM-4804FMGP-L2+?
The LM-4804FMGP-L2+ is a high-density PoE switch designed to connect and power multiple network devices from a single system. It delivers both data and power through Ethernet ports while providing Layer 2+ management features for traffic control, security, and monitoring. In practical deployments, it is used as an access or distribution switch where many PoE devices need stable connectivity and centralized management.
Key Features
High-Density PoE for Large Deployments
The LANMUS LM-4804FMGP-L2+ Managed switch has 48 PoE-enabled ports and a total power budget of 450W. This switch can support a large number of devices such as IP cameras, access points, and VoIP phones. It eliminates the necessity to use separate power sources and simplifies the process of installation in offices, campuses, and surveillance systems.
Fiber Uplink for Stable Backbone Connectivity
The 4 SFP uplink ports deliver a stable fiber connection to the aggregation or core switches. This makes sure that as many devices are operating, information can flow inside the network without any congestion between layers of the network.
Advanced Layer 2+ Network Control
The switch supports VLAN segmentation, static routing, ACL policies, and QoS management, which allow IT teams to control traffic flow, separate networks, and prioritize critical applications for better performance.
Quick Network Recovery with Redundancy Protocols
This switch also supports STP, RSTP, MSTP, and ERPS. The switch can quickly recover from link failures. This guarantees minimal downtimes and stable communications, particularly in those environments where network availability is a factor.
Strong Security for Controlled Access
Inbuilt capabilities like 802.1X authentication, IP-MAC binding, and ACL filtering can be used to secure the network. These controls prevent unauthorized access and protect sensitive data across connected devices.
Easy Management and Monitoring
The switch is controllable using Web interface, CLI, SNMP, and SSH. It also supports system logs, traffic monitoring, and diagnostics tools, thus making it easier to maintain and troubleshoot the network by the IT teams.
Durable and Fanless Design
The switch has a metal enclosure, no fan cooling, and a broad operating temperature range, which was designed to operate in various environments with stable operation. It can be used in indoor and semi-industrial settings without requiring regular maintenance.
Real Client Scenario Handled by Our Engineers
In Kenya, a logistics firm installed a large CCTV surveillance system in several warehouses. The problem was managing both the power and connectivity of dozens of cameras while keeping the network running well.
Our team implemented the LANMUS LM-4804FMGP-L2+ as the main access switch. It used PoE to power all cameras and uplink them to the core network using fiber uplinks. The system became more manageable, downtime was minimized, and video surveillance was consistent even when the system was at its peak operations once deployed. The client could also add the system without altering the current infrastructure.
When is it best to use LANMUS LM-4804FMGP-L2+?
The LANMUS LM-4804FMGP-L2+ is a good choice when your network has a large number of PoE devices that need both power and connectivity from a single switch. It can be used in surveillance systems, enterprise networks, and infrastructure configurations where centralized control is considered significant. It is also well-suited when you require stable fiber uplinks to enable connectivity to core switches and maintain control over traffic, security, and performance across a variety of connected devices.
Why Choose LM-4804FMGP-L2+ from SPOLLEX
Whether deploying surveillance systems, upgrading enterprise networks, or providing infrastructure to either an industrial or a commercial environment, SPOLLEX will be there to assist you at each step. Moreover, we assist in designing the appropriate network as per your needs, installation and configuration, and a smooth operation in real practice. Our products, with genuine LANMUS products, AMC support, and service coverage in the UAE, Middle East, Africa, Kenya, and Nepal, offer reliable solutions that ensure that your network runs smoothly without interruption.
Frequently Asked Question (FAQ)
The primary use of this switch is in networks where several PoE devices should be connected and managed centrally. It is commonly used in surveillance systems, office networks, warehouses, and infrastructure projects. Since it supports both power and data to be carried over a single cable, thus simplifying the installation in a place where it is not feasible to run separate power lines.
The switch has 48 PoE ports, which means that the switch is able to directly connect up to 48 powered devices like cameras, access points, or IP phones. Moreover, the 4 SFP uplink ports enable it to be connected to the next higher level switches, making it applicable when expanding networks to additional devices.
Yes, it does support PoE based on IEEE 802.3af/at standards. It implies that each port can provide two types of services: network connectivity and power to compatible devices. It simplifies the process of installation and is particularly applicable to the devices that are located in areas with a shortage of power outlets.
The switch offers a switching capacity of 104 Gbps and provides support for wire-speed forwarding. This means that in cases where there are a lot of devices operating, data processing is efficient and there are no delays. Such features as QoS are also used to give priority to important traffic to achieve better performance.
Yes, the 4 SFP ports can be used to provide fiber uplink connections to the aggregation or core switches. This renders it applicable to long-distance connectivity and high-speed backbone communication in a network of enterprises or campuses.
The switch has several security measures that include ACL filtering, port isolation, 802.1X authentication, and IP-MAC binding. These features help control access, prevent unauthorized devices from connecting, and protect the network from internal and external threats.
Yes, it is designed for stable performance with features like redundancy protocols (STP/RSTP/MSTP/ERPS), surge protection, and a fanless, durable build. These characteristics mean that this switch can be used continuously with minimal chances of going dead.
SPOLLEX provides full support, such as consultation and deployment, configuration, and AMC contracts. Our team will make sure that the switch is well integrated with your network and that it remains reliably operational over time with continued support and maintenance.
