LMT-GE-SM1310-20
SFP+-10GBASE-TI-RM is a copper SFP transceiver supporting 10G/5G/2.5G/1G, IEEE 802.3 compliant, with RX_LOS for link indication.
Lanmus Ethernet Accessories (LMT-GE-SM1310-20)

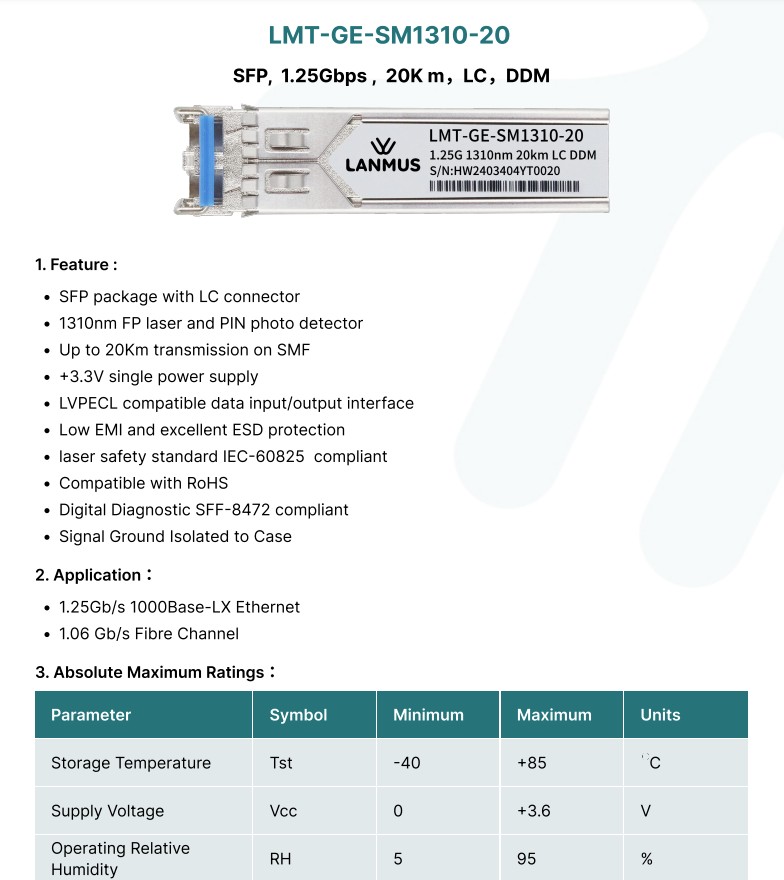

LMT-GE-SM1310-20
SFP, 1.25Gbps , 20K m，LC，DDM
Models
RJ-45 SFP Transceiver
SFP, 1.25Gbps
SFP+ Transceiver
SFP Optical Transceiver
Hightlight Features
- SFP package with LC connector
- 1310nm FP laser and PIN photo detector
- Up to 20Km transmission on SMF
- +3.3V single power supply
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- laser safety standard IEC-60825 compliant
- Compatible with RoHS
- Digital Diagnostic SFF-8472 compliant
- Signal Ground Isolated to Case
Key Specification
Key Specifications
Basic
Model
LMT-XG-T
LMT-GE-MM850
LMT-GE-T
LMT-GE-SM1310-20
Standard
Short wavelength
Long wavelength/ Long distance
Long wavelength/ Long distance
Long wavelength/ Long distance
Rate
1000 Mbps
1000 Mbps
1000 Mbps
1000 Mbps
Wavelength (nm)
850
850
850
850
Fiber Type
MMF
MMF
MMF
MMF
DDM (Yes/No)
Yes
Yes
Yes
Yes
Transmitter Power (dBm)
Min.
Max.
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
Transmitter Power (dBm)
Min.
Max.
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
Connector Type
L/C
L/C
L/C
L/C
Core Size (μm)
50/125
50/125
50/125
50/125
Max. Cabling Distance
550 m (1640.42 ft)
550 m (1640.42 ft)
550 m (1640.42 ft)
550 m (1640.42 ft)
Operating Temperature
–40 to +85°C (–40 to +185°F)
Storage Temperature
–40 to +85°C (–40 to +185°F)
Relative Humidity
–40 to +85°C (–40 to +185°F)
Diagram
Recommended Application Circuit
Outline Dimensions (mm)
