16-Port Unmanaged Gigabit PoE Switch with Dual SFP
For modern deployments of IP surveillance, enterprise wireless networks, and growing commercial sites, the need for a steady network backbone with high port capacity while maintaining reliable power delivery is critical. Running different power cables to each IP camera, wireless access point, or VoIP phone overhead increases the amount of labor costs, fills up the server rack space, and creates points of electrical failure. LANMUS LM-1622FUGP directly tackles these infrastructure problems. It is a 16-Port Unmanaged Gigabit PoE Switch designed for easy network expansion, reliable power supply, and zero-configuration network operational uptime.
Ummanaged Switch

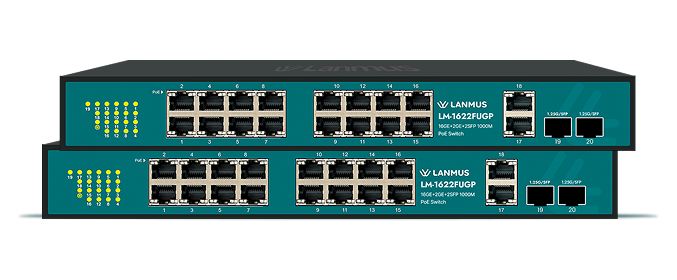

LM-1622FUGP
The LM-1622FUGP is manufactured by LANMUS and is distributed globally by SPOLLEX for use by security contractors, IT managers, and system integrators in Dubai, the GCC, Africa, Kenya, Nepal, and worldwide.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Core Specifications
- Product Category: Unmanaged Gigabit PoE Switch
- Model: LM-1622FUGP
- Downlink Ports: 16 × 10/100/1000 Base-T PoE Ports
- RJ45 Uplink Ports: 2 × 10/100/1000 Base-T Gigabit RJ45 Uplinks
- Fiber Uplink Ports: 2 × 1000 Base-X Gigabit SFP Optical Ports
- Total Network Ports: 20 Active Connectivity Ports
Key Specifications
Product Information
| Product Category | Unmanaged PoE Switch |
| Hardware Specifications | 4GE+2GE |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 0 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 6 (4 PoE + 2 Uplink) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply and Consumption
| Power Supply and Consumption | 2.3 |
| Number of PoE Out ports | 4 |
| Number of PoE/PoE+ Out ports | 4 (IEEE 802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | 65W |
| PoE power pins | 1/2(+), 3/6(-) End-span |
System Specifications
| Forwarding rate | 8.93 Mpps |
| Switching capacity | 12 Gbps |
Environment and Reliability
| MTBF | >50,000 hours |
| Operating temperature | -20°C to 50°C |
| Altitude | Up to 5000m |
| Surge protection | 6KV (Lightning), 8KV (Air ESD) |
Software Specifications
| PoE watchdog | Supported |
| Jumbo frame length (MTU) | 10K |
Security
| Port isolation | Supported (One-key VLAN) |
| Broadcast storm control | Supported |
Product Comparison
Downstream
Ports
4*10/100/1000Base-T (PoE)
8*10/100/1000Base-T (PoE)
16*10/100/1000Base-T (PoE)
24*10/100/1000Base-T (PoE)
Uplink Ports
2*10/100/1000Base-T
2*10/100/1000Base-T
2*10/100/1000 Base-T RJ-45；1*1000 Base-X SFP
2*10/100/1000 Base-T RJ-45；1*1000 Base-X SFP
Network
Standard
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
Switch Capacity
12Gbps
20Gbps
38Gbps
54Gbps
Throughput
8.93Mpps
14.88Mpps
28Mpps
40.176Mpps
Switch
Processing
Scheme
Store and Forward
Store and Forward
Store and Forward
Store and Forward
Memory Buffer
1M
1.5M
4M
4M
MAC Table
2K
4K
8K
8K
PoE Standard
802.3af/at(PSE)
802.3af/at(PSE)
802.3af/at(PSE)
802.3af/at(PSE)
PsE Type
End-span
End-span
End-span
End-span
Power Pin
Assignment
1/2( +)，3/6(-)
1/2( +)，3/6(-)
1/2( +)，3/6(-)
1/2( +)，3/6(-)
PoE Power
Output
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
PoE Total Power
65w
120w
260w
360W
Lightning
protection
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
ESD
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
Power Supply
DC:52V1.25A
DC 52V2.3A
52V/3.8A
52V/5.76A
Power
Dissipation
＜5w
＜5w
＜15w
＜20W
Work
temperature
-20℃~55℃
-20℃~55℃
-20℃~55℃
-20℃~55℃
Storage
temperature
-20℃~75℃
-20℃~75℃
-20℃~75℃
-20℃~75℃
Humidity(Noncondensin)
5%-95%
5%-95%
5%-95%
5%-95%
Dimension（ L
×W × H ）
195mm×130mm×40mm
195mm×130mm×40mm
310mm*210mm*44mm
310mm*210mm*44mm
Regulator
CE, FCC, ROHS
CE, FCC, ROHS
CE, FCC, ROHS
CE, FCC, ROHS
6-port 10/100/1000M PoE Ethernet switch
1 unit
1 unit
1 unit
1 unit
power line
1 article
1 article
1 article
1 article
User Guide
1 book
1 book
1 book
1 book
Warranty Card
1 Sheet
1 Sheet
1 Sheet
1 Sheet
What is the LANMUS LM-1622FUGP?
The LANMUS LM-1622FUGP is a high-density, 16-port, unmanaged Gigabit PoE switch designed for demanding data transmission and centralized power management. This switch is equipped with 16 Gigabit PoE downlink ports, 2 dedicated Gigabit RJ45 copper uplinks, and 2 Gigabit SFP optical fiber uplinks, which gives network planners flexible topology options without sacrificing access port density.
The LM-1622FUGP delivers 40 Gbps of total backplane switching bandwidth, 28 Mpps of packet processing throughput, and performs well in high-security applications while consuming just 260W of power. The plug-and-play operation eliminates command-line setup and intricate web interfaces, and ensures stable end-span power distribution.
Key Features
1. High-Performance 16-Port Gigabit PoE Power Budget
The LM-1622FUGP supports 16 Gigabit PoE ports, following the IEEE 802.3af and IEEE 802.3at standards. Hungry edge devices are powered by up to 30W of electricity from each port with a combined PoE output budget of 260W. This feature allows all the multi-lens PTZ cameras, Wi-Fi 6 APs, smart access hardware, and VoIP terminals to be powered via one power cord.
2. Dual Copper and Dual SFP Fiber Uplink Architecture
The LM-1622FUGP is a 4-port independent uplink switch, where operators don’t have to sacrifice local access ports to be able to use network uplinks. Dual Gigabit RJ45 uplinks are for short-haul links to local Network Video Recorders (NVRs) or core routers. In parallel, the dual 1000 Base-X SFP fiber ports enable noise-immune, high-speed backbone connections, spanning multi-building campuses or multi-floor premises.
3. Dedicated Store-and-Forward Forwarding Engine
The internal switching engine has a switching capacity of 40 Gbps and a forwarding speed of 28 Mpps and is based on a store-and-forward architecture that analyzes the integrity of the frame prior to sending it out. The switch, combined with an 8K MAC address table and a 4 MB memory buffer, can effectively prevent packet loss and frame collision under the condition of peak video streaming or heavy file transfer.
4. Hardware-Grade Electrical Surge and ESD Safeguards
Industrial site locations may experience voltage fluctuations, lightning strikes, and static discharges due to many circumstances. LANMUS constructs the LM-1622FUGP with integrated 6KV lightning protection alongside advanced ESD shields. These physical safety barriers keep sensitive interior circuitry functional and isolate outdoor edge devices from unexpected power anomalies.
5. Instant Plug-and-Play Installation
This switch offers no software installation, no IP configuration, and no technical delay. The switch is auto-MDI/MDIX recognized and auto-negotiates speeds on all copper ports. Installers mount the chassis, connect network drops, and connect the main power source, and the network is ready to use.
6. Wide Operational Range and Metal Enclosure
Encased in a standard 310 mm × 210 mm × 44 mm metal housing, the LM-1622FUGP operates reliably across extreme temperatures ranging from -20°C to 55°C. This thermal tolerance makes it well suited for installation inside server racks, wall boxes, or ventilated outdoor field cabinets situated in warm climates like the UAE, Middle East, and Africa.
Performance & Real-World Behavior
Project: Regional Logistics Hub Surveillance Upgrade in Dubai, UAE.
Challenge: An existing multi-building logistics facility needed an upgraded security perimeter for loading docks, center storage bays, and main entrance gates. The client required power for 14 high-draw outdoor IR security cameras and power for 2 long-range wireless APs throughout a wide dispersal area without the need to install separate AC electrical lines to each pole. In addition, optical fibre connections were required within the network to link it back to a main security monitoring office 1.5 kilometres away.
Solution: Our engineering team has selected the LANMUS LM-1622FUGP as the base edge switch of the distribution rack.
- All 14 camera drops and 2 outdoor APs were accommodated in the 16 PoE ports, with consistent IEEE 802.3at power supply.
- The dual SFP fibre uplink ports were equipped with gigabit optical transceivers, which enabled streaming of real-time video feedback to a remote control centre via single-mode optical fibre without degradation.
- The zenith of the setup was made possible by integrated 6KV surge protection to ward off electrical noise from nearby heavy forklift battery charging bays and outside electrical hazards.
Typical Deployment Scenarios
High-Definition IP CCTV Surveillance Systems
High-resolution IP surveillance cameras require constant throughput and constant voltage. The LM-1622FUGP starts up to 16 HD IP cameras all at once without compromising video feed. The 2 dedicated copper uplinks carry live streams to redundant local NVRs, and the 2 SFP optical ports carry central management feeds over long-distance fiber connections directly to security command centers.
Smart Retail and Hospitality Outlets
Point-of-Sale (POS) terminals, digital signage displays, guest Wi-Fi points, and security cameras inside the hotel are crucial for ensuring constant uptime. The LM-1622FUGP also comes with a plug-and-play design that helps to minimize deployment set-up times and maintenance demands for local onsite IT personnel.
When Should You Use the LANMUS LM-1622FUGP?
The LANMUS LM-1622FUGP is designed for medium- to large-scale networking environments, where an 8-port switch is too small and a 24-port switch is too big or too expensive. It is an ideal compromise for projects that require a modest port density and flexibility with fiber optics.
Its fast-paced expansion across commercial buildings, logistics facilities, school campuses, hospitals, and residential towers in Dubai, the Middle East, Africa, and Asia is valued for its high bandwidth capacity, physical surge protection, and low overall operational cost.
Why Choose LANMUS LM-1622FUGP from SPOLLEX?
To get the maximum performance out of your network equipment, you need to have hardware of the highest possible quality together with a trustworthy after-sales technical service support. SPOLLEX is the official distributor for LANMUS products in Dubai, GCC, Africa, Kenya, Nepal, and beyond, connecting high-quality engineering and local experience.
With SPOLLEX, you will receive:
- Guaranteed Original Products: Fully certified LANMUS hardware with factory compliance (CE, RoHS) and direct manufacturer warranties.
- Pre-Sales Network Design: Engineering advice for power budgeting, choosing optics transceivers, and planning for uplink network topology.
- Quick Stock Availability: Local stock availability in key distribution hubs, ensuring quick delivery turnaround times for urgent project timelines.
- Comprehensive Support: After-sales assistance, technical support, warranty services, and Annual Maintenance Contracts (AMC) to guarantee continuous uptime for your installations.
Frequently Asked Question (FAQ)
The LANMUS LM-1622FUGP delivers a total PoE power budget of 260W across its 16 downlink ports. It complies with IEEE 802.3af/at standards, supplying up to 15.4W typical and up to 30W maximum on an individual port, provided the total draw remains within the 260W threshold.
This switch includes 4 dedicated uplink ports in addition to 16 PoE ports: 2 Gigabit (10/100/1000 Base-T) RJ45 copper uplinks and 2 Gigabit (1000 Base-X) SFP optical fiber ports.
No, the LM-1622FUGP is an unmanaged, plug-and-play network switch. It requires zero software configuration, IP settings, or manual adjustments; simply connect power and data lines to start forwarding traffic immediately.
Yes. The switch is constructed using a rugged metal chassis and is rated for an ambient temperature range from -20°C to 55°C and includes built-in 6KV lightning protection and ESD protection.
Yes, the switch has a pair of 1000 Base-X SFP ports to connect compatible Gigabit SFP transceivers (single-mode fiber or multi-mode fiber) to the switch over extended distances to core switches, remote distribution nodes, or monitoring areas.
The switch can support any standard IEEE 802.3af/at compliant PoE device, such as IP security cameras, pan-tilt-zoom (PTZ) security cameras, wireless access points, VoIP desk phones, IP intercoms and biometric door controllers.
The box contains 1 unit of the LANMUS LAN-1622FUGP Switch, 1 main power line cable, 1 User Guide, and an official warranty card.
Clients from Dubai, GCC, Africa, Kenya, Nepal, and beyond can get genuine LANMUS networking equipment directly from SPOLLEX, which is the authorized LANMUS solutions distributor.
