LM-402UFE-P
Setting up small networks can quickly become complex and costly, especially when separate power and network cabling is required for devices like IP cameras.
Poor switch performance can also cause latency or packet loss, risking critical surveillance operations. The LANMUS LM-402UFE-P simplifies deployment by combining power and data in one cable with plug-and-play setup, making it ideal for reliable, small to medium networks.

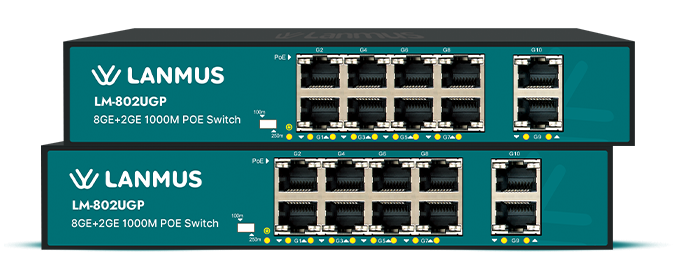

Lanmus Ethernet Managed (LM-802UGP)
Standard Unmanaged 8GE+2GE 1000M POE Switch, 120w inbuilt Power Supply
8 downlink 10/100/1000Base-T PoE Ethernet ports, 2 uplink 10/100/1000Base-T Ethernet uplink ports
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Hightlight Features
Key Specification
Key Specifications
Product Information
| Product Category | Unmanaged PoE Switch |
| Hardware Specifications | 8GE+2GE |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 0 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 10 (8 PoE + 2 Uplink) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply and Consumption
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 (IEEE 802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | 120W |
| PoE power pins | 1/2(+), 3/6(-) End-span |
System Specifications
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps |
Environment and Reliability
| MTBF | >50,000 hours |
| Operating temperature | -20°C to 50°C |
| Altitude | Up to 5000m |
| Surge protection | 6KV (Lightning), 8KV (Air ESD) |
Software Specifications
| PoE watchdog | Supported |
| Jumbo frame length (MTU) | 10K |
Security
| Port isolation | Supported (One-key VLAN) |
| Broadcast storm control | Supported |
What is LM-402UFE-P?
The LM-402UFE-P is a small unmanaged PoE switch that is intended to be used in simple network applications. It bridges and drives gadgets such as IP cameras and access points without any configuration. In most systems, it is deployed in small surveillance systems or simple extensions of a network where ease of deployment and stable operation are the primary requirements.
Key Features
Simple Plug-and-Play Operation
No configuration or setup is needed with this switch. All you do is connect the cables, and it instantly works. This helps it to be used in fast deployments, particularly in places where technical configuration must be kept to a bare minimum.
PoE Power for Easy Installation
The switch has 4 PoE ports (each with a maximum of 30W per port) to allow direct powering of devices over Ethernet cables. It eliminates the use of additional sources of power and makes installation a lot easier, particularly for IP cameras and wireless devices.
Dedicated Uplink Ports for Stable Connectivity
The 2 uplink ports are used to get the switch connected to the router or other higher-level networks. Such separation guarantees that the data of the related equipment passes without hindering the overall functioning.
CCTV Mode for Surveillance Networks
The built-in one-key CCTV mode enables VLAN isolation, which reduces the broadcast traffic, preventing network congestion, and enhances security since there will be isolation of connected devices within the surveillance environments.
Reliable Performance for Video Traffic
The switch can easily process video streams, considering its switching capacity of 12 Gbps and stable forwarding. This guarantees the transmission of data to the monitoring systems without any distortion or interruption in the transmission of the data intended to be delivered to the receiver.
Strong Protection for Real Environments
The switch has 6KV lightning protection and ESD protection. These characteristics guard the device against electric shocks and noise, thus making it applicable in outdoor-proximate or unstable electrical environments.
Compact and Flexible Installation
This model size enables it to be installed in confined areas. It can either be put on the desk or mounted on the wall, which makes it applicable in offices, shops, and small-scale surveillance systems.
Performance & Real-World Behavior
A retail store chain in Oman needed a simple solution to install CCTV cameras in multiple outlets. Their need was also obvious: it should be set up quickly, require minimum maintenance, and should be able to ensure the stability of their video surveillance without complicated settings.
Our team deployed the LM-402UFE-P in each store. The PoE ports were directly connected to the cameras, and the uplink ports were connected to the main router. When the CCTV mode was activated, the network traffic remained stable even during continuous recording. The installation process was fast, and the client could easily track all the locations without any connectivity problems.
Why Should You Choose This Model?
The switch is an excellent option when you require a simple and trusted PoE solution for a small network. It is effective in CCTV systems, small offices, retail stores, and simple network extensions in which speedy installation is a factor. It is particularly handy when you desire to operate devices such as cameras without the need to add additional wiring, yet maintain a stable data performance.
When Should You Choose This Model?
Regardless of whether you are establishing a small surveillance system, expanding a retail network, or providing basic connectivity in offices or remote locations, SPOLLEX will provide you with the appropriate solution. We assist you in choosing the right switch, installing it smoothly, and we are always willing to offer any assistance when required. As long as there is service in the UAE, the Middle East, Africa, Kenya, and Nepal, we ensure that your network is easy, predictable, and consistent.
Product Resources
- Download Product Datasheet
Frequently Asked Question (FAQ)
LM-402UFE-P is primarily aimed at small networks like CCTV systems, retail stores, and small offices. It is best when gadgets such as IP cameras require power as well as data, and are not complicated to install.
No, this is a non-managed switch that has plug-and-play capabilities. After the connection, it automatically begins to work without being configured or software setup.
Yes, it supports PoE with a maximum power of 30W per port and an overall budget of 65W. This is enough to power devices like IP cameras, access points, and VoIP phones within the supported limit.
VLAN isolation is possible with CCTV mode, and this allows traffic between ports to be separated. This mitigates broadcast storms, enhances security, and provides stable video delivery in surveillance networks.
The switch also has lightning protection of 6KV and ESD protection. These characteristics enable it to work without problems in conditions where changes in power or interference often occur.
Yes, the 2 uplink ports mean that you can use this switch to connect it to a router or other switch. This allows you to increase your network easily when required.
Although it is not an industrial switch, its protection features and wide temperature range make it suitable for an indoor or semi-outdoor environment with non-extreme conditions.
SPOLLEX provides advice in product selection, deployment support, and after-sales support. We make sure that the switch is correctly fitted and is still able to operate well in your installation.
