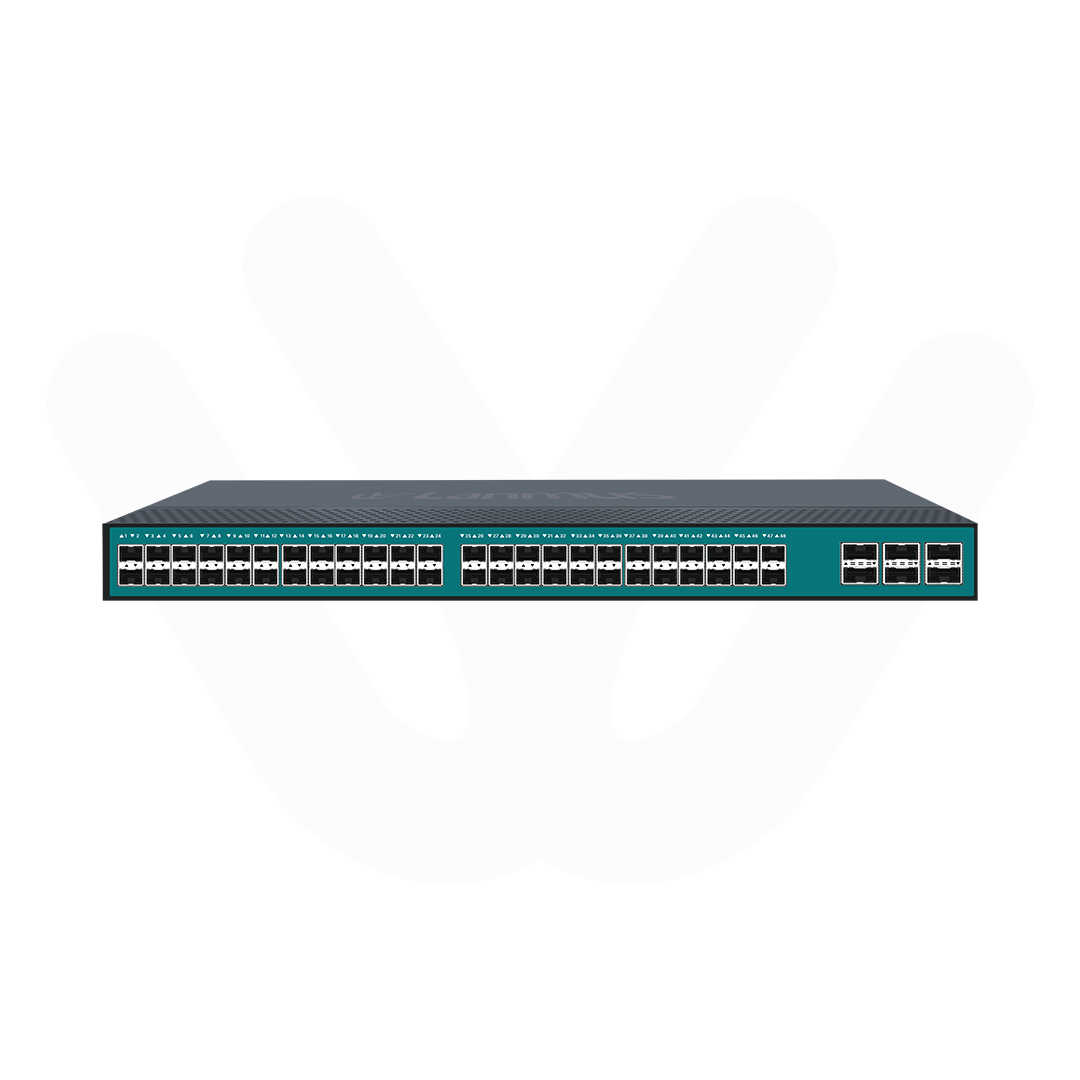

LM-S7054-48X6H
The LM-S7054-48X6H switch is a high-performance 10G fiber switch developed
by our company. It features advanced hardware design and a hot-swappable
power supply for redundancy.
This switch supports up to 48×1G/10G SFP+ ports, along with 6×40GE/100GE
QSFP28 uplink ports. It offers full-port L2/L3 wire-speed forwarding, IPv6
support, and a range of business features, including ACL policies and network
security.
Lanmus Ethernet Managed
(LM-S7054-48X6H)
L3 Managed Ethernet Switch
The LM-S7054-48X6H switch is a high-performance 10G fiber switch developed by our company. It features advanced hardware design and a hot-swappable power supply for redundancy. This switch supports up to 48×1G/10G SFP+ ports, along with 6×40GE/100GE QSFP 28 uplink ports. It offers full-port L2/L3 wire speed forwarding, IPv6 support, and a range of business features, including ACL policies and network security. The LM-S7054-48X6H provides the highest 10 Gigabit port density and maximum switching capacity in its class, supporting wire speed forwarding on all ports. It also accommodates flexible access for both 10GE and 100GE connections and automatically recognizes the type of optical module installed, maximizing user investment protection and ensuring flexibility.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Hightlight Features
- Ethernet Port :
48*1GE / 10GE SFP + 6*40GE / 100GE QSFP 28
- Exchange Capacity : 2160Gbps
- Packet Forwarding Rate : 600Mpps
- Power Consumption :
≤220W
- Ethernet Port :
Features
Product Comparison
Downstream
Ports
4*10/100/1000Base-T (PoE)
8*10/100/1000Base-T (PoE)
16*10/100/1000Base-T (PoE)
24*10/100/1000Base-T (PoE)
Uplink Ports
2*10/100/1000Base-T
2*10/100/1000Base-T
2*10/100/1000 Base-T RJ-45；1*1000 Base-X SFP
2*10/100/1000 Base-T RJ-45；1*1000 Base-X SFP
Network
Standard
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
Switch Capacity
12Gbps
20Gbps
38Gbps
54Gbps
Throughput
8.93Mpps
14.88Mpps
28Mpps
40.176Mpps
Switch
Processing
Scheme
Store and Forward
Store and Forward
Store and Forward
Store and Forward
Memory Buffer
1M
1.5M
4M
4M
MAC Table
2K
4K
8K
8K
PoE Standard
802.3af/at(PSE)
802.3af/at(PSE)
802.3af/at(PSE)
802.3af/at(PSE)
PsE Type
End-span
End-span
End-span
End-span
Power Pin
Assignment
1/2( +)，3/6(-)
1/2( +)，3/6(-)
1/2( +)，3/6(-)
1/2( +)，3/6(-)
PoE Power
Output
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
Single port power 15.4w, maximum port power 30w
PoE Total Power
65w
120w
260w
360W
Lightning
protection
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
6KV Execute : IEC61000-4-5
ESD
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2
Power Supply
DC:52V1.25A
DC 52V2.3A
52V/3.8A
52V/5.76A
Power
Dissipation
＜5w
＜5w
＜15w
＜20W
Work
temperature
-20℃~55℃
-20℃~55℃
-20℃~55℃
-20℃~55℃
Storage
temperature
-20℃~75℃
-20℃~75℃
-20℃~75℃
-20℃~75℃
Humidity(Noncondensin)
5%-95%
5%-95%
5%-95%
5%-95%
Dimension（ L
×W × H ）
195mm×130mm×40mm
195mm×130mm×40mm
310mm*210mm*44mm
310mm*210mm*44mm
Regulator
CE, FCC, ROHS
CE, FCC, ROHS
CE, FCC, ROHS
CE, FCC, ROHS
6-port 10/100/1000M PoE Ethernet switch
1 unit
1 unit
1 unit
1 unit
power line
1 article
1 article
1 article
1 article
User Guide
1 book
1 book
1 book
1 book
Warranty Card
1 Sheet
1 Sheet
1 Sheet
1 Sheet
Product Resources
Order Informations
Device
LM-S7054-48X6H
Power Supply
AC: 100~240V; 47/63Hz
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
440×410×44mm 19” Rackmount
Frequently Asked Question (FAQ)
The LM-S7054-48X6H is a high-performance 10G fiber Layer 3 managed Ethernet switch designed for enterprise networks, data centers, and metropolitan area networks (MANs). It delivers high port density, wire-speed forwarding, and advanced security for bandwidth-intensive environments.
The switch supports up to 48 × 1G/10G SFP+ ports for high-density access, along with 6 × 40G/100G QSFP28 uplink ports, enabling flexible aggregation and core connectivity.
Yes. The LM-S7054-48X6H offers full-port L2/L3 wire-speed forwarding across all interfaces, ensuring low latency and consistent performance for high-bandwidth applications.
Absolutely. The switch fully supports IPv6, making it suitable for modern networks transitioning from IPv4 while maintaining seamless routing and switching performance.
The LM-S7054-48X6H is equipped with hot-swappable redundant power supplies, ensuring continuous operation and minimizing downtime in mission-critical environments.
The switch includes advanced ACL policies, network security controls, and traffic management features, allowing administrators to secure network access and optimize traffic flow.
The LM-S7054-48X6H is ideal for campus network aggregation or access layers, data center access layers, network operators, and small to medium-sized enterprise core networks, offering a future-proof and scalable connectivity solution.
