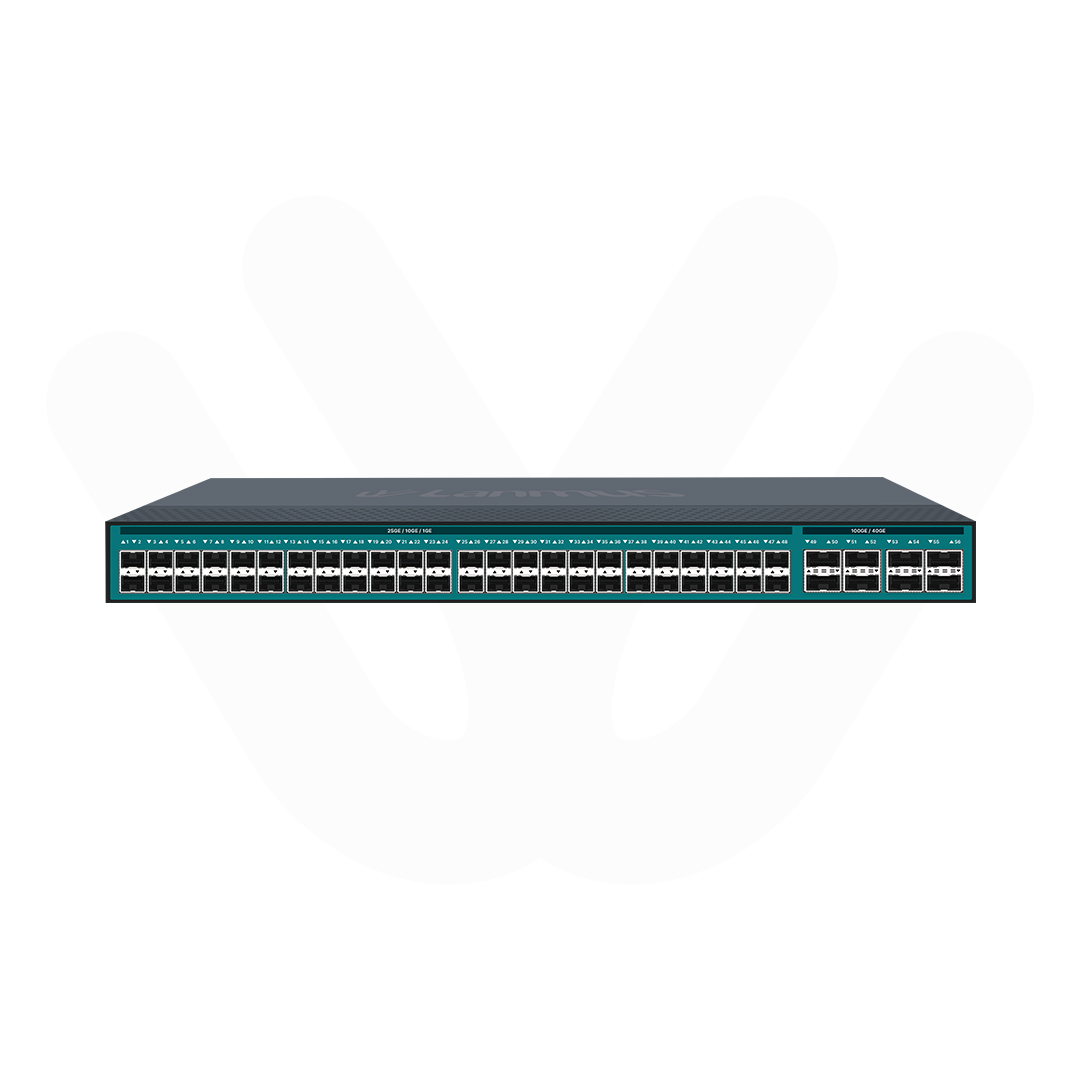

LM-S7056-48FP8H
The LM-S7056-48FP8H is a Layer 3 managed switch designed to handle high-speed communication among the various parts of a network. It can support 10G and 25G connections, which makes it more applicable to those environments where the old and new systems should be compatible. Meanwhile, it connects to the core network via 100G uplinks that can provide high-speed and stable data transmission.
Lanmus Ethernet Managed
(LM-S7056-48FP8H)
L3 Managed PoE Ethernet Switch 48*10/25G SFP28 Port
The LM-S7056-48FP8H is a high-performance, next-generation Layer 3 switch designed for enterprise, data center, and carrier-grade network environments. Built to meet the ever-growing demands for scalable and high-density connectivity, this switch combines 48 x 10/25G SFP28 ports with 8 x 40/100G QSFP28 uplink ports, providing a versatile and future-proof solution for modern networks.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Hightlight Features
- Producategory: L3 Managed Ethernet Switch
- Model: LM-S7056-48FP8H
- Hardware Specification: 48 × 10/25G SFP28 + 8 × 100G QSFP28
- Switching Layer: L3 Managed Switch with advanced routing support
- Port Configuration: 48 × 10/25G SFP28 optical ports + 8 × 100G QSFP28 uplink ports + 1 × 10/100/1000BASE-T management port
- Optical Ports: 56 high-speed optical ports
- Console & USB Ports: 1 × Console port + 1 × USB port
- Switching Capacity: 4.0 Tbps
- Forwarding Rate: 2976 Mpps
- Jumbo Frame Length: 12K
- Port Features: Auto-sensing 10G/25G ports with full-duplex support
- Routing Features: Layer 3 routing with IPv6 support
- Redundancy: Dual hot-swappable power supply (1+1)
- Cooling System: Dual hot-swappable fan modules
- Security Features: Port isolation supported, Broadcast storm control supported
- Surge Protection: 6KV
- Operating Temperature: 0°C to 45°C
- Altitude Support: Up to 5000 meters
- MTBF: >100,000 hours
- Warranty: 3 Years
- Performance Feature: Stable wire-speed forwarding for high-speed aggregation and core network environments.
Key Specification
Key Specifications
Product Information
| Product Category | L3 Managed Ethernet Switch |
| Hardware Specifications | 48* 10/25G SFP28 + 8* 100G QSFP28 |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 56 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 48 (Compatible via SFP28) |
| Number of 10GE SFP+ ports | 48 (Compatible via SFP28) |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 1 (Management port) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE Out ports | 0 |
| Number of PoE/PoE+ Out ports | 0 |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | N/A |
| PoE power pins | N/A |
System Specs
| Forwarding rate | 2976 Mpps |
| Switching capacity | 4.0 Tbps |
Environment
| MTBF | >100,000 hours |
| Operating temperature | 0°C to 45°C |
| Altitude | Up to 5000m |
| Surge protection | 6KV |
Software Specifications
| PoE watchdog | N/A |
| Jumbo frame length (MTU) | 12K |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |

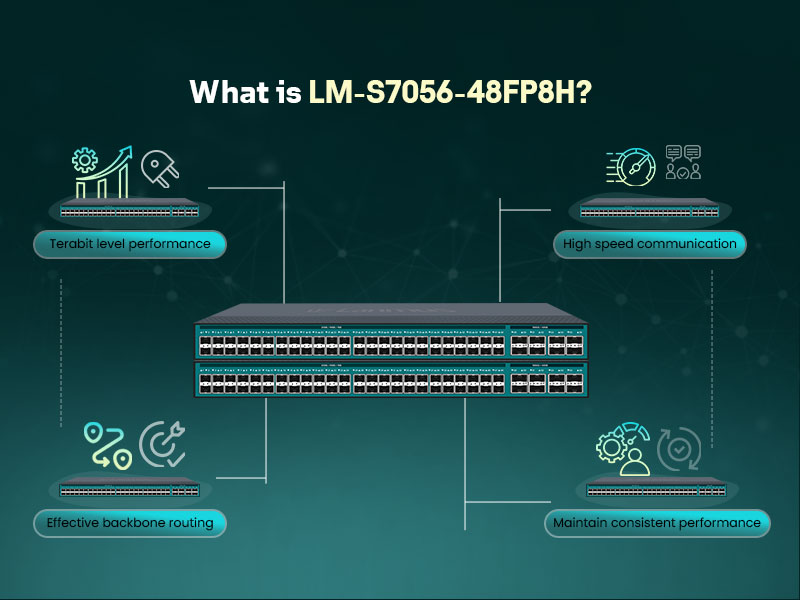

What is LM-S7056-48FP8H?
The LM-S7056-48FP8H is a Layer 3 managed switch designed to handle high-speed communication among the various parts of a network. It can support 10G and 25G connections, which makes it more applicable to those environments where the old and new systems should be compatible. Meanwhile, it connects to the core network via 100G uplinks that can provide high-speed and stable data transmission.
In most deployments, this switch is placed between the access layer and the core. It gathers traffic from various devices and routes it effectively to the backbone. This configuration assists in maintaining similar levels of performance on the network, even when various sections have different speeds or when they have different loads.
Key Features
Smooth Upgrade from 10G to 25G Networks
The switch supports both 10G and 25G on the same ports. This will enable organizations to continue using existing 10G devices while gradually introducing faster 25G systems. It avoids sudden infrastructure changes and reduces upgrade costs.
Strong Uplink Capacity for Backbone Connectivity
The switch includes 8 QSFP28 ports, which accommodate 40G and 100G, thus making it easy to connect to core networks. Furthermore, this will guarantee that there is no traffic jam in the layer of aggregation among various devices.
High Data Processing Capability
The switch can support large volumes of data with a switching capacity of 4.0 Tbps and a forwarding rate of 2976 Mpps. This ensures that applications are responsive even at peak times.
Flexible Deployment Across Network Layers
The switch can be utilized in either an aggregation or core mode, depending on the size of the network. It can be easily integrated in a place where several high-speed connections are required to be controlled.
Reliable Design for Continuous Operation
Without a system shutdown, it is possible to replace dual power supplies and fan modules. This assists in maintaining the uptime and prevents the disruption of service during the maintenance.
Real Client Scenario Handled by Our Engineers
A banking organization from Nepal was upgrading its network to support new applications, but wanted to keep part of its existing 10G setup. The main issue was inconsistent performance between old and new systems.
Our team deployed the LM-S7056-48FP8H as an aggregation switch. It allowed both 10G and 25G devices to connect without conflict, while 100G uplinks ensured smooth communication with the core network. After deployment, data flow became more stable, and users experienced faster access to shared systems. The client was able to upgrade gradually without replacing the entire network.

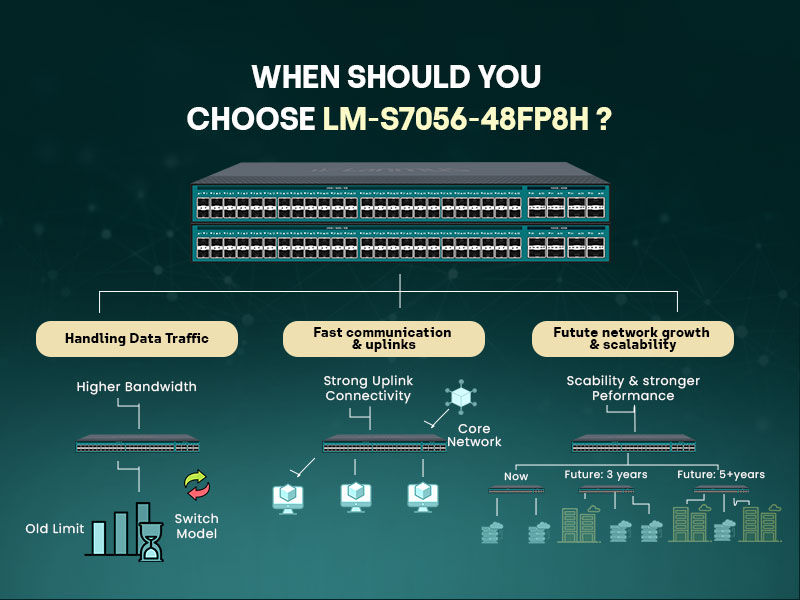

When Should You Choose This Model?
This switch is a good choice when your network needs higher bandwidth to handle growing data traffic and modern applications. It fits well in environments where systems require faster communication and strong uplink connectivity to the core network. It is also suitable for setups that are expected to expand over time, helping you maintain stable performance while supporting future network growth without frequent upgrades.
Why Choose LM-S7056-48FP8H from SPOLLEX
Whether you are upgrading a banking system, ISP network, educational institution, or a corporate office, SPOLLEX supports you at every stage. We know that each network is unique and needs a different solution, and our team collaborates with you to provide the correct solution depending on your environment.
We support you during planning, deployment, and always when you require us. Our engineers do installation and configuration to make sure that the switch operates correctly in your configuration. Through the genuine LANMUS products, scalable AMC contracts, as well as coverage of its services throughout the UAE, Middle East, Africa, and Nepal, we ensure that your network remains dependable, scalable, and future-growth acceptable.
Features
Order Informations
Device
LM-S7056-48FP8H
Power Supply
AC or DC redundant power supply
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
440x410x44mm
Frequently Asked Question (FAQ)
Yes, this switch is specifically designed for environments that are moving from 10G to higher speeds like 25G and 100G. It allows you to continue using existing 10G devices while gradually introducing faster systems. This facilitates the upgrade process and eliminates the necessity to redesign the entire network.
25G switching provides more bandwidth than 10G at reasonable complexity and cost. It assists in enhancing the speed of data transfer among servers, storage, and applications. This can be particularly handy in a setting where a lot of data is handled on a daily basis, like enterprise networks and data centers.
This is a switch with a switching capacity of 4.0 Tbps and a high forwarding rate, which can process large volumes of data without slowing down. It ensures that multiple users and applications can run at the same time without performance issues, even during peak use.
This model is typically used between the access layer and the core network, sometimes referred to as the aggregation layer. It gathers the traffic of various devices and routes it effectively to the backbone; hence, maintaining a balanced and consistent traffic throughout the network.
Yes, the SFP28 and QSFP28 ports can be used to connect with fiber, which is optimal when long-distance communication is required. This enables you to interrelate various floors, buildings, or even distant places with high speed and stable data transfer.
This switch is suitable for industries where steady and quick network output is essential. They may be deployed in the banking systems, ISP networks, educational institutions, and corporate systems where several systems are required to communicate reliably without delays.
The switch has two hot-swappable power supplies and fans. This implies that when one of the components fails or requires any maintenance, the switch will not cease to operate. This is significant in environments where downtime might impact the operations.
SPOLLEX offers full support, such as network planning, installation, configuration, and training. Long-term maintenance can also be provided in the form of AMC or service contracts by clients. This makes sure that the network keeps running and any problems are resolved in a short time.
