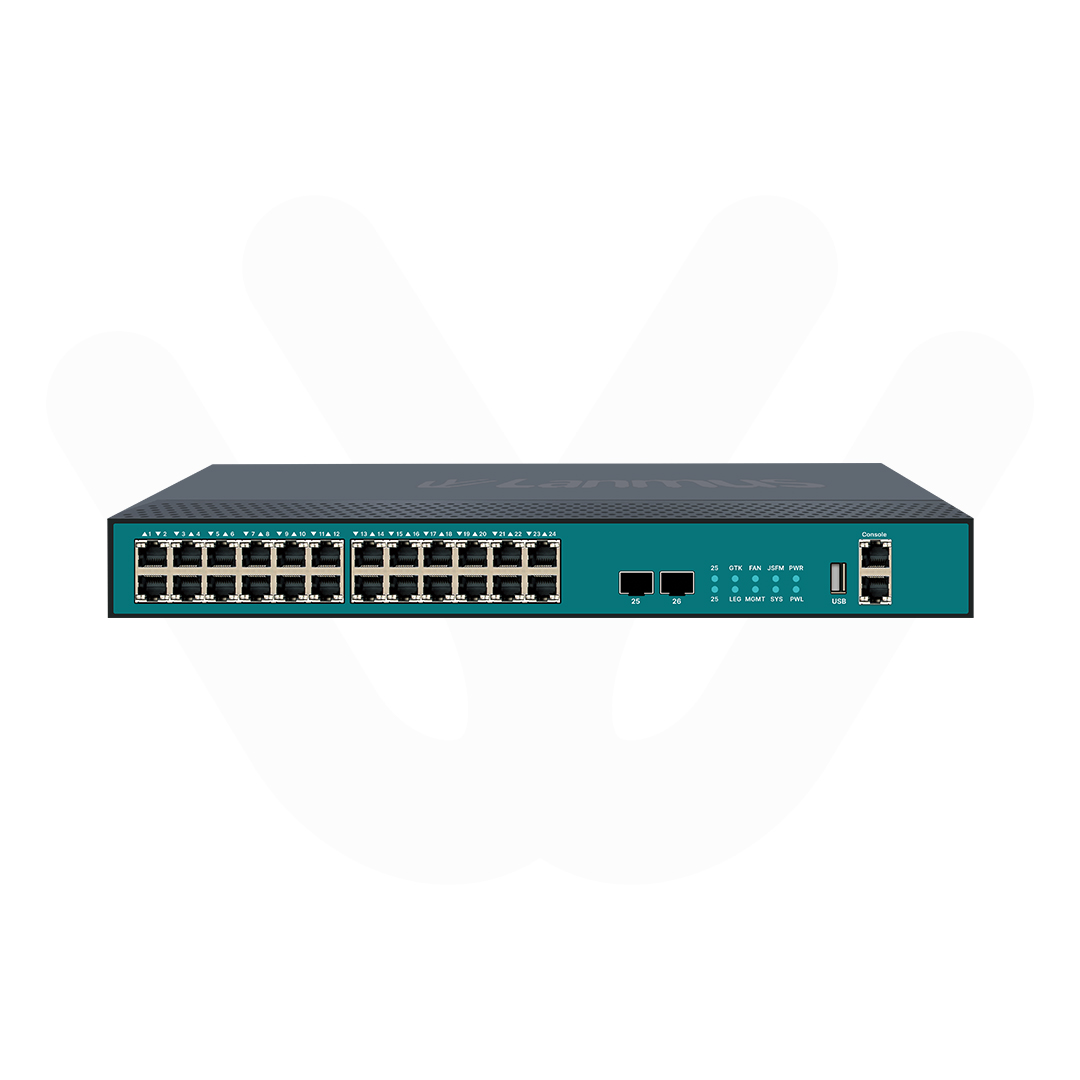

LM-S7026-24X2H
The LM-S7026-24X2H is a Layer 3 switch with high-performance capabilities, offering full 10G access, 40G, and 100G uplink core routing. It is designed to meet the high-density and high-bandwidth requirements of next-generation enterprise networks, data centers, and metropolitan area networks.
Lanmus Ethernet Managed
(LM-S7026-24X2H)
L3 Managed PoE Ethernet Switch 24*1000M Base-X SFP/10GE SFP+
The LM-S7026-24X2H is a high-performance Layer 3 Managed Ethernet Switch purpose-built to address the increasing demands of modern high-density and highbandwidth network environments. Designed for enterprise core networks, data centers, service providers, and metropolitan area networks (MANs), it provides powerful 10G access and ultra-highspeed 40G/100G uplink core routing capabilities. This enables efficient aggregation, fast routing, and resilient connectivity in complex, large-scale infrastructures.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Hightlight Features
- Ethernet Port :
24*1000M Base-X SFP/10GE SFP+,
2*40G /100G QSFP28
- Exchange Capacity : 880Gbps
- Packet Forwarding Rate : 595.24Mpps
- Power Consumption :
Idle ≤33W
Full load: ≤60W
- Ethernet Port :
Key Specification
Key Specifications
Product Information
| Product Category | L3 Managed Ethernet Switch |
| Hardware Specifications | 24* 10GE SFP+ and 2* 100GE QSFP28 |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 26 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 24 (Compatible via SFP+) |
| Number of 10GE SFP+ ports | 24 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 1 (Management port) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE Out ports | 0 |
| Number of PoE/PoE+ Out ports | 0 |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | N/A |
| PoE power pins | N/A |
System Specs
| Forwarding rate | 655 Mpps |
| Switching capacity | 880 Gbps |
Environment
| MTBF | >100,000 hours |
| Operating temperature | 0°C to 45°C |
| Altitude | Up to 5000m |
| Surge protection | 6KV |
Software Specifications
| PoE watchdog | N/A |
| Jumbo frame length (MTU) | 12K |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |
What is LM-S7026-24X2H?
The LM-S7026-24X2H is a Layer 3 managed switch designed for high-speed aggregation between access and core layers. It provides 10G SFP+ connectivity for data collection and 100G uplinks for fast backbone transmission, making it suitable for environments where large volumes of traffic need to be processed efficiently.
In practical deployment, this switch acts as a bridge that connects multiple 10G networks and forwards traffic to high-capacity core systems. It also makes sure that data flow is not hindered when several services, applications, and devices are running simultaneously.
Key Features
Efficient 10G Aggregation for Growing Networks
The switch comes with 24 x 10G SFP+ ports, thus making it ideal to support traffic between multiple access switches, servers, and high-speed endpoints. Rather than having connections spread across devices, this model lets you put them all in one aggregation layer. This enhances traffic management and maintains a clean network structure in an environment where data flow involving multiple sources needs to be handled at a single point.
High-Capacity 100G Uplinks for Core Integration
The 2 × 100G QSFP28 uplink ports are included to make sure that the aggregation traffic flows into the core network without problems. These uplinks help eliminate congestion and ensure a steady throughput as data on a variety of 10G links is collected at the aggregation layer. This is very handy in enterprise backbones, data centers, and campus networks where continuous data transfer between layers is needed.
Advanced Layer 3 Control for Structured Traffic Flow
With support for MPLS, VXLAN, BGP, and IPv6, the switch provides strong Layer 3 capabilities for handling complex routing requirements. These features allow network administrators to segment traffic, optimize routing paths, and manage large-scale environments more effectively. It becomes ease in controlling the movement of data between various departments, services, or even among various sites.
Consistent Throughput Under Heavy Workloads
The switch has a switching capacity of 880 Gbps and a forwarding rate of 655 Mpps to handle large amounts of traffic without failure. This makes applications responsive even when they are used at their peak. It can be internal data transfer, access to cloud, or real-time communication, but the switch ensures the same consistency in all operations.
Built for Continuous Operation and Network Stability
The two-hot swappable power supply model provides an additional level of reliability. Should there be a problem with one of the power modules, they can be changed without closing the switch. Together with its enterprise-level hardware design and protection options, including 6KV surge protection, the device can be used in place of a stable operation in an environment where downtime is intolerable.
Real Client Scenario Handled by Our Engineers
An expanding Oman logistics firm was reporting network slowness at peak working time. They were configured with several 10G access switches tied to an old-fashioned aggregation layer, which was incapable of supporting the growing data stream of warehouse systems, tracking applications, and internal communication devices. This produced real-time delays and influenced day-to-day operations.
Our engineers analyzed the network and then replaced the current aggregation layer with a new genuine LANMUS LM-S7026-24X2H. The switch was implemented to receive the traffic of all 10G access switches and then efficiently switch it to its 100G uplinks to the core network. After its implementation, the data flow was more regular, the delays during peak hours were minimized, and the response of the system was better across departments. The client was able to handle higher workloads without changing the entire network structure.
When Should You Choose This Model?
The model is a good fit in case your network is already based on 10G infrastructure, yet needs a more powerful aggregation layer to support growing traffic. It is effective when there are several access switches, servers, or distribution layers that need to be connected to a high-speed single point before connecting to the core. It can also accommodate 100G uplinks, thus making it appropriate in networks that are planning to expand in the future, since you will only have to scale the bandwidth rather than uprooting the current 10G connections. It is an effective alternative to use in enterprise backbones, data centers, and large office setups where stability, speed, and organised traffic flow are a priority.
Why Choose LM-S7026-24X2H from SPOLLEX
SPOLLEX provides complete LANMUS networking solutions across the UAE, the Middle East, Africa, and Nepal. We help organizations design scalable architectures that match their current load and future expansion plans.
From network planning and installation to configuration and AMC support, our engineers ensure smooth deployment and long-term stability. With genuine LANMUS products and professional technical support, SPOLLEX helps businesses build reliable, high-performance backbone networks.
Features
Order Informations
Device
LM-S7026-24X2H
Power Supply
AC: 100～240V; 47/63Hz
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
440×320×44mm 19” Rack-mount
Frequently Asked Question (FAQ)
The switch is equipped with 24 × 1000M Base-X SFP / 10GE SFP+ ports for flexible 10G access and 2 × 40G/100G QSFP28 uplink ports, enabling efficient aggregation and core connectivity.
Yes, it is compatible with networks that already have 10G, but need more performance. It enhances the aggregation capability and a smooth progression toward faster core infrastructure.
It is common in data centers, enterprise networks, ISPs, and large organizations where large volumes of traffic are needed, and routing is stable.
Yes, it supports MPLS, VXLAN, BGP, and IPv6, and is therefore appropriate in the complex network design of an enterprise and service provider.
The 100G uplinks provide high-speed data transfer from aggregation to core layers, reducing congestion and ensuring smooth traffic flow even under heavy load.
Yes, the switch includes dual hot-swappable power supplies, allowing uninterrupted operation even if one power unit fails or requires maintenance.
It has a switching capacity of 880 Gbps and a forwarding rate of 655 Mpps and is designed with the ability to sustain high-volume traffic without loss of performance.
All the services provided by SPOLLEX are the design, installation, configuration, and AMC services. This guarantees the reliability and ease of operation in your network infrastructure in the long run.
