LM-7032-32H
The LM-7032-32H is a high-performance core switch built for networks where large amounts of data move continuously between systems. It belongs to the LANMUS Extreme switching range and is intended to provide high-speed communication with 100G QSFP28 ports. This enables direct connectivity of servers and storage devices and backbone links without forming bottlenecks.
Lanmus Ethernet Managed
(LM-7032-32H)
L3 Managed PoE Ethernet Switch 32 x 40/100G QSFP 28 port
The LM-7032-32H is a cutting-edge Layer 3 switch designed to deliver unmatched performance, scalability, and reliability for high-bandwidth environments such as data centers, enterprise networks, and metropolitan area networks (MANs). As networks evolve to support more demanding applications, such as cloud computing, big data analytics, and high-performance computing, the need for advanced switching solutions becomes critical.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Hightlight Features
- Product Category: L3 Managed Ethernet Switch
- Model: LM-7032-32H
- Hardware Specification: 32 × 100GE QSFP28
- Switching Layer: L2/L3 Managed Switch with advanced routing support.
- Port Configuration: 32 × 100GE QSFP28 optical ports + 1 × 10/100/1000BASE-T management port.
- Console & USB Ports: 1 × Console port + 1 × USB port
- Switching Capacity: 6.4 Tbps
- Forwarding Rate: 2381 Mpps
- Jumbo Frame Length: 12K
- Routing Features: Supports BGP, OSPF, and IPv6
- Redundancy: Dual hot-swappable power supply (1+1)
- Cooling System: Dual hot-swappable fan modules
- Security Features: Port isolation supported, Broadcast storm control supported.
- Surge Protection: 6KV
- Operating Temperature: 0°C to 45°C
- Altitude Support: Up to 5000 meters
- MTBF: >100,000 hours
- Warranty: 3 Years
- Performance Feature: Full L2/L3 wire-speed forwarding for ultra-high bandwidth environments.
Key Specification
Key Specifications
Product Information
| Product Category | L3 Managed Ethernet Switch |
| Hardware Specifications | 32* 100GE QSFP28 |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 32 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 1 (Management port) |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE Out ports | 0 |
| Number of PoE/PoE+ Out ports | 0 |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | N/A |
| PoE power pins | N/A |
System Specs
| Forwarding rate | 2381 Mpps |
| Switching capacity | 6.4 Tbps |
Environment
| MTBF | >100,000 hours |
| Operating temperature | 0°C to 45°C |
| Altitude | Up to 5000m |
| Surge protection | 6KV |
Software Specifications
| PoE watchdog | N/A |
| Jumbo frame length (MTU) | 12K |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |

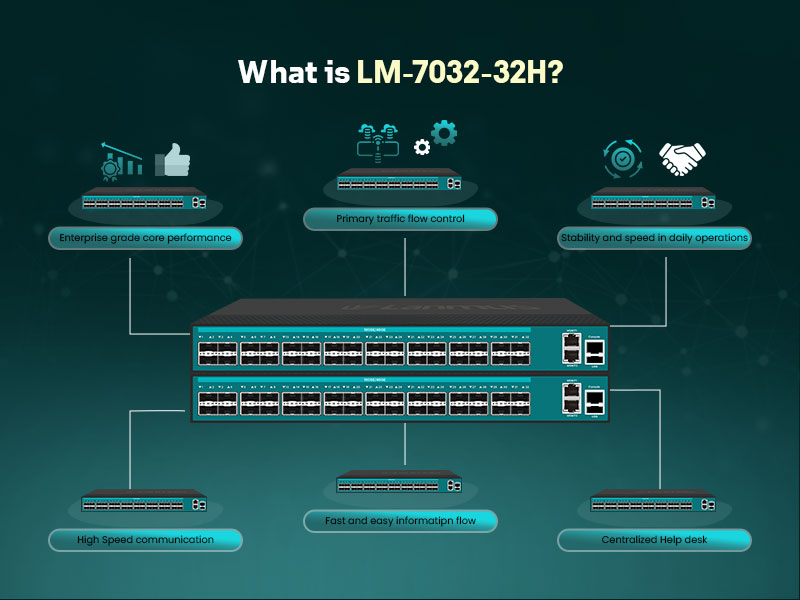

What is LM-7032-32H Extreme Switch?
The LM-7032-32H is a high-performance core switch built for networks where large amounts of data move continuously between systems. It belongs to the LANMUS Extreme switching range and is intended to provide high-speed communication with 100G QSFP28 ports. This enables direct connectivity of servers and storage devices and backbone links without forming bottlenecks.
This switch is normally deployed in the core or the aggregation layer, where it is used to control the primary traffic flow through the network. Furthermore, it makes sure that the information flows fast and with ease among various sections of the infrastructure. This is why it is applicable in the environment where stability, speed, and consistent performance are needed in the daily operations.
Key Features
Ultra High-Speed 100G Connectivity
The LM-7032-32H has 32 QSFP28 ports with 40G and 100G connectivity. This enables high-speed direct connections between servers, storage systems, and core network devices. In practice, this minimises the number of bottlenecks and makes the migration of large amounts of data through them instantaneous.
Massive Switching Capacity for Heavy Traffic
The switch has a switching capacity of 6.4 Tbps and a forwarding rate of 2381 Mpps, making it designed to support very high traffic loads. This is valuable in data centers and ISP networks, where thousands of data sessions operate simultaneously.
Advanced Layer 3 Routing for Network Control
The switch is compatible with routing protocols like BGP and OSPF, along with IPv6. With such features, it is easy to have control over the traffic, effective routing between the networks, and the performance is enhanced in a complex environment with many paths between networks.
High Availability with Redundant Design
Dual hot-swappable power supplies and fan modules ensure continuous operation. When one of the components fails, the system will not stop running. This is essential in the case of environments where it is not acceptable to have downtime.
Efficient Cooling for Stable Operation
The dual fan system helps maintain proper airflow and temperature inside the device. This guarantees stable performance even when the switch is performing heavy workloads over extended periods of time.v
Real Client Scenario Handled by Our Engineers
Last month, one of the data-driven companies in Kenya had approached our team, and they reported having slowed data transfer between the server and storage systems. Their current network was not capable of supporting high-speed traffic during peak periods. We installed the LM-7032-32H in the core layer after analyzing the setup.
Once implemented, the network performance was greatly enhanced. There was faster transfer of data between the systems, less time was taken to respond to applications, and general stability was improved. The 100G links were extremely fast, eliminating bottlenecks, and the redundant power design provided continuous operations. This assisted the client in carrying out business activities easily without delays.
Why Choose LM-7032-32H from SPOLLEX
SPOLLEX is the provider of genuine LANMUS switches with full deployment and support services. LM-7032-32H is suitable in the organization where there is a need to have robust core networking with high-speed data processing and routing.
Our team will help you with all the steps of planning the network architecture, installation, and configuration. We also provide AMC and long-term support contracts to make sure that your network will not have any problems. We have ready stock availability in the UAE, the Middle East, and Africa. We ensure fast delivery and reliable service for your projects.
Features
Order Informations
Device
LM-7032-32H
Power Supply
Dual-FRU AC or DC redundant power supply
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
440mmx410mmx44mm
Frequently Asked Question (FAQ)
The LM-7032-32H is designed to support high-performance networks like data centers, ISP backbones, or large enterprise core networks. It is primarily applied where bulk movements of data require rapid movement between systems with no delay.
In comparison with the conventional switches, this model is oriented to the ultra-high-speed connection with 100G ports and high-tech routing capabilities. It is built at the core-level and not at the access-level connectivity, which makes it suitable to support large-scale traffic.
No, this model is not in favor of PoE. It is used for high-speed data transferring and routing. Wiring to devices that use PoE is typically done through separate access switches.
Yes, having a switching capacity of 6.4 Tbps and a very high forwarding rate, it can support heavy traffic loads in data center environments. It also assures a smooth flow of data when more than two systems are in operation.
It has 2 power supplies and 2 hot-swappable fan modules. This implies that in case of failure of one element, it can be substituted without affecting the entire system, making it run without interruption.
It has 2 power supplies and 2 hot-swappable fan modules. This implies that in case of failure of one element, it can be substituted without affecting the entire system, making it run without interruption.
Yes, it is scalable with high-speed ports, making it appropriate for expanding networks. It is able to sustain growing traffic needs without the need to upgrade regularly.
SPOLLEX provides full services, such as design, deployment, configuration, training, and AMC contracts. This will make sure that your network will be stable and efficient in the long run.
