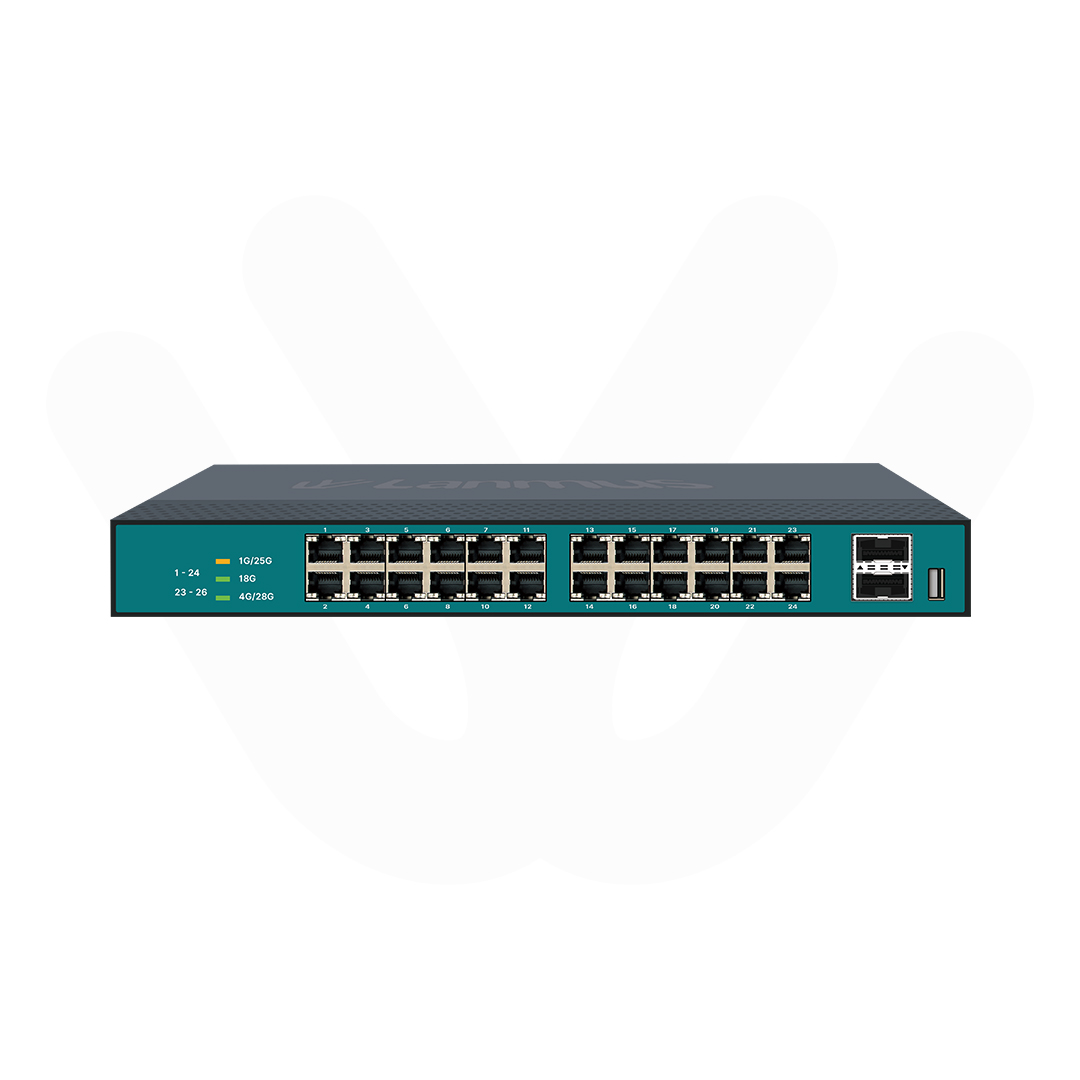

LM-S6026-24T2H
The LM-S6026-24T2H is a multi-gigabit Layer 3 switch that provides flexible speed at the access layer or aggregation layer. This model is not restricted to fixed speeds like the traditional switches; each of the ports can automatically switch between 1G, 2.5G, 5G, and 10G, depending on the device connected.
Lanmus Ethernet Managed
(LM-S6026-24T2H)
L3 Managed PoE Ethernet Switch 24 * 1G/ 2.5G/ 5G/ 10G Base-T
The LM-S6026-24T2H is an advanced Layer 3 Managed Ethernet Switch engineered to meet the evolving needs of modern high-performance networks. Designed for next-generation enterprise networks, data centers, and metropolitan area networks (MANs), it provides unmatched performance, scalability, and reliability to support the ever-growing demands of digital transformation, cloud computing, virtualization, and intelligent applications.
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Gigabit
Hightlight Features
- Product Category: L3 Managed Ethernet Switch
- Model: LM-S6026-24T2H
- Hardware Specification: 24 × Multi-Gigabit RJ45 + 2 × 100G QSFP28
- Switching Layer: L3 Managed Switch with advanced routing support
- Port Configuration: 24 × 1G/2.5G/5G/10G Base-T RJ45 ports + 2 × 40G/100G QSFP28 uplink ports + 1 × 10/100/1000BASE-T management port
- Optical Ports: 2 high-speed QSFP28 uplink ports
- Console & Management Ports: 1 × Console port + 1 × Management port
- Switching Capacity: 880 Gbps
- Forwarding Rate: 655 Mpps
- Jumbo Frame Length: 12K
- Port Features: Multi-rate auto-sensing ports (1G to 10G)
- Routing Features: Advanced L3 routing with VXLAN, BGP, and IPv6 support
- Redundancy: Not specified (standard enterprise-grade reliability)
- Stacking Support: Up to 8 units for scalability
- Security Features: Port isolation supported, Broadcast storm control supported
- Surge Protection: 6KV
- Operating Temperature: 0°C to 45°C
- Altitude Support: Up to 5000 meters
- MTBF: >100,000 hours
- Warranty: 3 Years
- Performance Feature: Stable multi-gig access with high-speed uplink for modern network environments.
Key Specification
Key Specifications
Product Information
| Product Category | L3 Managed Ethernet Switch |
| Hardware Specifications | 24* Multi-Gigabit + 2* 100G QSFP28 |
| Warranty | 3 Years |
Port Specifications
| Total number of optical ports | 2 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 1 (Management port) |
| Number of 10/100/1000/2500BASE-T ports | 24 (Up to 10G) |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 24 |
Power Supply
| Number of PoE Out ports | 0 |
| Number of PoE/PoE+ Out ports | 0 |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | N/A |
| PoE power pins | N/A |
System Specs
| Forwarding rate | 655 Mpps |
| Switching capacity | 880 Gbps |
Environment
| MTBF | >100,000 hours |
| Operating temperature | 0°C to 45°C |
| Altitude | Up to 5000m |
| Surge protection | 6KV |
Software Specifications
| PoE watchdog | N/A |
| Jumbo frame length (MTU) | 12K |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |

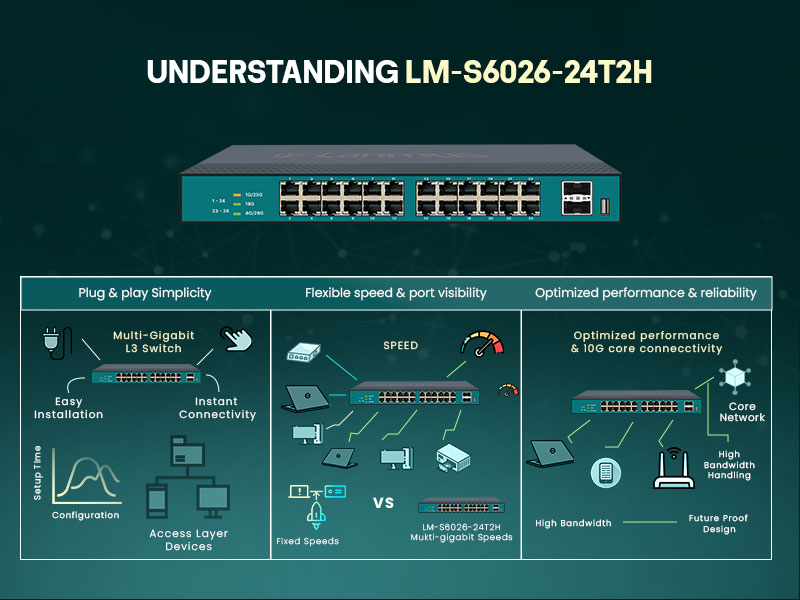

Understanding the LM-402UGP Unmanaged Switch
The LM-S6026-24T2H is a multi-gigabit Layer 3 switch that provides flexible speed at the access layer or aggregation layer. This model is not restricted to fixed speeds like the traditional switches; each of the ports can automatically switch between 1G, 2.5G, 5G, and 10G, depending on the device connected.
In practical deployments, it connects high-speed user devices and access points while forwarding traffic to the core using 100G uplinks. This serves to ensure uniform performance throughout the network without making all the devices run at the same speed.
Key Features
Multi-Gigabit Access for Modern Devices
The switch provides a variety of speeds per port and enables devices to work to their full potential. This can be applied to Wi-Fi 6 access points, high-performance desktops, and other devices that consume a lot of bandwidth.
High-Speed Uplink for Backbone Connectivity
The switch has 2 QSFP28 ports that can transfer data at 40G and 100G, ensuring speed in the transfer of data to the core network. This avoids congestion in case there are several high-speed devices operating simultaneously.
Traffic Management L3
The Layer 3 like VXLAN and BGP, are advanced features that facilitate the management of traffic in the various segments of the network. This enhances network flow and allows more advanced network designs.

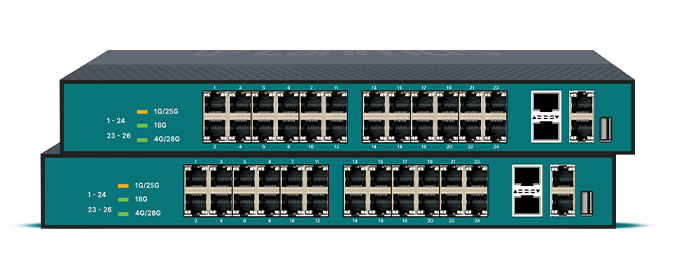

Scalable Architecture with Stacking Support
The switch can be stacked with a maximum of 8 units, enabling networks to grow without the need to rearchitect the whole system. This facilitates control of bigger deployments in one system.
Consistent Performance Under Load
The switch has a high switching capability and forwarding rate, hence it can support many data streams without degradation of its performance. This guarantees steady operation during congested conditions.
Real Client Scenario Handled by Our Engineers
A university campus in Africa faced issues with slow wireless performance despite upgrading to new access points. The problem was not the devices, but the switch layer, which was limited to standard Gigabit speeds.
Our team used the LM-S6026-24T2H to enable access point connections in the multi-gig. This enabled the devices to operate at a faster speed and enhanced network performance. The 100G uplinks enabled the traffic to pass easily to the core network, and the users had an easier and more consistent connection on the campus, so that they could operate their devices and work in a hassle-free environment.

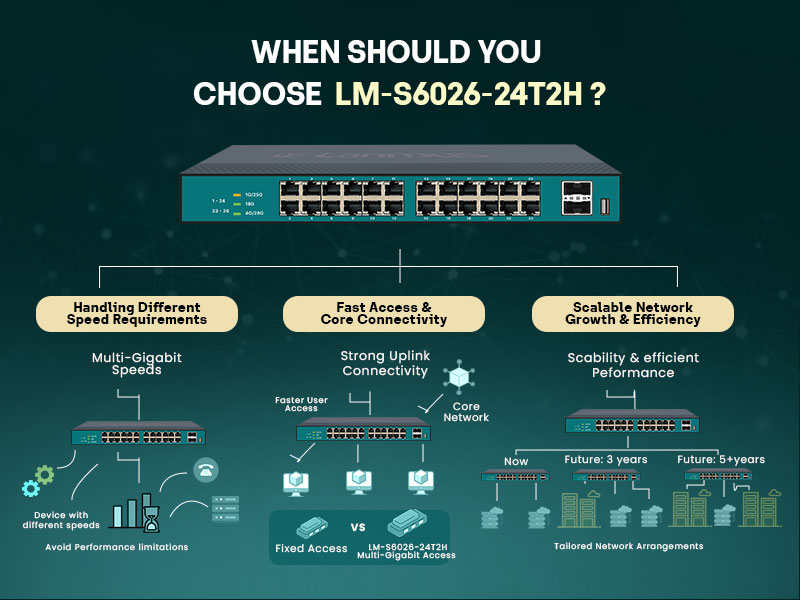

When Should You Choose LANMUS LM-S6026-24T2H?
This switch is a strong option when your network includes devices with different speed requirements, and you want to avoid performance limitations. It is effectively used in configurations where fast user access, up-to-date Wi-Fi systems, and scalable network architectures are crucial, and yet performs efficiently in connection to the core network.
Why Choose LM-S6026-24T2H from SPOLLEX
Whether you are managing a campus network, enterprise office, ISP setup, or smart infrastructure, SPOLLEX provides complete support for your deployment. We help you choose the right configuration based on your device requirements and network goals.
Planning, installation, configuration, and long-term AMC are among our services. Having been available in the UAE, Middle East, Africa, and Nepal, we guarantee your network implementation and support without delays, providing you with a stable and scalable infrastructure.
Features
Order Informations
Device
LM-S6026-24T2H
Power Supply
100～240V; 47/63Hz
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
440X320X44mm 19” Rack-mount
Frequently Asked Question (FAQ)
Multi-gigabit ports allow each connected device to run at its supported speed instead of being limited to 1G. This improves overall performance, especially for modern devices such as Wi-Fi 6 access points and high-speed workstations.
It can replace traditional switches because of its higher flexibility. They work with existing devices and also support newer high-speed systems, making it suitable for gradual upgrades.
Yes, this switch is perfect for wireless networks because it can accommodate wireless devices requiring higher speeds in their operations.
Stacking makes it possible to control multiple switches as one and thus makes network management much easier and scalable.
It is ideal for corporate offices, educational institutes, ISP centers, and networks with dissimilar devices. It is an efficient choice when there is a need for versatility and high performance.
Yes, it includes Layer 3 features such as BGP and VXLAN, which help to manage traffic efficiently across different network segments.
With strong switching capacity and forwarding performance, the switch can process multiple data streams at the same time without causing delays or congestion.
SPOLLEX can offer end-to-end service, including network planning, installation, configuration, and AMC services, ensuring optimal operation of your network and its future scalability.
