Managed PoE Switches
Every business or organization needs a network that is stable, secure, and easy to manage. As the business grows, it adds more devices. These include computers, CCTV cameras, Wi-Fi access points, and servers, which make the network harder to manage. This can cause slow internet, downtime, and connection problems. Many businesses in the UAE struggle with unmanaged switches. These switches can’t monitor or handle rising network traffic.
Managed switches address these issues by allowing you to monitor the network. You can control traffic, secure your data, and manage each port as you wish. Managed switches are the top choice for vendors, system integrators, and project engineers in the UAE. They support complex setups, large teams, and modern IP devices.
At LANMUS, we offer top-notch managed switches. They’re perfect for small offices, data centers, large businesses, ISPs, hotels, schools, and system integrators. Our switches ensure stable, scalable, and secure connectivity.
Quick Info
Hardware Type: Layer 2, Layer 3, PoE, Smart Managed, Industrial
Port Options: 8, 16, 24, 48 ports | Gigabit & 10G SFP+
Suitable For: Enterprises, ISPs, hotels, CCTV integrators, retail chains
Core Benefits: VLANs, QoS, advanced security, PoE power, remote monitoring
Management Support: Web GUI, CLI, SNMP, RMON
PoE Budget (Depending on Model): 65W – 740W
Environments: Indoor offices or industrial temperature-rated locations
Common Use Cases: CCTV networks, Wi-Fi access points, office segmentation
Warranty: 1–3 years, depending on model and project requirements.

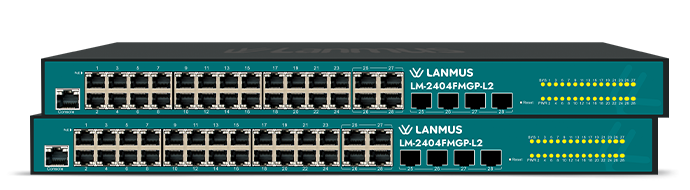

LM-2404FMGP-L2
- Hardware Type: Layer 2 Managed Switch
- Port Type: 24 x 10/100/1000 Mbps RJ45, 4 x SFP Uplink Ports
- Switching Capacity: 56 Gbps
- Forwarding Rate: 41.7 Mpps
- PoE Budget: 370W (PoE/PoE+ supported)
- VLAN Support: 4K VLANs
- Layer: L2
- QoS: 4 priority queues, port-based, 802.1p
- Security: ACLs, 802.1X, Port Security
- Management: Web GUI, CLI, SNMP, RMON
- MTBF: 500,000 hours
- Power Supply: Internal, 100–240V AC
- Operating Environment: 0°C to 70°C (Standard), Optional Industrial Version Available.
- Warranty: 1-3 years
LM-4804XFMGP-L3
- Hardware Type: Layer 3 Managed Switch
- Ports: 48 × Gigabit RJ45 + 4 × 10G SFP+ uplink ports
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- PoE Budget: 740W (PoE/PoE+ supported)
- Layer: L3 switching & routing
- VLAN Support: 4K VLANs
- Routing Support: Static Routing, RIP v1/v2, Inter-VLAN routing
- QoS: 8 queues, 802.1p, DiffServ
- Security: ACLs, DHCP Snooping, IP Source Guard, 802.1X
- Management: Web GUI, CLI, SNMP, RMON, Centralized Management
- Operating Temperature: 0°C to 70°C
- Power Supply: Built-in, AC 100–240V
- MTBF: 500,000 hours
- Warranty: 1–3 years

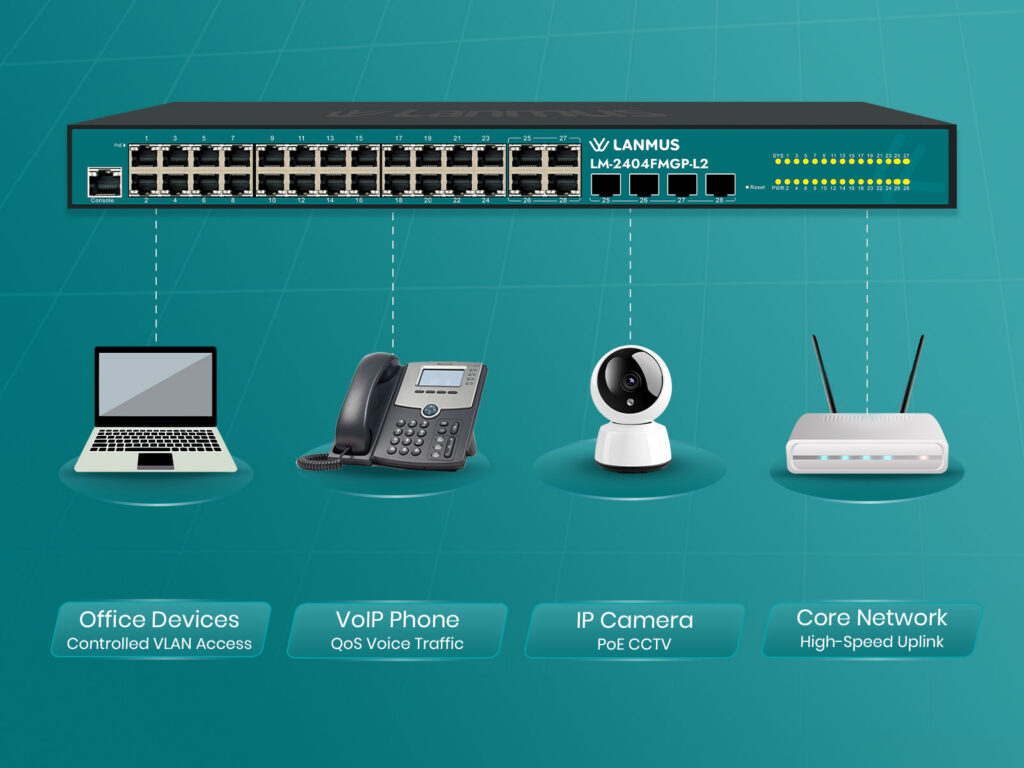

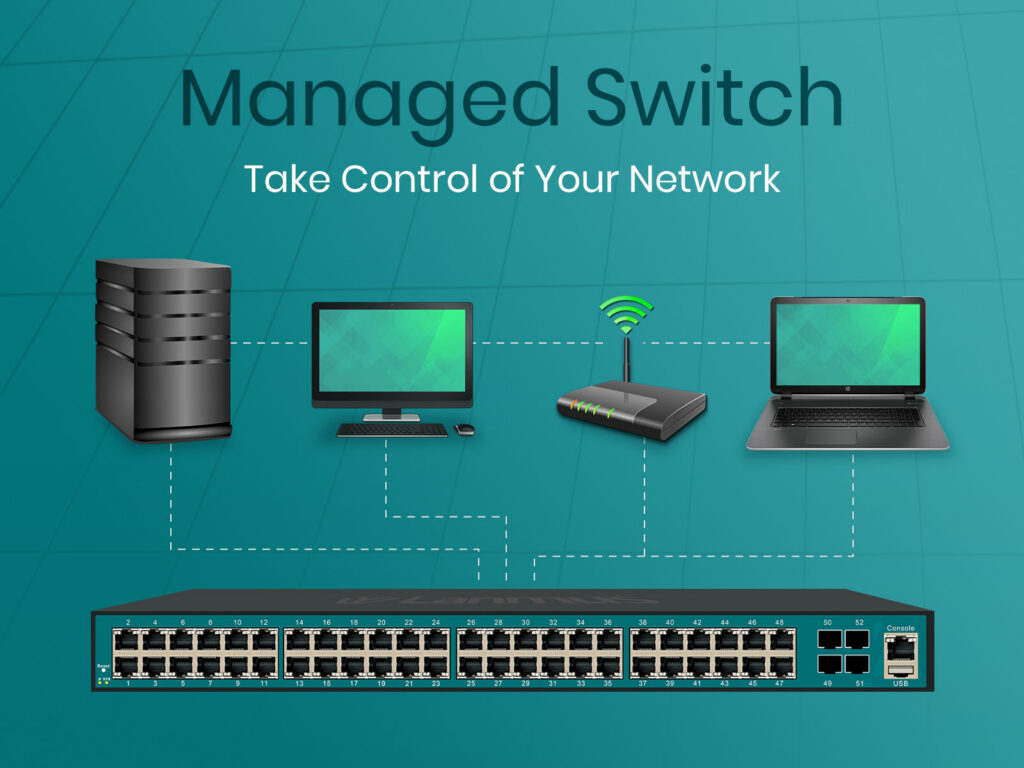

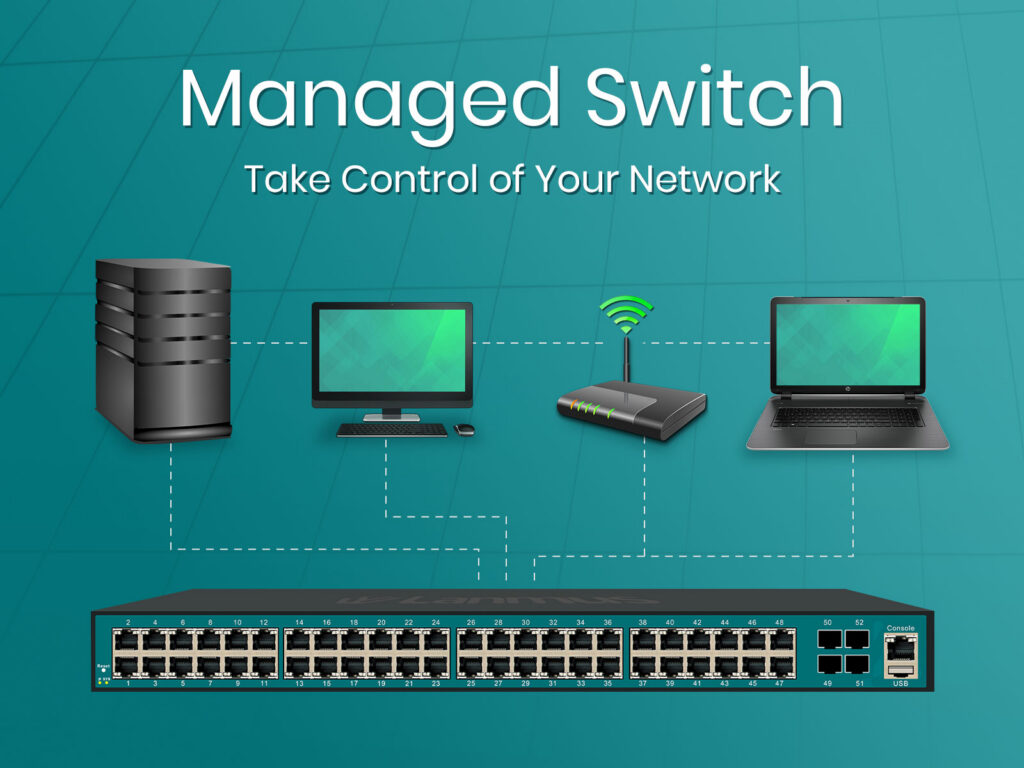

Understanding Managed Switch
A managed switch is a type of network switch. It lets you control how devices talk and communicate with each other. You can watch real-time activity. You can group network traffic, set speed limits, and prioritize important apps. Plus, you can fix issues without touching the device.
An unmanaged switch is like a basic power strip. In contrast, a managed switch is like a smart control panel. It shows how each connection performs and lets you adjust settings.
Managed switches are ideal for:
- Offices with many departments
- CCTV projects with multiple cameras
- Hotels, malls, schools, and hospitals
- Multi-floor and multi-site networks
- High-security environments
Types of Managed Switches
Layer 2 Managed Switches – Best for network segmentation using VLANs. Example: Dividing HR, Sales, and Admin networks.
Layer 3 Managed Switches – Can route traffic between different networks. Example: Connecting different floors or buildings with fast internal routing.
Smart / Easy Managed Switches – Essential management tools with simple setup. Example: Retail stores, clinics, small offices.
PoE Managed Switches – Provide data and electrical power using one cable. Example: Powering IP cameras and access points in malls or offices.
Industrial Managed Switches – Designed for extreme heat, dust, and vibration. Example: Factories, warehouses, outdoor security poles.
LANMUS Managed Switch Options
The managed switch models currently available in LANMUS are:
1. LM-2404FMGP-L2 (Layer 2 Managed Switch)
A practical solution for projects that need strong performance and simple control.
- 24 Gigabit Ethernet ports
- 4 SFP uplink ports
- Ideal for office segmentation using VLANs
- Suitable for CCTV and medium-sized networks
- Supports QoS, Port Mirroring, IGMP Snooping, and security filters
- Works well for department-based networks, retail chains, and access point distribution
This switch is a good fit for vendors who want easy deployment with full Layer 2 control features.
2. LM-4804XFMGP-L3 (Layer 3 Managed Switch)
A high-capacity switch designed for large, demanding networks.
- 48 Gigabit ports
- 4 high-speed 10G SFP+ uplinks
- Built-in routing features for inter-network communication
- Supports dynamic routing protocols, VLAN routing, and advanced QoS
- Best for large offices, enterprise buildings, data-intensive CCTV setups, and multi-floor networks
This model is perfect for vendors who manage heavy data loads. It also suits networks with different subnets that need fast routing.
Why Choose LANMUS Managed Switches
- Easy installation and integration for UAE projects.
- Stable performance under heavy load.
- Clear management interface for technicians.
- Strong security features for sensitive environments.
- Suitable for CCTV, access points, IP phones, and servers.
- Reliable build quality for long-term use.
- Support from trained UAE distributors and system integrators.

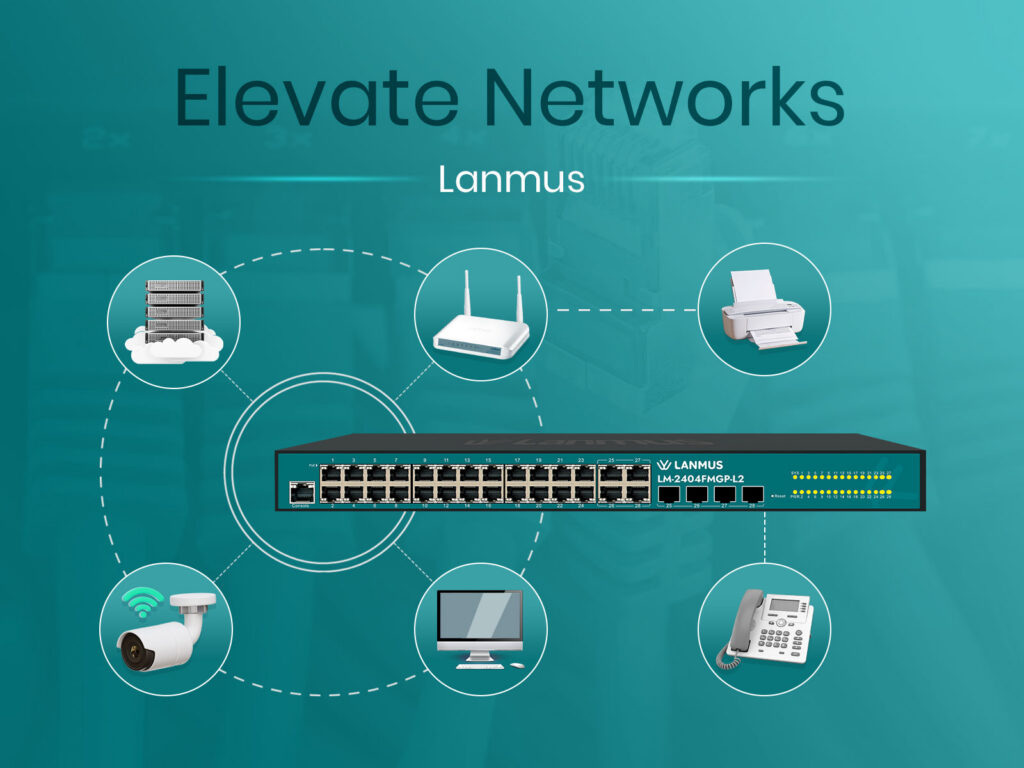

Boost your Network with LANMUS
A strong network needs more than fast ports—it needs control, visibility, and security. Managed switches provide all three. If you’re building a new office, upgrading CCTV, or connecting buildings, LANMUS managed switches help you work with confidence.
LANMUS offers a range of solutions for modern business networks in the UAE. They provide everything from the dependable LM-2404FMGP-L2 to the high-performance LM-4804XFMGP-L3.
Explore Switches by Port
Find the perfect network switch tailored to your needs, whether you require a compact 5-port option for small setups or a high-capacity 48-port switch for enterprise networks. Browse our selection to ensure seamless connectivity and optimal performance for your business.
Filter to find the right 4-port switch – browse by switch management style, port-speed PoE capabilities and more.
Easily find the perfect 8-port switch for your deployment. Explore port speed, PoE capabilities for networking
Find the perfect 16-port switch by filtering for PoE, management style, and port speed.
Filter to find a 24-port switch – browse switches by PoE, management style, port-speed and uplinks.
Filter to find the ideal 48-port switch by management style, port speed, PoE, and many more.
Frequently Asked Question (FAQ)
Managed switches allow for advanced control and monitoring. Unmanaged switches just pass traffic. Managed switches let IT teams create VLANs, prioritize key apps, monitor port activity, and spot network issues early. In the UAE, offices, malls, and CCTV systems depend on stable networks. This control reduces downtime and cuts maintenance costs. It also helps businesses grow their networks easily.
Yes, LANMUS managed switches are designed to handle both types of traffic simultaneously. They support Quality of Service (QoS). This prioritizes video streams for CCTV, so office data transfer isn’t affected. This keeps your surveillance operations running smoothly. Your business apps stay fast, even during busy hours.
VLANs (Virtual Local Area Networks) split a network into groups. This keeps devices on one VLAN from accessing another without permission. For example, your finance department can operate on a different VLAN from public Wi-Fi in a hotel or mall. It limits unauthorized access and cuts down broadcast traffic. This also protects sensitive data and keeps the network efficient.
Yes, LANMUS switches use standard networking protocols. They work well with many third-party devices. This includes routers, access points, CCTV cameras, and PoE devices from popular brands. This lets integrators and vendors create flexible networks. They aren’t tied to one brand. This is especially useful in the UAE, where system needs vary.
Managed switches require minimal maintenance but benefit from proactive care. Check port status regularly, monitor traffic logs, and update firmware. This helps fix vulnerabilities and improve performance. Store switches in a clean, temperature-controlled space, especially indoors. Also, manage cables well to prevent accidental disconnections.
Industrial managed switches are made for tough environments. They can handle extreme temperatures, dust, and vibrations that would harm regular hardware. They feature strong metal housings. They work well in a wide temperature range from -40°C to +75°C. Plus, they support redundant power. They work great in factories, warehouses, outdoor CCTV poles, and transport systems. Standard office switches can't handle these environments.
Yes, LANMUS managed switches allow remote monitoring. You can use Web GUI, SNMP, or cloud management platforms. Remote monitoring lets technicians and vendors check device status. They can view traffic patterns, adjust settings, and troubleshoot issues without needing to visit the site. This is particularly helpful for multi-branch offices and large installations in UAE cities.
PoE (Power over Ethernet) lets switches deliver power to devices like IP cameras, VoIP phones, and access points. This happens through the same Ethernet cable that carries data. LANMUS switches handle power distribution. This ensures devices get stable power without needing extra adapters. This simplifies installations and reduces cabling costs in offices, malls, and outdoor setups.
Absolutely. Managed switches are designed for scalability. You can link several switches using uplink ports. This helps you build bigger networks and segment devices into VLANs as your business expands. This flexibility makes LANMUS switches a great long-term choice. They work well in offices, malls, hotels, and industrial projects. Plus, you won’t need to replace the hardware often.
LANMUS offers a warranty of 1 to 3 years, based on the model. This includes both replacement and technical support. Local distributors and system integrators in the UAE provide on-site help, firmware updates, and setup advice. Vendors gain from bulk pricing. They also receive project consultation and help with complex network designs.
