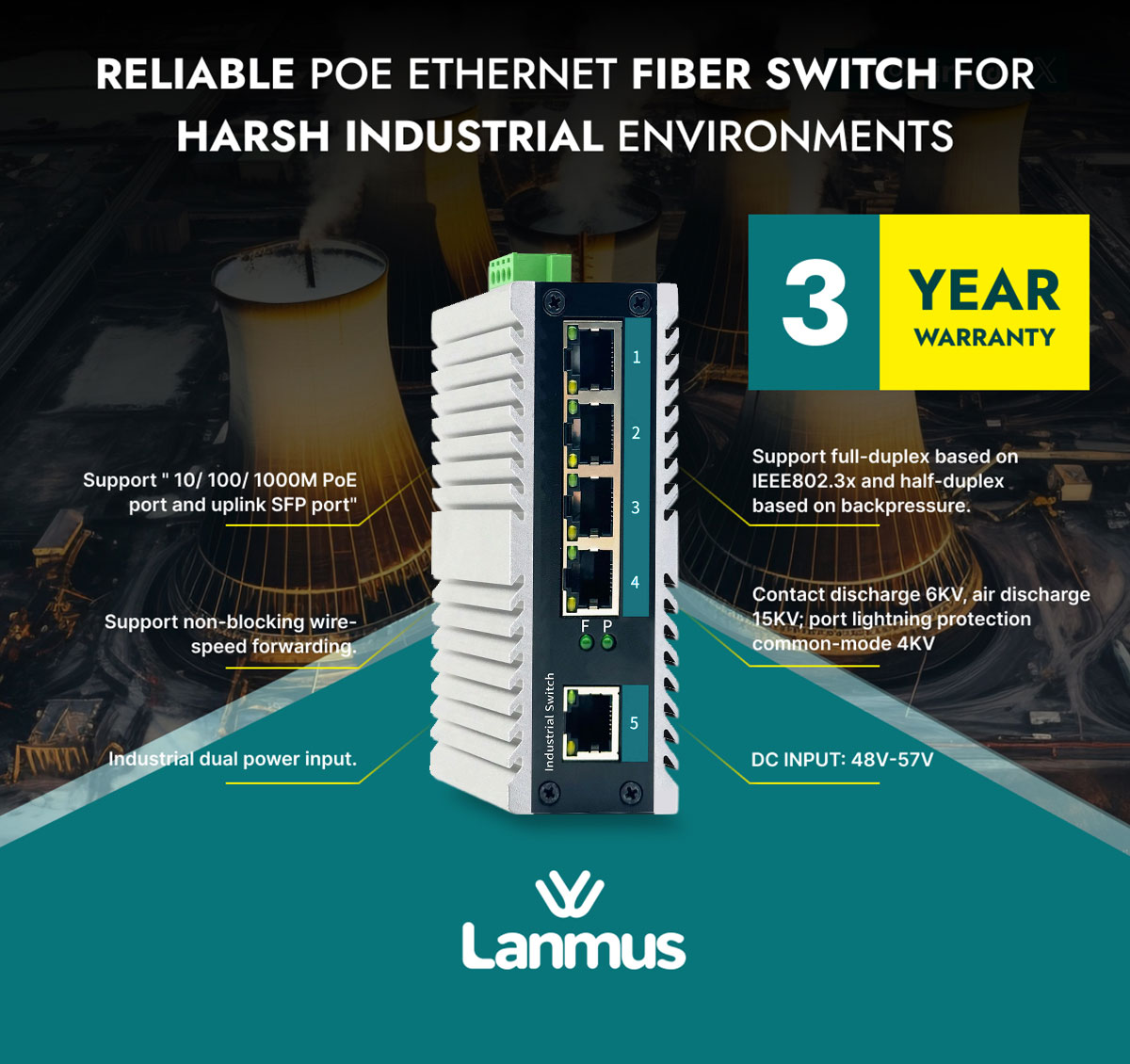

LM-500UGP-I
In industrial locations, networks are not a “support system”; they are part of daily operations. A single switch failure can shut down CCTV coverage, break communication between machines, or leave remote sites blind. In many projects, this happens not because the network design is wrong, but because the hardware is not built for the environment.
The LM-500UGP-I Industrial Unmanaged Switch is designed for exactly these situations. It provides stable Gigabit connectivity in a small industrial design. This makes it perfect for edge locations with limited space and harsh conditions.
This model is popular for CCTV poles, factory control panels, warehouses, outdoor cabinets, and transport infrastructure in the UAE. Here, reliability is more important than advanced setup.
Lanmus Ethernet Industrial Unmanaged (LM-500UGP-I)
4 Port 10/100/1000 Base-T, 4GE+1GE Uplink Ports
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Gigabit
Hightlight Features
- Model: LM-500UGP-I
- Switch Type: Industrial Unmanaged
- Ethernet Ports: 5 × Gigabit
- Operation: Plug-and-play
- Housing: Industrial metal enclosure
- Mounting Options: DIN-rail or wall mount
- Environment: Harsh industrial and outdoor cabinet use
- Typical Network Size: Small to medium edge deployments
- Maintenance Requirement: Very low
Key Specifications
Product Information
| Product Category | Industrial Unmanaged PoE Switch |
| Warranty | 3 years |
Port Specifications
| Total number of optical ports | 1 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 1 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 4 |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply and Consumption
| Number of PoE Out ports | 4 |
| Number of PoE/PoE+ Out ports | 4 |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | Not explicitly stated; 30W max per port |
| PoE power pins | 1,2(+) and 3,6(-) |
System Specifications
| Forwarding rate | 7.44 Mpps |
| Switching capacity | 10 Gbps |
Environment and Reliability
| MTBF | Not specified |
| Operating temperature | -40°C to +75°C |
| Altitude | Not specified |
| Surge protection | 4KV common-mode, 2KV differential mode |
Software Specifications
| PoE watchdog | Not specified |
| Jumbo frame length (MTU) | Not specified |
Security
| Port isolation | Not specified |
| Broadcast storm control | Not specified |

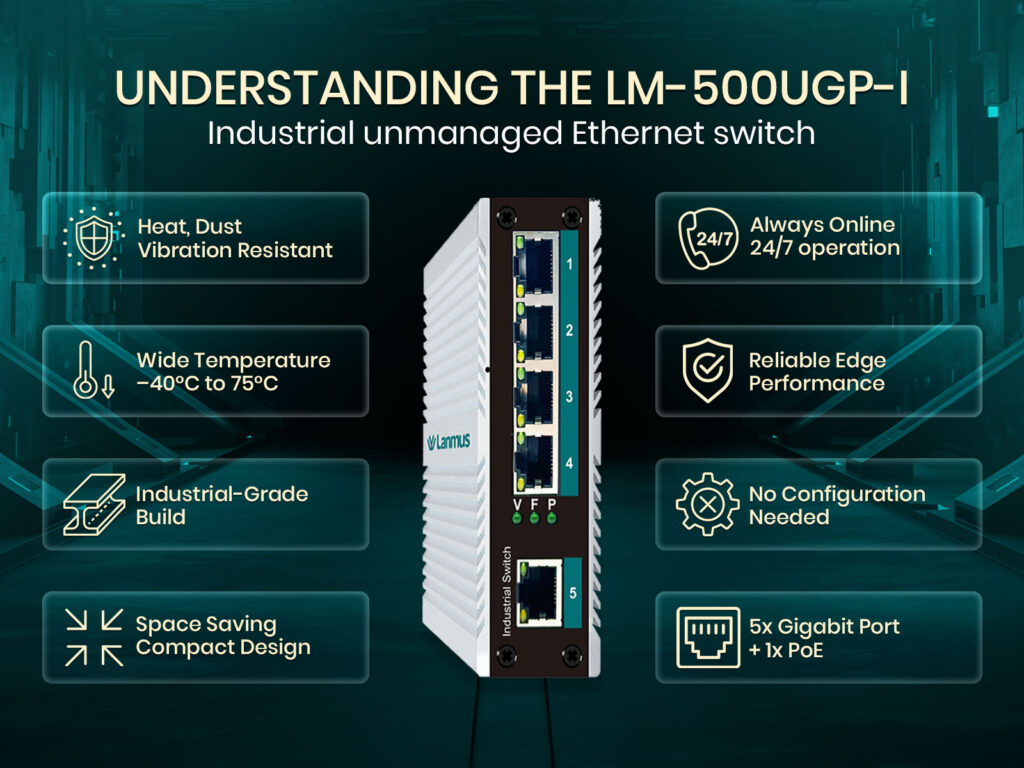

Understanding the LM-500UGP-I Industrial Switch
The LM-500UGP-I is a 5-port industrial unmanaged Ethernet switch. It’s built for small to medium industrial networks that work in harsh environments. It is meant to run continuously without supervision, configuration, or software support.
From field deployments and integrator feedback, this switch is usually selected when:
- Networks must stay online 24/7
- The environment includes heat, dust, or vibration
- Installation time needs to be short
- Space inside cabinets or panels is limited
- Network design is simple and fixed
It acts as a dependable edge-level switch. It connects nearby devices and keeps performance steady.
Key Features
Industrial-Grade Construction
The switch is enclosed in a rugged metal housing that helps protect internal components from:
Dust and airborne particles
Mechanical vibration
Electrical interference
Temperature changes
This makes it suitable for factory floors, roadside cabinets, and warehouse installations.
Simple Plug-and-Play Deployment
The LM-500UGP-I does not require:
Software setup
Command-line access
Network configuration
Installers can power it on, connect devices, and walk away. This is especially useful in CCTV projects and remote installations where time and access are limited.
Reliable Gigabit Performance
All five Ethernet ports support Gigabit speed, ensuring:
Smooth video transmission from IP cameras
Stable communication between industrial devices
Low latency for monitoring systems
Traffic is handled automatically, without manual tuning.
Compact Design for Edge Locations
Because of its small footprint, the switch fits easily inside:
Control panels
Outdoor CCTV cabinets
Pole-mounted enclosures
This makes it ideal for distributed networks where each location needs a small but reliable switch.
Performance & Real-World Behavior
In several UAE projects, integrators swapped out standard commercial switches for LM-500UGP-I units. This change came after heat and dust caused repeated failures.
After deployment, they observed:
- Stable network performance during the summer months
- No unplanned outages
- Reduced site visits for troubleshooting
- Longer operational lifespan
These results show why unmanaged industrial switches are often the best choice for edge environments.
Applications & Use Cases
The LM-500UGP-I is widely used in:
- Outdoor CCTV camera networks
- Warehouse security and monitoring systems
- Factory machine and sensor connectivity
- Traffic and transport monitoring infrastructure
- Utility and energy monitoring sites
- Remote industrial control cabinets
It is particularly effective where simplicity, durability, and uptime are priorities.
When LM-500UGP-I Is the Right Choice
This model is a good fit when:
- The network design is simple and unlikely to change
- Devices are connected locally
- The environment is harsh or outdoor
- Advanced configuration features are not required
If your project needs VLANs, traffic prioritization, or remote monitoring, use an industrial managed switch.

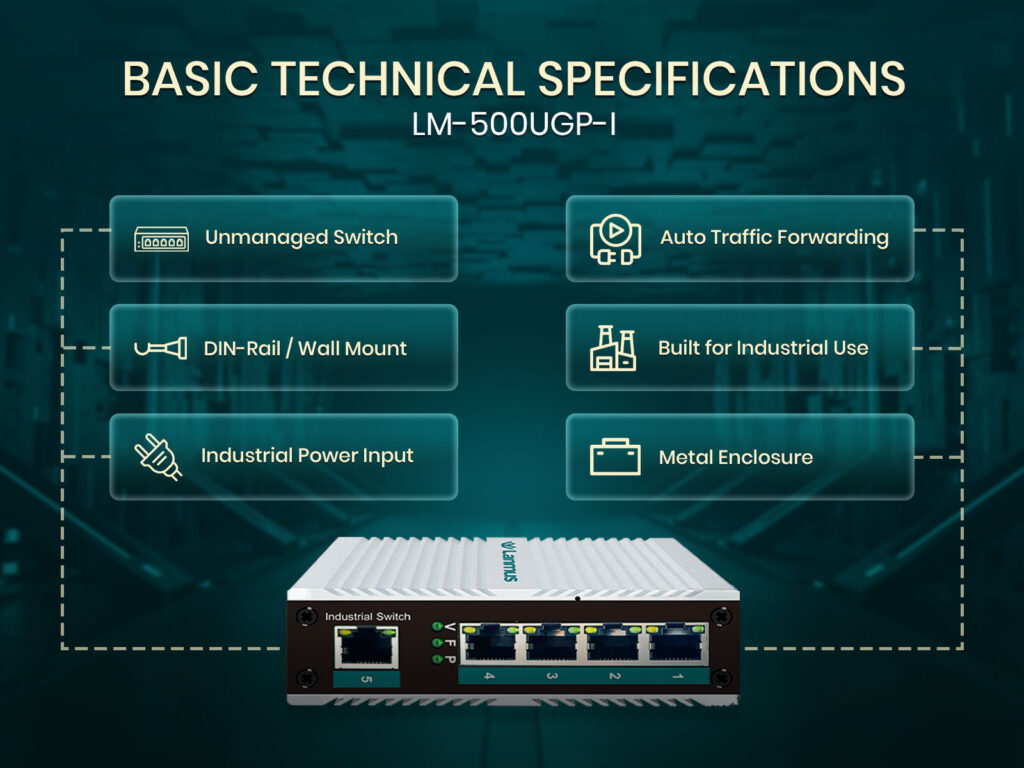

Basic Technical Specifications
- Ethernet Ports: Five Gigabit Ethernet ports for high-speed connectivity
- Switch Type: Industrial unmanaged Ethernet switch
- Housing: Metal enclosure designed for industrial environments
- Mounting Options: DIN-rail mounting or wall mounting
- Power Input: Industrial-grade power support for unstable conditions
- Operating Mode: Plug-and-play with automatic traffic forwarding
- Operating Environment: Designed for heat, dust, vibration, and continuous use
Why Choose LM-500UGP-I from LANMUS?
LANMUS supplies industrial networking solutions built for real operating conditions, not lab environments.
By choosing LM-500UGP-I from LANMUS, you get:
- Products suited for the UAE climate and industrial sites
- Consistent availability for ongoing projects
- Technical guidance during planning and deployment
- Support for system integrators and vendors
- A solution designed for long-term use
Contact [email protected] OR visit https://lanmus.com/
Features
Product Comparision
24 *10/100/1000 PoE BaseT
4*100/1000Base-X
PoE ports
Max. PoE budget
Switching capacity
Forwarding rate
MAC address table
VLAN
Dimensions (W x D x H)
Weight (With package)
Loop prevention
Flow control
Port isolation
Broadcast storm suppression
Cloud management
Power consumption
Power supply
Fan
Port surge
Operating temperature
Operating humidity
MTBF
Warranty
LM-2404FMGP-L2
24
4
4
--
56Gbps
8K
--
440mm* 300mm*44mm
--
--
AC:100-240V50/60Hz)
--
-20~+55°C
5%~90% RH
--
3 years
LM-4804XFMGP-L3
48
4
4
--
176Gbps
32K
--
440mm* 300mm*44mm
--
--
AC100-240V 50/60Hz
--
-20~+55°C
5%~90% RH
--
3 years
Product Comparison
LM-500UGP-I
LM-800UGP-I
Interface Characteristics
Fixed Port
4 Port 10/100/1000 Base-T, 4GE+1GE Uplink Ports
8 Port 10/100/1000 Base-T
Ethernet Port
10/ 100/ 1000Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
10/ 100/ 1000Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-T: Cat5e or later UTP(≤100 meter) 1000BASE-T ： Cat5e or later UTP(≤100 meter)
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-T: Cat5e or later UTP(≤100 meter) 1000BASE-T ： Cat5e or later UTP(≤100 meter)
Chip Parameter
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u100Base-SX, IEEE802.3x IEEE802.3ab 1000Base-T；IEEE802.3z 1000Base-X；
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 100Base-SX, IEEE802.3x IEEE802.3ab 1000Base-T；IEEE802.3z 1000Base-X；
Forwarding Mode
Store and Forward(Full Wire Speed)
Store and Forward(Full Wire Speed)
Switching Capacity
10Gbps
16Gbps
Buffer Memory
7.44Mpps
11.9Mpps
MAC
8K
8K
PoE characteristics
power supply
DC : 52V
DC : 52V
PoE power supply method
Supports 1,2+, 3,6-power supply
Supports 1,2+, 3,6-power supply
PoE output power
Each port has a power supply of 15.4w and a maximum power of 30w per port
Each port has a power supply of 15.4w and a maximum power of 30w per port
Physical Parameter
Operation TEMP /Humidity
-40 +75 C;5%~90% RH Non condensing
-40~+75°C;5%~90% RH Non condensing
Storage TEMP /Humidity
-40 +85 C;5%~95% RH Non condensing
-40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H)
116mm* 86.5mm*32.5mm
141mm* 100mm*41mm
Installation
Desktop, DIN rail
Desktop, DIN rail
Product Resources
- Download Product Datasheet
Order Informations
Device
LM-500UGP-I
Power Supply
DC : 52V
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
116mm* 86.5mm*32.5mm
Frequently Asked Question (FAQ)
Office switches are designed for clean, air-conditioned rooms and short duty cycles. In contrast, LM-500UGP-I uses industrial-grade components and a metal enclosure that can handle heat, dust, and vibration. This makes it more reliable in edge locations such as outdoor cabinets and factory panels.
Yes. The switch is fully unmanaged and requires no configuration or monitoring. Once installed, it operates automatically, making it ideal for remote or unmanned sites.
It works well for small CCTV clusters where cameras are connected locally. For larger systems or long-distance transmission, it is often paired with higher-port or fiber-based switches upstream.
Many industrial installations have limited cabinet space. The compact design allows the switch to fit easily inside control panels or pole-mounted enclosures without redesigning the cabinet layout.
No. Because it is unmanaged, there is no firmware to update and no monitoring interface. This reduces maintenance effort and eliminates software-related issues.
Yes. It is designed to operate continuously in high-temperature industrial environments when installed correctly.
Yes. It uses standard Ethernet protocols and integrates seamlessly with both unmanaged and managed LANMUS switches.
For simple and fixed automation networks, yes. It provides stable connectivity for controllers and monitoring devices without adding configuration complexity.
With proper installation, industrial switches generally last significantly longer than office switches in harsh environments due to stronger components and enclosure design.
The LM-500UGP-I is available directly from LANMUS. You can contact the team for pricing, technical advice, and project support.
