LM-2404XMGP-IL3
The LM-2404XMGP-IL3 is a powerful Layer 3 managed switch. It's built for big, essential networks. It's designed for places where stable networks, many ports, and smart routing are essential. This model is commonly used as a core or aggregation switch. You’ll find it in industrial campuses, smart city projects, energy facilities, and big surveillance systems.
The LM-2404XMGP-IL3 handles heavy traffic loads. It works across multiple zones or buildings, unlike smaller industrial switches at the network edge. It offers advanced routing and high PoE capacity. It also has fiber connectivity. This ensures reliable performance in the extreme conditions often seen in the UAE.

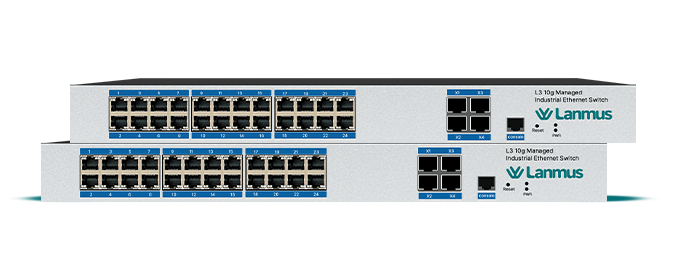

Lanmus Ethernet Managed (LM-2404XMGP-IL3)
24 Port 10/100/1000 Base-T, 24GE + 4 10G SFP+
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Hightlight Features
- Hardware Type: Industrial Layer 3 Managed Switch
- Port Type: 24 × Gigabit Ethernet RJ45 (PoE supported)
- Uplink Ports: 4 × SFP (fiber uplinks)
- Layer: Layer 3 (advanced switching & routing)
- PoE Budget: 740W
- VLAN Support: Large-scale VLAN segmentation
- Routing Support: Inter-VLAN routing for complex networks
- QoS: Advanced traffic prioritization
- Security: ACLs, access control, port isolation
- Management: Web GUI, CLI, SNMP
- Mounting Type: DIN-rail / Wall mount
- Operating Temperature: -40°C to +75°C
- Power Input: Dual redundant DC power
- Build: Heavy-duty industrial metal enclosure
- Warranty: 1–3 years
Key Specifications
Product Information
| Product Category | Industrial Layer 3 Managed PoE Switch |
Hardware Specifications
| Warranty | 3 years |
Port Specifications
| Total number of optical ports | 4 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 0 |
| Number of 10GE SFP+ ports | 4 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 24 |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply and Consumption
| Number of PoE Out ports | 24 |
| Number of PoE/PoE+ Out ports | 24 (IEEE802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
System Specifications
| Forwarding rate | 96 Mpps |
| Switching capacity | 128 Gbps |
Environment and Reliability
| MTBF | Not specified |
| Operating temperature | -40 to +80°C |
| Altitude | Not specified |
| Surge protection | 6KV 8/20us |
Software Specifications
| PoE watchdog | Not specified (supports scheduling and status monitoring) |
| Jumbo frame length (MTU) | Not specified |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |

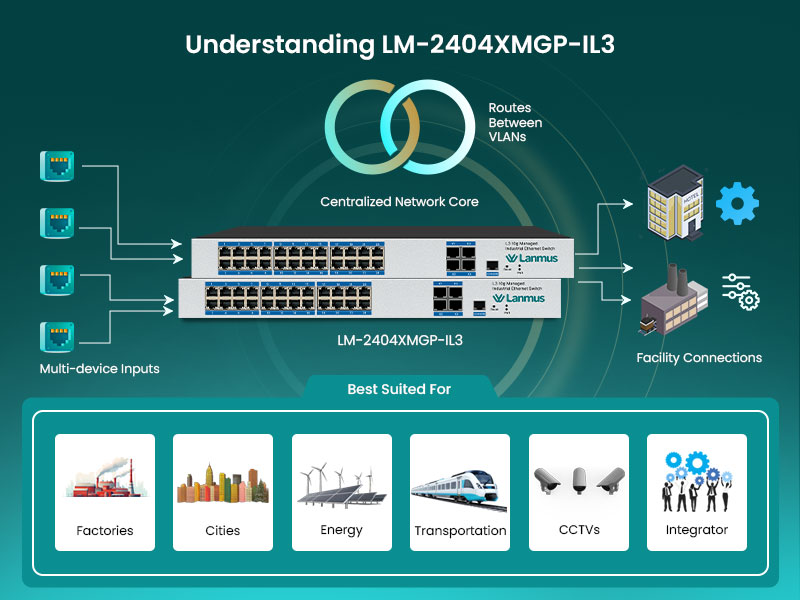

Understanding LM-2404XMGP-IL3
The LM-2404XMGP-IL3 is designed to sit at the center of industrial networks. It gathers traffic from several access switches. It connects devices, systems, and control centers. It also routes data between VLANs without interruption.
This switch removes the need for extra routing hardware in industrial networks across multiple buildings or outdoor areas. Its high port count lets many cameras, access points, sensors, and controllers connect directly. This keeps traffic flow organized and secure.
Ideal for:
- Large factories and industrial campuses
- Smart city and infrastructure projects
- Energy plants and utility networks
- Transportation hubs and rail systems
- High-density industrial CCTV deployments
- System integrators managing enterprise-scale projects
Key Features
24 Industrial Gigabit Ethernet Ports
Supports dense deployments of industrial devices without requiring multiple access switches.
4 Fiber Uplink Ports
Enable long-distance, interference-free connections between buildings, substations, or outdoor enclosures.
Layer 3 Core Routing
Handles routing between VLANs internally, reducing latency and simplifying network architecture.
High PoE Capacity (740W)
Designed to power large numbers of IP cameras, wireless bridges, and industrial access points directly.
Industrial-Grade Design
Operates reliably in extreme heat, dust, vibration, and electrically noisy environments.
Performance & Real-World Behavior
This switch is engineered for continuous, high-throughput operations. It manages simultaneous traffic from hundreds of connected devices without congestion.
QoS gives priority to important systems. This includes surveillance feeds, automation signals, and safety networks. Fiber uplinks keep networks strong over long distances. This makes them great for outdoor and campus setups.
The LM-2404XMGP-IL3 stands out against mid-range industrial switches. It excels in network aggregation, scalability, and resilience.
Applications & Use Cases
- Industrial Campuses: Central switching for multiple buildings
- Smart City Projects: Traffic systems, public surveillance, and monitoring
- Energy & Utilities: Substations, control rooms, and field equipment
- Transportation & Railways: Signaling, cameras, and monitoring systems
- Large CCTV Networks: High PoE power for extensive camera installations
- System Integrators: Core switch for complex, multi-site deployments

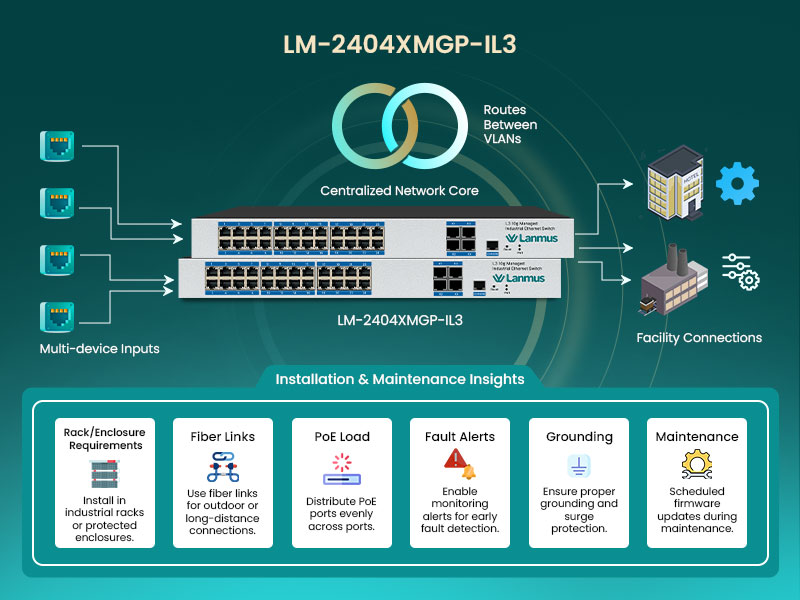

Installation & Maintenance Insights.
- Install in industrial racks or protected enclosures
- Use fiber uplinks for outdoor or long-distance links
- Distribute PoE loads evenly across ports
- Enable monitoring alerts for early fault detection
- Ensure proper grounding and surge protection
- Schedule firmware updates during maintenance windows
Why Choose LM-2404XMGP-IL3
- Designed for large-scale industrial core networks
- Eliminates need for external routers in many setups
- Handles high device density with ease
- Strong PoE output for demanding deployments
- Built for extreme UAE environmental conditions
- Reduces network downtime and maintenance costs
- Supported by LANMUS expertise and supply chain
Availability in UAE – Order LM-2404XMGP-IL3 from LANMUS
The LM-2404XMGP-IL3 Industrial Managed Switch is sold by LANMUS. It’s perfect for big industrial, infrastructure, and smart city projects in Dubai and the UAE.
LANMUS offers what you need. We offer technical help and reliable stock, whether you need one core switch or many for nationwide use. Plus, we support you after your purchase.
Contact: [email protected],
Support: Project sizing, network design assistance, and bulk pricing
Features
Product Comparison
LM-802FMGP-IL2
LM-1608C4XMGP-IL3
LM-2404XMGP-IL3
Interface Characteristics
Fixed Port
8 Port 10/100/1000 Base-T PoE ports, 8GE+2SFP Uplink Ports
16 Port 10/100/1000 Base-T, 16GE + 8Combo + 4 10G SFP+
24 Port 10/100/1000 Base-T, 24GE + 4 10G SFP+
Ethernet Port
Port 1-8 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Port 1-16 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Port 1-24 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
Optical Fiber Port
1G SFP optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Fiber Port Expansion
Support Turbo overclocking 2.5G optical module expansion and ring network
Support Turbo overclocking 2.5G optical module expansion and ring network
Support Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance
Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G); Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.
Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G); Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.
Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G); Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.
Chip Parameter
Network Management Type
L2
L3
L3
Ring network
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100BaseTX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100BaseTX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100BaseTX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Store and Forward(Full Wire Speed)
Store and Forward(Full Wire Speed)
Switching Capacity
56Gbps
128Gbps
128Gbps
Buffer Memory
41.6Mpps
96Mpps
96Mpps
MAC
16K
32K
32K
Reset Switch
Yes, Press and hold the reset switch for 5s and release it to restore the factory settings
Yes, Press and hold the reset switch for 5s and release it to restore the factory settings
Yes, Press and hold the reset switch for 5s and release it to restore the factory settings
Power
Power Supply Pin
Default 1/2 (+), 3/6 (-)
Default 1/2 (+), 3/6 (-)
Default 1/2 (+), 3/6 (-)
Max Power Per Port
15.4w per port, with a maximum power of 30w per port
15.4w per port, with a maximum power of 30w per port
15.4w per port, with a maximum power of 30w per port
Total PWR
12W
450w
450w
Power Supply
DC 52V/2.3A
AC100-240V 50/60Hz
AC100-240V 50/60Hz
Certification & Warranty
Lightning Protection
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard)
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard)
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~ 1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4- 10(damped oscillation):30A/m 1MHz IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV IEC61000-4- 16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard)
Mechanical Properties
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
Certification
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
Physical Parameter
Operation TEMP /Humidity
-40~+80°C, 5%~90% RH Non condensing
-40~+80°C, 5%~90% RH Non condensing
-40~+80°C, 5%~90% RH Non condensing
Storage TEMP /Humidity
-40~+85°C, 5%~95% RH Non condensing
-40~+85°C, 5%~95% RH Non condensing
-40~+85°C, 5%~95% RH Non condensing
Dimension (L*W*H)
172mm* 145mm*55mm
440mm* 300mm*44mm
440mm* 300mm*44mm
Installation
Desktop, DIN rail
Desktop, 19 inch 1U cabinet installation
Desktop, 19 inch 1U cabinet installation
Network Management Features
L3 Function
Support L2 network management function Supports IPV4 dynamic routing RIPv1/v2、0SPFv2 Supports IPV4/IPV6 static routing/default routing, each supporting a maximum of 128 entries Supports three-layer routing forwarding, supports communication between different network segments and VLANs
Support L3 network management function Supports IPV4 dynamic routing RIPv1/v2、0SPFv2 Supports IPV4/IPV6 static routing/default routing, each supporting a maximum of 128 entries Supports three-layer routing forwarding, supports communication between different network segments and VLANs
Support L3 network management function Supports IPV4 dynamic routing RIPv1/v2、0SPFv2 Supports IPV4/IPV6 static routing/default routing, each supporting a maximum of 128 entries Supports three-layer routing forwarding, supports communication between different network segments and VLANs
Port configuration
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor Traffic statistics
Link Aggregation
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
Static link aggregation LACP Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP
MAC Table
Aging Time Static MAC address Dynamic MAC address management
Aging Time Static MAC address Dynamic MAC address management
Aging Time Static MAC address Dynamic MAC address management
VLAN
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
4094 Active VLANs 4094 VID 802.1Q Tag VLAN Port VLAN Protocol VLAN MAC VLAN Voice VLAN 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
ACL
256ACLs L2, L3 e L4 Time-based ACL
256ACLs L2, L3 e L4 Time-based ACL
256ACLs L2, L3 e L4 Time-based ACL
Spanning tree
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter
Ring Protection
<20ms G.8032 ERPS Ring
<20ms G.8032 ERPS Ring
<20ms G.8032 ERPS Ring
Multicast
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
256 groups IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping Multicast VLAN
QOS
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
port-based CoS 802.1p-based CoS DSCP-based Scheduling algorithms SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port
DHCP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
SNMP v1/v2c/v3 with Full Private MIBs RMON 4 groups WEB (HTTP/HTTPS) CLI (Telnet, Console, SSHv1/v2) Firmware upgrade via console/web/TFTP Configuration Backup/Reload Dual Firmware LLDP
Security Features
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port IsolationLoopback detection
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port IsolationLoopback detection
Port Security MAC address filter ARP Association (Manual, ARP scanning, DHCP snooping) ARP Protection DoS (Denial of Service) Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type; 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication RADIUS Authentication DHCP Filter Guest VLAN SSLv2/SSLv3/TLSv1 SSHv1/SSHv2 Restriction of WEB access based on: IP Address, And. MAC and Port; Port Isolation Loopback detection
Other Features
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
DNS Client DHCP Relay DHCP Client DHCP Snooping DHCP Option 82 SNTP Client UDLD
Maintenance
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Cable Diagnostics Ping SFP DDM(Digital Diagnostics Monitoring) Thermal protection System log (Local and Remote) Memory and CPU Monitoring
Product Resources
- Download Product Datasheet
Order Informations
Device
LM-2404XMGP-IL3
Power Supply
AC100-240V 50/60Hz
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
440mm* 300mm*44mm
Frequently Asked Question (FAQ)
This switch is best used when your network acts as a central hub connecting multiple access switches, buildings, or zones. It is designed for environments where high traffic volume and reliability are critical.
Yes. Its ports, fiber links, and Layer 3 routing are perfect for smart city surveillance. They also support traffic monitoring and public infrastructure networks.
The LM-2404XMGP-IL3 offers higher port density and a larger PoE budget. It is typically used as a core switch, while the 16-port model fits distribution-level roles.
Yes, when installed in appropriate industrial enclosures. Its wide operating temperature range and rugged build support outdoor and semi-outdoor environments.
Absolutely. The LM-2404XMGP-IL3 is built for long-term growth. This lets integrators expand networks easily, so they won't need to redesign the core infrastructure.
