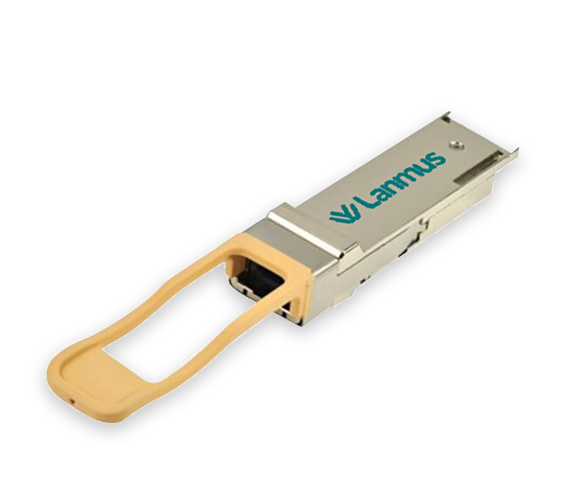

LM-40G-QSFP-SR-MM850
High-performance module for short-range multi-lane data communication and interconnect applications.
Lanmus Accessories (LM-40G-QSFP-SR-MM850)
LM-40G-QSFP-SR-MM850
RoHS Compliant 40Gb/s QSFP+ 850nm 100m & 300m Optical Transceiver
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit
Hightlight Features
- Supports 1.06 to 10.5Gb/s bit rates per Channel
- Four-Channel, 1×12 MPO receptacle
- Hot pluggable QSFP+ form factor
- VCSEL 850 nm array Technology
- Applicable for 100m & 300m on OM3 MMF, 150m & 400m on OM4 MMF.
- Built-in digital diagnostic functions
- Low power consumption, < 1.5W
- Unretimed XLPPI electrical interface
- Operating case temperature: -5°C to 80 °C
Key Specification
Key Specifications
PoE power supply Criterion
IEC60065-2014, GB8898-2011
Humidity
Operating: From 10% to 90% relative humidity (Non-condensing), Storage: From 5% to 95% relative humidity (Non-condensing)
DC 500V
> 8M
Altitude
Up to 5000 meters
Input to Output
AC 3000V 10mA 60S
Storage Temperature
-40°C to +85°C ( -40°C to +60°C)
Electrostatic Discharge (ESD)
GB17626.2-1998/IEC61000-4-2 Air, Discharge: 15KV Class B, Contact Discharge: 8KV Class B
Cooling Method
Free air convection
Weight
500±50g
Drop Test
Drop Height: 1 meter onto a concrete floor, + Drop Points: Sides A, B, edges C, D (refer to Figure 1) + Number of Drops: 1 time per poin- + Performance Criteria: Power supply must remain functional; case must not crack or break
