LMI-HY2008GVP-SFP

LMI-HY2008GVP-SFP

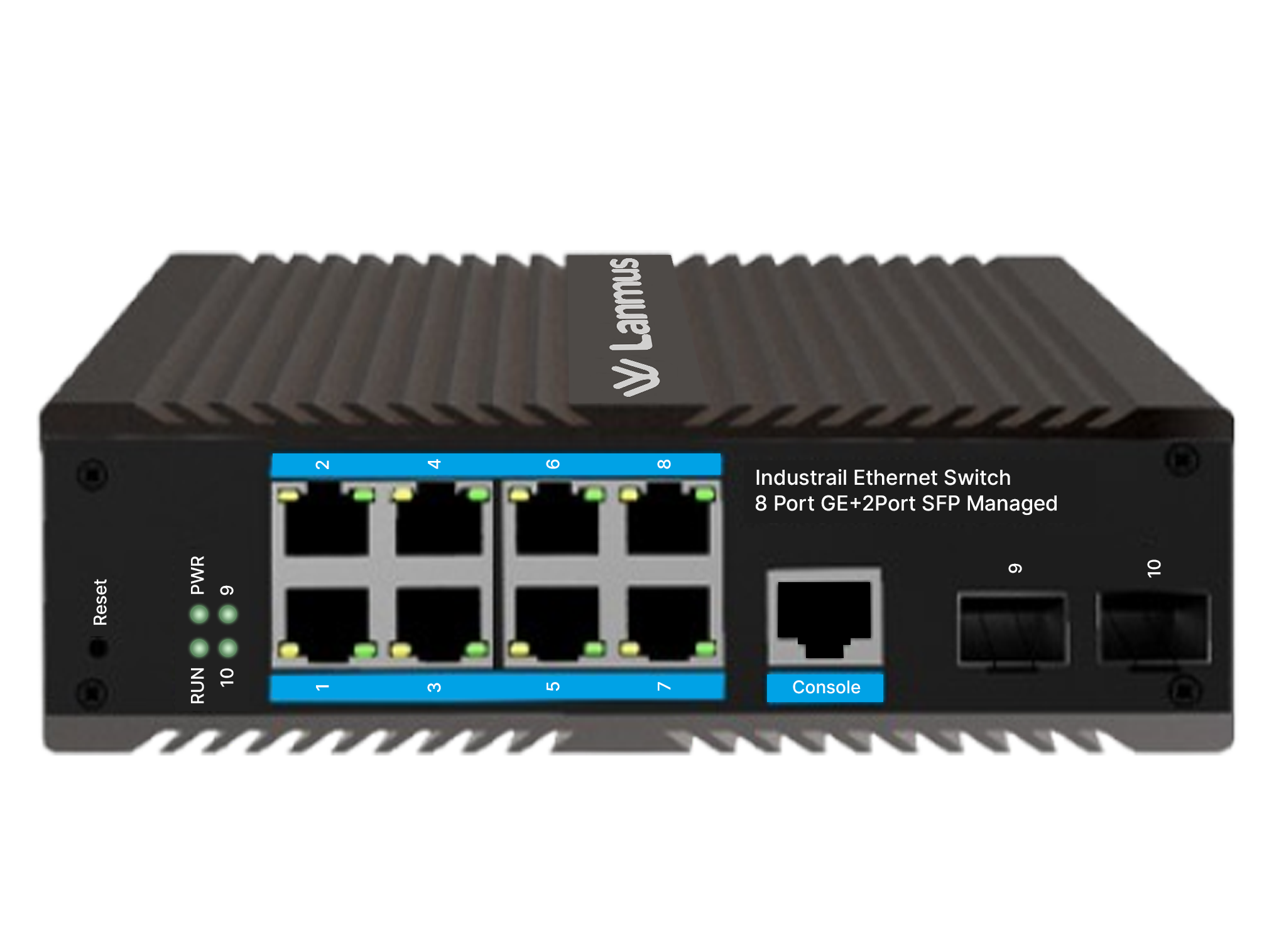

Industrial Ethernet Switch 8 port GE+2 port SFP Managed PoE

Model

LMT-GE-MM850

LMT-MM850

Series

LMT-GE-MM850

LMT-GE-MM850

LMT-GE-MM850

LMT-GE-MM850

Hightlight Features

  • 2* 1/ 10G uplink SFP+ ports
  • 8* 10/ 100/ 1000Base-T PoE ports
  • 1*Console port
  • Port 1-8 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex
  • MDI/MDI-X self-adaption
  • 10BASE-T: Cat3,4,5 UTP(≤100 meters)
  • 100BASE-TX: Cat5 or later UTP(≤100 meters)
  • 1000BASE-T: Cat5e or later UTP(≤100 meters)
  • 1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
  • Support Turbo overclocking 2.5G optical module expansion and ring network
  • Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G);
    Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.

Overview

The LMI-HY2008GVP-SFP is a 10G uplink L3 managed PoE switch independently developed by LANMUS. It has 8*10/100/1000 Base-T PoE  ports and 2*1/10G SFP+ fiber ports. Port 1-8 can support (IEEE802.3af/at standard PoE power supply. with a power supply of 15.4w per port and a maximum power of 30w per port and a total power of 120w) . As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through a network cable to meet the network environment that needs high-density PoE power supply network.

The LMI-HY2008GVP-SFP has  L3  network  management  function,  supports   IPV4/IPV6 management,  dynamic  routing full line-speed for warding,  complete security  protection   mechanism,  perfect ACL/QoS  policy, and  rich VLAN  functions,  easy to manage and maintain.  With   industry-leading ring  network  technology.   It supports a variety of  industrial-grade redundant ring network protocols, and each port can form a ring network, supporting chain ring network, starring network, double star ring network, ring network,   tangent network ring network, inter secting ring network, coupled ring network, self-healing within ERPS <20ms of the ring network. The switches series has high reliability, high security, and   high   manageability,  ensures  reliable transmission of key data,  supports   remote   management. The product completely follows the industrial product design and materials. The shell is made of aluminum alloy material to enhance heat dissipation. It has excellent adaptability to the  industrial  site  environment  (including mechanical  stability,  climate environment  adaptability, electromagnetic environment adaptability, etc.). Protection level reachesIP40,3years  warranty. It is suitable for campus, hotel and enterprise Campus network access, convergence and core application scenarios.

Gigabit access, 10G fiber uplink

  • Supports Gigabit Ethernet port and 10G SFP+ port combination, which enables users   to flexibly build networking to meet the needs of various scenarios.
  • Support non-blocking wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

Intelligent PoE power supply

  • 8* 10/ 100/ 1000Base-T ports can support PoE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
  • IEEE802.3af/at PoE standard, without damaging non-PoE devices.
  • Priority system for PoE port, it will supply power to the high priority level port first when   the power budget is insufficient and avoid over work of the device.
  • PoE network management, realize PoE port power allocation, priority setting, port  power status viewing, time scheduling, etc.

Security

  • 802. 1X authentication.
  • Port isolation, storm control.
  • IP-MAC-VLAN-Port binding.

Strong business processing capability

  • IEEE802. 1Q VLAN, flexible VLAN division, Voice VLAN, and Q-in-Q configuration.
  • QoS, Priority mode based on 802. 1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
  • ALC, filter data packet through configuring matching rules, processing operation &time permission, and provide flexible and safe access control.
  • IGMP V1/V2 and IGMP Snooping.
  • ERPS/STP/RSTP/MSTP.
  • Static and dynamic aggregation.

Stable and reliable

  • Low power consumption, with fan, Aluminum alloy shell.
  • Self-developed power supply, high redundancy design, providing a long term andstable PoE power output.
  • CCC,CE, FCC, RoHS.
  • The user-friendly panel can show the device status through the LED indicator of PWR,  SYS, Link, L/A , PoE.

Easy operation and maintenance management

  • Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
  • HTTPS, SSLV3, and SSHV1/V2.
  • RMON, system log, LLDP, and port traffic statistics.
  • CPU monitoring, memory monitoring, Ping test, and cable diagnose.

Specification

Model

LMI-HY2008GVP-SFP

Interface Characteristics

Fixed Port

2* 1/ 10G uplink SFP+ ports
8* 10/ 100/ 1000Base-T PoE ports
1*Console port

Ethernet Port

Port 1-8 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex
MDI/MDI-X self-adaption

Twisted Pair

Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meters)
100BASE-TX: Cat5 or later UTP(≤100 meters)
1000BASE-T: Cat5e or later UTP(≤100 meters)

Optical Fiber Port

1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Fiber Port Expansion

Support Turbo overclocking 2.5G optical module expansion and ring network

Optical Cable/ Distance

Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G);
Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.

Chip Parameter

Network

Management Type

L3

Ring network

Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX   IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae
10GBase-LR/SR, IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

56Gbps

Buffer Memory

41.6Mpps

MAC

16K

LED Indicator

PowerIndicatorLight

PWR:1 Green

System indicator

RUN:1 Green



10G Fiber Indicator Light

9-10:1 Green (Link,SDFED)

On the  seat

1-8 Yellow:Indicate PoE

1-8 Green: Indicates network working status

Reset Switch

Yes, Press and hold the reset switch for 5s and release it to restore the factory settings

Power







  Power Supply Pin

Default 1/2 (+), 3/6 (-)

  Max Power Per Port

15.4w per port, with a maximum power of 30w per port

  Total PWR

12W

   Power Supply

DC 52V/2.3A

Certification & Warranty

Lightning

Protection

Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~ 1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to
3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4- 10(damped oscillation):30A/m  1MHz
IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4- 16(common-mode transmission):30V; 300V, 1s
FCC Part 15/CISPR22(EN55022):Class B
IEC61000-6-2(Common Industrial Standard)

Mechanical

Properties

IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)

Certification

CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B,
RoHS

Physical Parameter

Operation TEMP /Humidity

-40~+80°C, 5%~90% RH Non condensing

Storage TEMP /Humidity

-40~+85°C, 5%~95% RH Non condensing

Dimension (L*W*H)

172mm* 145mm*55mm

Installation

Desktop, DIN rail

Network Management Features

  L3 Function

Support L3 network management function
Supports IPV4 dynamic routing RIPv1/v2、0SPFv2
Supports IPV4/IPV6 static routing/default routing, each supporting a maximum of 128 entries
Supports three-layer routing forwarding, supports communication between different network segments and VLANs

Port configuration

Auto-negotiation
Flow Control
Port Mirror: TX/RX/BOTH; Many-to-1 monitor
Traffic statistics

Link Aggregation

Static link aggregation
LACP
Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP

   MAC Table

Aging Time
Static MAC address
Dynamic MAC address management

VLAN

4094 Active VLANs
4094 VID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Voice VLAN
802.1ad Q-in-Q tunneling Private
VLAN (Protected port) GARP/GVRP

ACL

256ACLs
L2, L3 e L4
Time-based ACL

Spanning tree

802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple
Spanning Tree Protocol (MSTP) Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard BPDU
Filter

 Ring Protection

<20ms G.8032 ERPS Ring

Multicast

256 groups
IGMP v1/v2/v3 Snooping, Fast Leave MLD
Snooping
Multicast VLAN

  QOS

port-based
CoS 802.1p-based CoS
DSCP-based
Scheduling algorithms SP, WRR, SP+WRR
Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port

DHCP

SNMP v1/v2c/v3 with Full Private MIBs RMON 4
groups
WEB (HTTP/HTTPS)
CLI (Telnet, Console, SSHv1/v2) Firmware
upgrade via console/web/TFTP Configuration
Backup/Reload
Dual Firmware
LLDP

Security Features

Port Security MAC
address filter
ARP Association (Manual, ARP scanning, DHCP snooping) ARP
Protection
DoS (Denial of Service)
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type;
802.1x Authentication (port-based e MAC-based)
TACACS/TACACS+ Authentication
RADIUS Authentication
DHCP Filter
Guest VLAN
SSLv2/SSLv3/TLSv1
SSHv1/SSHv2
Restriction of WEB access based on: IP Address, And. MAC and Port; Port IsolationLoopback detection

   Other Features

DNS Client DHCP
Relay DHCP Client
DHCP Snooping
DHCP Option 82
SNTP Client
UDLD

Maintenance

Cable Diagnostics
Ping
SFP DDM(Digital Diagnostics Monitoring) Thermal
protection
System log (Local and Remote)
Memory and CPU Monitoring
