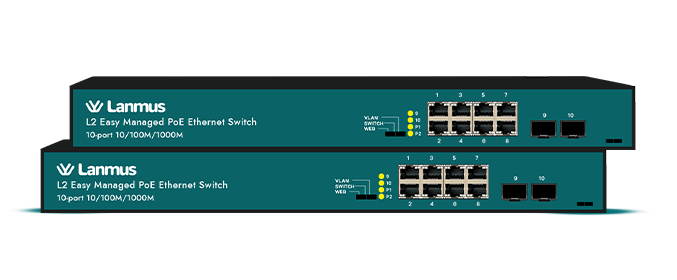

LM-802FEMGP
The LM-802FEMGP is an Easy Managed (Smart Managed) switch. It’s ideal for small networks that want more control than unmanaged switches. However, it doesn’t have the complex features found in enterprise models.
The LM-802FEMGP is different from unmanaged switches. It lets you monitor and control traffic easily using a simple web interface. It helps vendors, installers, and small IT teams manage devices easily. No advanced networking skills are needed.

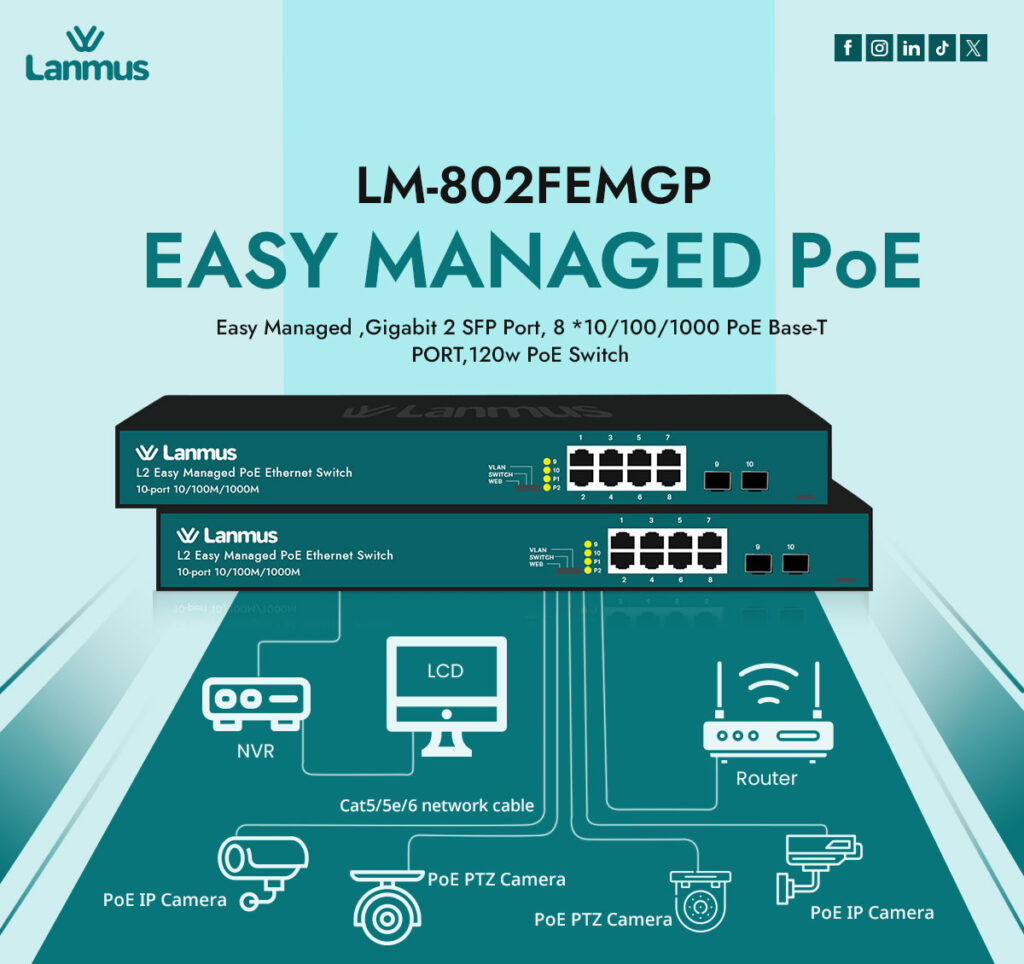

This switch is perfect for office computers, CCTV cameras, Wi-Fi access points, and basic IP devices. It provides steady connectivity and smooth traffic flow. This makes it ideal for small offices, retail shops, clinics, schools, and CCTV projects in the UAE.
Lanmus Ethernet Easy Managed (LM-802FEMGP)
8 Port 10/100/1000 Base-T, 8GE+2SFP Uplink Ports
Model
LMT-GE-MM850
LMT-MM850
Series
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
LMT-GE-MM850
Models
Gigabit 2 Ports
Hightlight Features
- Hardware Type: IP40-rated steel alloy Gigabit PoE fiber switch.
- Port Type: It features eight 10/100/1000Base-T PoE ports and two 1000Base-X SFP slots.
- Layer: Layer 2 managed switch supporting STP, RSTP, and MSTP redundancy.
- VLAN Support: 4094 active VLANs, including 802.1Q, Voice, and Port-based types.
- QoS: 802.1p CoS and DSCP using SP or WRR scheduling.
- Management: Web, SNMP, CLI, or a physical toggle switch.
- Security: 802.1X authentication, ACLs, and IP-MAC-VLAN-Port binding.
- Operating Environment: -20°C and +55°C with 5% to 90% humidity.
- Warranty: 3-year
Key Specifications
Product Information
| Product Category | L2+ Managed PoE Ethernet Fiber Switch |
| Hardware Specifications | 8GE PoE + 2SFP |
| Warranty | 3 years |
Port Specifications
| Total number of optical ports | 2 |
| Number of 1GE combo ports | 0 |
| Number of 1GE SFP ports | 2 |
| Number of 10GE SFP+ ports | 0 |
| Number of 10/100BASE-T ports | 0 |
| Number of 10/100/1000BASE-T ports | 8 |
| Number of 10/100/1000/2500BASE-T ports | 0 |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | 0 |
Power Supply
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 (IEEE 802.3af/at) |
| Number of PoE/PoE+/PoE++ Out ports | 0 |
| PoE budget | 150W |
| PoE power pins | 1/2(+), 3/6(-) |
System Specs
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps |
Environment
| MTBF | Not specified in document |
| Operating temperature | -20°C to 55°C |
| Altitude | Not specified in document |
| Surge protection | 6KV (8/20us) |
Software Specifications
| PoE watchdog | Supported (PD alive check) |
| Jumbo frame length (MTU) | 9.6K |
Security
| Port isolation | Supported |
| Broadcast storm control | Supported |
Understanding LM-802FEMGP
The LM-802FEMGP acts as a simple control point for small networks. It allows users to separate traffic, prioritize important devices, and monitor connected ports.
Think of it as an upgrade from an unmanaged switch. You won’t have complex routing or command-line access. But you will have visibility and control where it counts.
This model is suitable for:
- Small offices and branch offices
- Retail shops and showrooms
- Clinics and educational centers
- CCTV and access point installations
- Vendors handling quick-deployment projects
Key Features
8 Ethernet Ports: Reliable connectivity for PCs, printers, IP cameras, and access points.
Easy Web Management: You can set up VLANs, check ports, and change settings easily using a simple browser interface.
VLAN Support: Keep office data separate from CCTV and guest networks. This helps boost performance and security.
Quality of Service (QoS): Prioritize CCTV video and voice traffic to ensure smooth operation.
Compact Design: Ideal for small racks, cabinets, or limited installation spaces.
Plug-and-Play Friendly: Quick deployment with minimal configuration effort.
Performance & Real-World Behavior
The LM-802FEMGP is built for light to medium network loads. VLANs reduce unnecessary traffic, while QoS ensures important devices get priority bandwidth.
It is not intended for heavy enterprise routing or large-scale deployments. It shines in places where simplicity, reliability, and quick setup are key. Advanced features are less important here.
Applications & Use Cases
- Small Offices: Connect computers, printers, and access points
- Retail Stores: Manage POS systems, CCTV, and Wi-Fi
- Clinics & Schools: Separate staff and device traffic
- CCTV Installations: Maintain stable video streams
- Vendors & Installers: Fast deployment for small projects
Installation & Maintenance Insights.
- Placement: Install in a clean, ventilated indoor space
- Cable Management: Label cables for easier troubleshooting
- Web Monitoring: Check port status regularly
- Traffic Review: Adjust QoS if video or voice traffic increases
- Expansion Planning: Upgrade to full managed switches as networks grow
Why Choose LM-802FEMGP
- Easy upgrade from unmanaged switches
- Simple management without networking complexity
- Cost-effective for small projects
- Stable performance for CCTV and office use
- Compatible with third-party devices
- Trusted LANMUS quality and support
Availability in Dubai – Order LM-802FEMGP from LANMUS
The LM-802FEMGP Easy Managed Switch is available through LANMUS for projects across Dubai and the UAE. If you need one unit or a bulk supply for vendor deployments, LANMUS offers reliable availability and support.
For pricing, project inquiries, or technical guidance, contact:[email protected]
Features
Product Comparision
24 *10/100/1000 PoE BaseT
4*100/1000Base-X
PoE ports
Max. PoE budget
Switching capacity
Forwarding rate
MAC address table
VLAN
Dimensions (W x D x H)
Weight (With package)
Loop prevention
Flow control
Port isolation
Broadcast storm suppression
Cloud management
Power consumption
Power supply
Fan
Port surge
Operating temperature
Operating humidity
MTBF
Warranty
LM-2404FMGP-L2
24
4
4
--
56Gbps
8K
--
440mm* 300mm*44mm
--
--
AC:100-240V50/60Hz)
--
-20~+55°C
5%~90% RH
--
3 years
LM-4804XFMGP-L3
48
4
4
--
176Gbps
32K
--
440mm* 300mm*44mm
--
--
AC100-240V 50/60Hz
--
-20~+55°C
5%~90% RH
--
3 years
Product Description
LM-802FEMGP
Interface Characteristics
Fixed Port
8 Port 10/100/1000 Base-T, 8GE+2SFP Uplink Ports
Ethernet Port
Port 1-8 support 10/ 100/ 1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
SFP Slot Port
Gigabit SFP optical fiber interface, default not include optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Wavelength/Distance
multimode: 850nm 0~550M,1310nm 0~2KM single mode: 1310nm 0~40KM ，1550nm 0~120KM
Chip Parameter
Network Management Type
L2 (WEB management)
Ring network
Toggle switch:WEB network management mode/VLAN isolation mode
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100BaseTX IEEE802.3ab 1000Base-X, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
20Gbps
Buffer Memory
14.88Mpps
MAC
8K
Reset Switch
Press and hold the reset switch for 10s and release it to restore the factory settings
PoE & Power Sup
PoE Por
Port 1 to 8 IEEE802.3af/at
Power Supply Pin
Default 1/2 (+), 3/6 (-)
Max Power Per Port
15.4w per port, with a maximum power of 30w per port
Total PWR
120w/ (AC100-240V)
Power Consumption
Standby<6w, Full load<120w
Power Supply
52V2.3A 120w
Certification & Warranty
Power surge protection
Lightning protection: 6KV 8/20us, Protection level: IP40
Network interface surge protection
IEC 61000-4-5 Level 4（4KV）（10/700us）
Mechanical Properties
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall)
Certification
CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS
Physical Parameter
Operation TEMP /Humidity
-40~+75°C;5%~90% RH Non condensing
Storage TEMP /Humidity
-40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H)
330mm* 172mm*44mm
Installation
Desktop
Product Resources
- Download Product Datasheet
Order Informations
Device
LM-802FEMGP
Power Supply
52V2.3A 120w
Quick Start Guide
1
Warranty Card
1
Dimension (w x d x h)
330mm* 172mm*44mm
Frequently Asked Question (FAQ)
Yes. The LM-802FEMGP is for users who need simple network control. It avoids the hassle of complex setups. Its web-based interface uses simple menus and clear options, making it easy to manage ports, traffic, and basic settings. Small business owners, shop managers, and junior technicians can use it easily. They don’t need advanced networking skills. This makes it a practical choice for environments where full-time IT staff are not available.
The switch keeps connectivity steady. It controls how traffic moves between connected devices. The LM-802FEMGP gives priority to important devices. This means not all devices compete equally for bandwidth. This prevents network slowdowns caused by heavy usage from a single device. As a result, CCTV feeds, office systems, and internet access remain steady throughout the day.
Yes. The LM-802FEMGP works well in environments where different types of devices share the same network. It supports computers, IP cameras, access points, printers, and POS systems from various brands. It uses standard networking protocols. Vendors and installers can easily integrate it into existing setups. This avoids any compatibility issues. This flexibility is useful in retail shops and offices that already use third-party hardware.
You should consider upgrading when your network grows beyond basic needs. For strong security and easy command-line management, pick a full Layer 2 or Layer 3 managed switch. It’s also good for traffic analysis and inter-VLAN routing. The LM-802FEMGP is best for entry-level management. In contrast, LANMUS full managed switches handle larger and more complex networks.
Yes. Many vendors prefer the LM-802FEMGP for small-scale projects because it balances cost and control. It reduces installation time, minimizes configuration errors, and lowers support calls after deployment. This helps vendors provide reliable networks fast and keep project costs.
