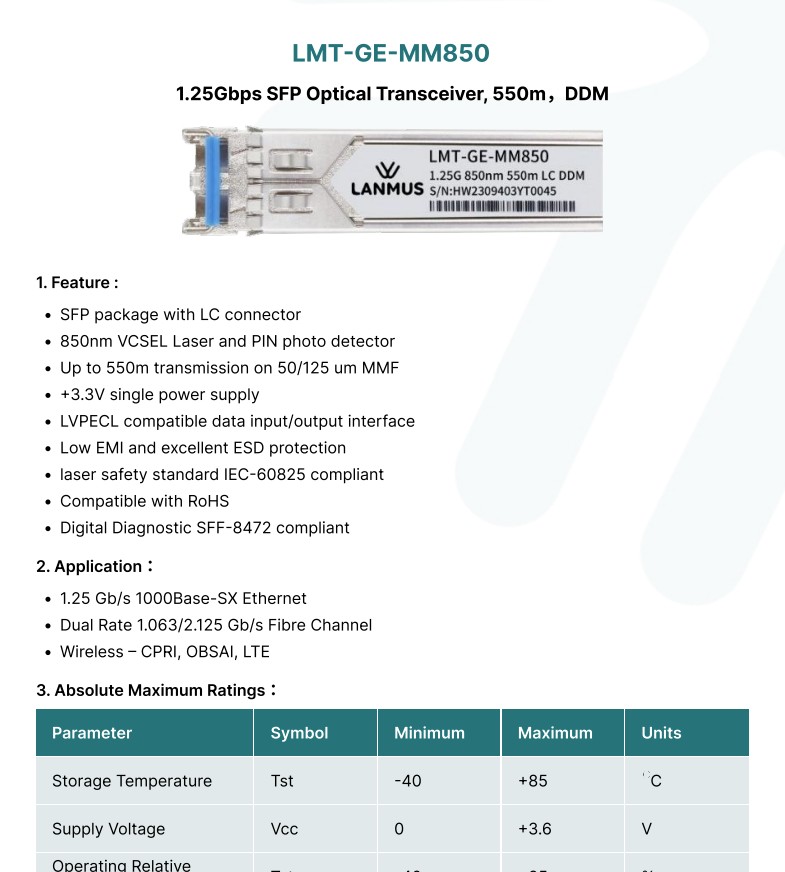

LMT-GE-MM850
SFP package with LC connecto4, 850nm VCSEL Laser and PIN photo detecto4
Lanmus Accessories (LMT-GE-MM850)
LMT-GE-MM850
1.25Gbps SFP Optical Transceiver, 550m，DDM
Models
SFP+ Transceiver
SFP Optical Transceiver
RJ-45 SFP Transceiver
SFP, 1.25Gbps
Hightlight Features
- SFP package with LC connector
- 850nm VCSEL Laser and PIN photo detector
- Up to 550m transmission on 50/125 um MMF
- +3.3V single power supply
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- laser safety standard IEC-60825 compliant
- Compatible with RoHS
- Digital Diagnostic SFF-8472 compliant

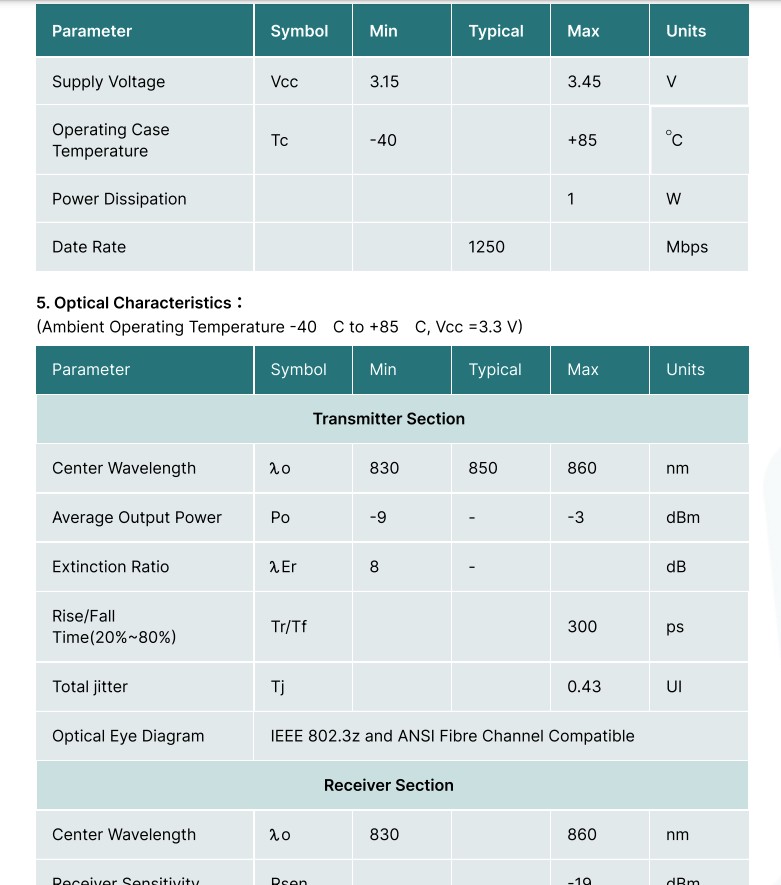

Key Specification
Key Specifications
Basic
Model
LMT-XG-T
LMT-GE-MM850
LMT-GE-T
LMT-GE-SM1310-20
Standard
Short wavelength
Long wavelength/ Long distance
Long wavelength/ Long distance
Long wavelength/ Long distance
Rate
1000 Mbps
1000 Mbps
1000 Mbps
1000 Mbps
Wavelength (nm)
850
850
850
850
Fiber Type
MMF
MMF
MMF
MMF
DDM (Yes/No)
Yes
Yes
Yes
Yes
Transmitter Power (dBm)
Min.
Max.
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
Transmitter Power (dBm)
Min.
Max.
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
–9.5
Connector Type
L/C
L/C
L/C
L/C
Core Size (μm)
50/125
50/125
50/125
50/125
Max. Cabling Distance
550 m (1640.42 ft)
550 m (1640.42 ft)
550 m (1640.42 ft)
550 m (1640.42 ft)
Operating Temperature
–40 to +85°C (–40 to +185°F)
Storage Temperature
–40 to +85°C (–40 to +185°F)
Relative Humidity
–40 to +85°C (–40 to +185°F)
Diagram
Recommended Application Circuit
Outline Dimensions (mm)
